ParkZone PKZ4400 - Manual (Page 3)

4 5

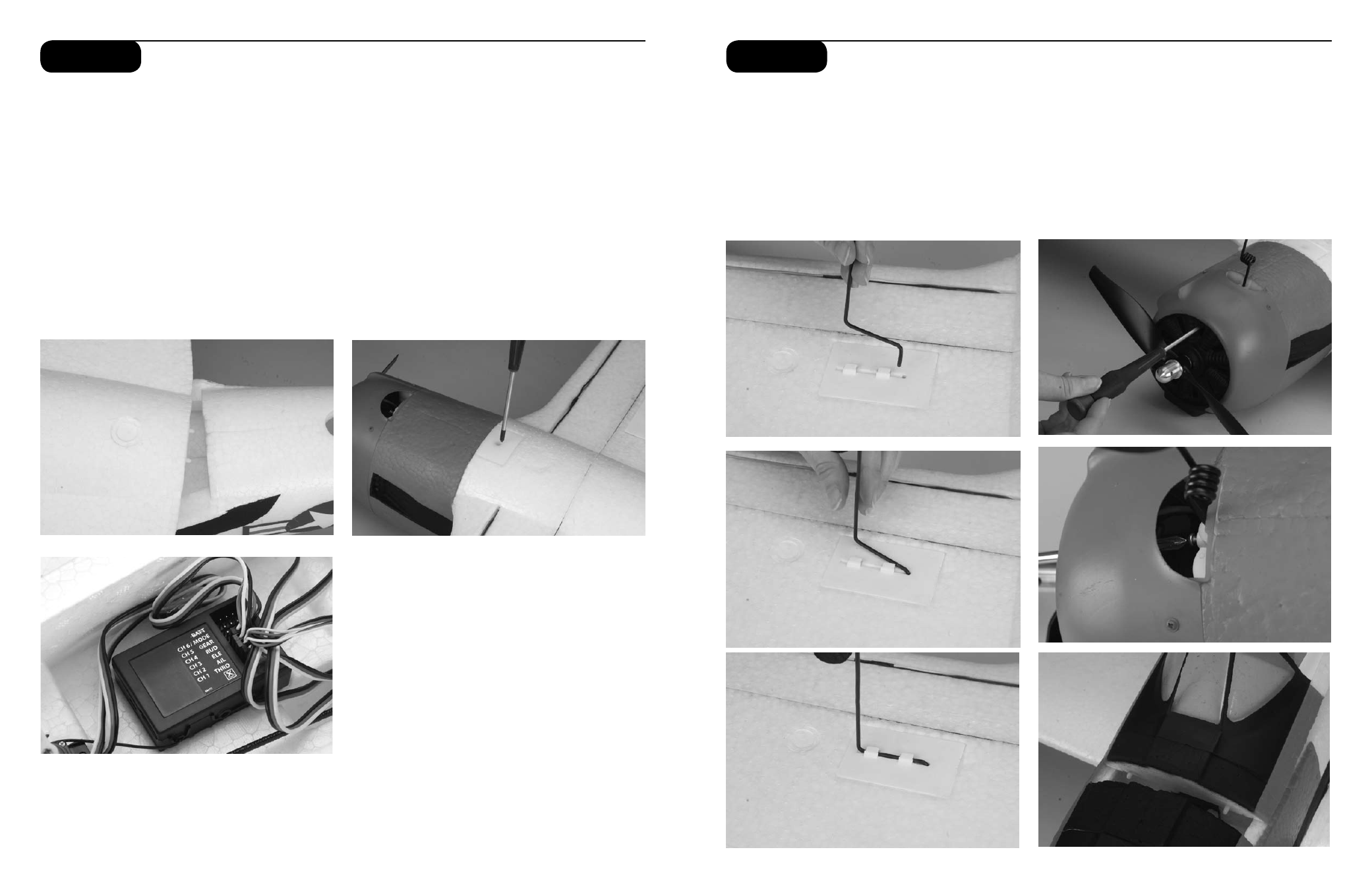

Attaching the Wing
In order to attach the wing of your T-28, please follow
these simple instructions:
1. Locate the wing securing screw in the box.
2. Turn over the fuselage so you are looking at the
bottom. Do the same with the wing.
3. Route the aileron leads through the access hole in
the bottom of the fuselage.
4. Carefully align the two locator pins on the front of
the wing into the two small holes in the front of the
fuselage.
5. Slide the aileron leads inside the fuselage so that
they will not become pinched in between the wing
and the fuselage when securing the wing.
Installing the Landing Gear
1. Install main landing gear by inserting into locator
hole in the wing. Swivel landing gear toward the
retaining clips and gently snap into place.
2. Insert the nose gear into the steering assembly on
the under side of the cowl with the flat spot facing
forward.
6. Slide the bottom of the leading edge of the wing
into the fuselage as shown, making certain it is
perfectly centered. This must be done correctly
in order to allow the screw to thread into the
fuselage. Once you are certain the wing is
centered, tighten the screw to secure the wing.
7. The wing is correctly installed when no gap exists
between the wing and fillet.
8. Gently pull up on the rear of the canopy hatch to
remove and set aside.
9. Connect the aileron leads to the pre-installed
Y-harness, noting proper orientation. The servo
leads are polarized to fit one way.
3. Align the retaining screw with the flat spot on the
cowl. The retaining screw should be visible through
the front of the cowl.
4. Using a Phillips screwdriver, tighten the retaining
screw. The retaining screw should be accessible
through the front of the cowl, however, you may
choose to remove the cowl for easier access.
5. Reposition the T-28 so that it is resting on the
landing gear.
Step 4 Step 3
