ParkZone PKZ4175 - Manual (Page 8)

8

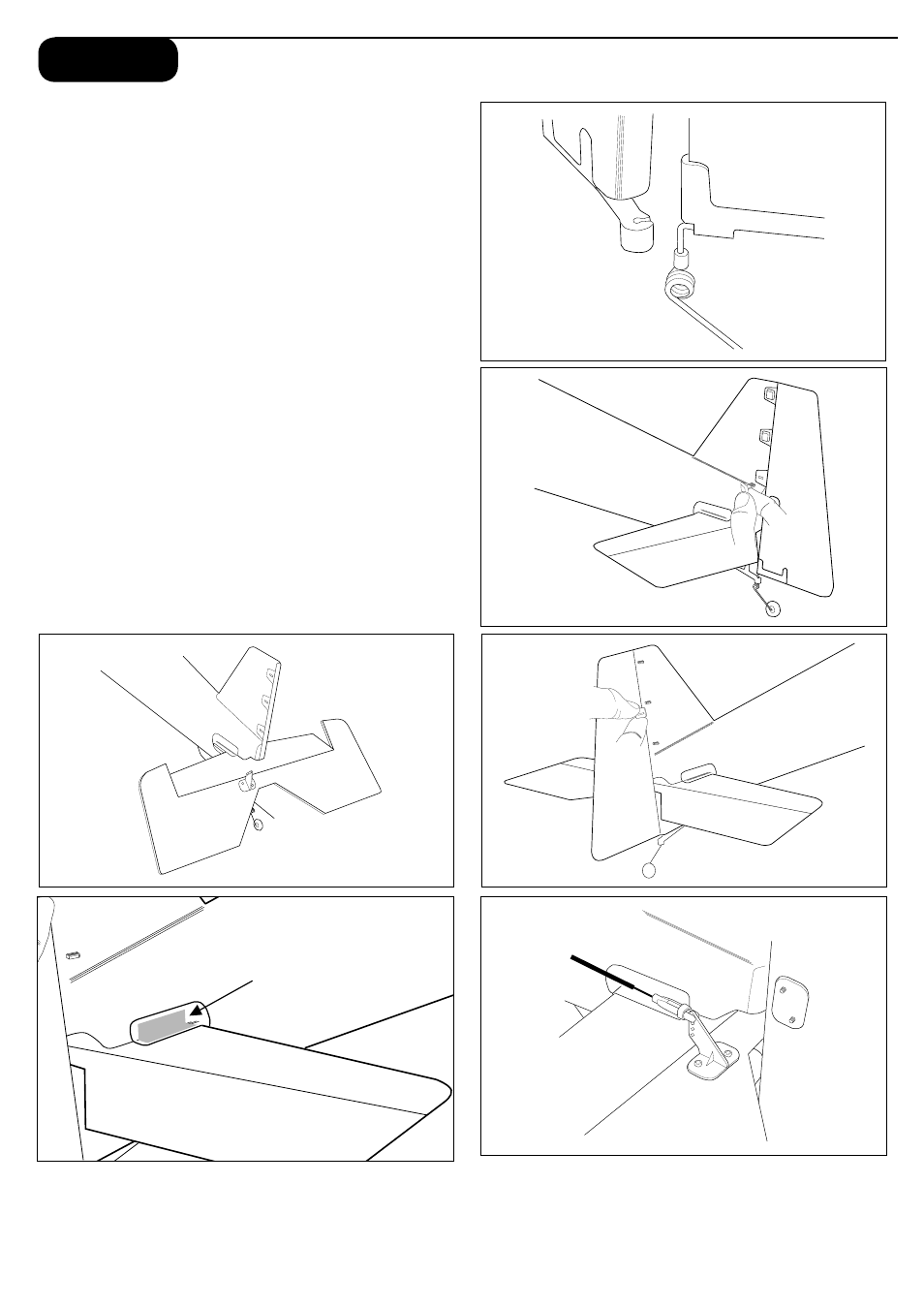

Attaching the Horizontal Stabilizer and Rudder
1. Locate horizontal stab.
2. Carefully slide horizontal stab into fuselage, making
sure control surface horn is on top.
3. Use included strips (4 pieces) of clear tape to secure
stab to tail fillet. You should use 1 strip for top and
bottom of each side.
4. Locate rudder. Carefully snap tail wheel wire into the
clip on bottom of fuse as shown.
5. Use the three pins that are supplied to connect
rudder to stab, as shown. Do this by pushing pins
in carefully.
6. Install keepers on backside to secure pins
as shown.
7. Attach rudder and elevator pushrods to respective
control horns (outer holes of control horns for both).
NOTE: It may be necessary to re-trim control
surfaces prior to flight.
Apply Tape
Appliquer l’adhésif
Bringen Sie das Tape an
Applicare il nastro
Aplique cinta
Step 2
Stade 2
Schritt 2
Passo 2
Paso 2
Step 4
Stade 4
Schritt 4
Passo 4
Paso 4
Step 5
Stade 5
Schritt 5
Passo 5
Paso 5
Step 6
Stade 6
Schritt 6
Passo 6
Paso 6
Step 7
Stade 7
Schritt 7
Passo 7
Paso 7
Step 4
Step 3
Stade 3
Schritt 3
Passo 3
Paso 3
