M62 USER MANUAL
Hardware Installation
Connect the Handset and Power Adapter to the Phone:
After unpacking the box, connect the handset to the curly handset cord and then
connect the other end of the curly handset cord to the port marked HAND with the handset
icon on the bottom of the M62. Then connect the included power adapter to the port on
the bottom of the phone marked 5VDC. Please make sure you use the right power
adapter. It will have a label showing 5V and 2A. In some cases, power will be provided
from your network’s Ethernet switches and you will not need to use the included power
adapter. Please check with your network or site administrator for more details on whether
your network supports PoE. And the PoE power specification is compliant IEEE802.3af

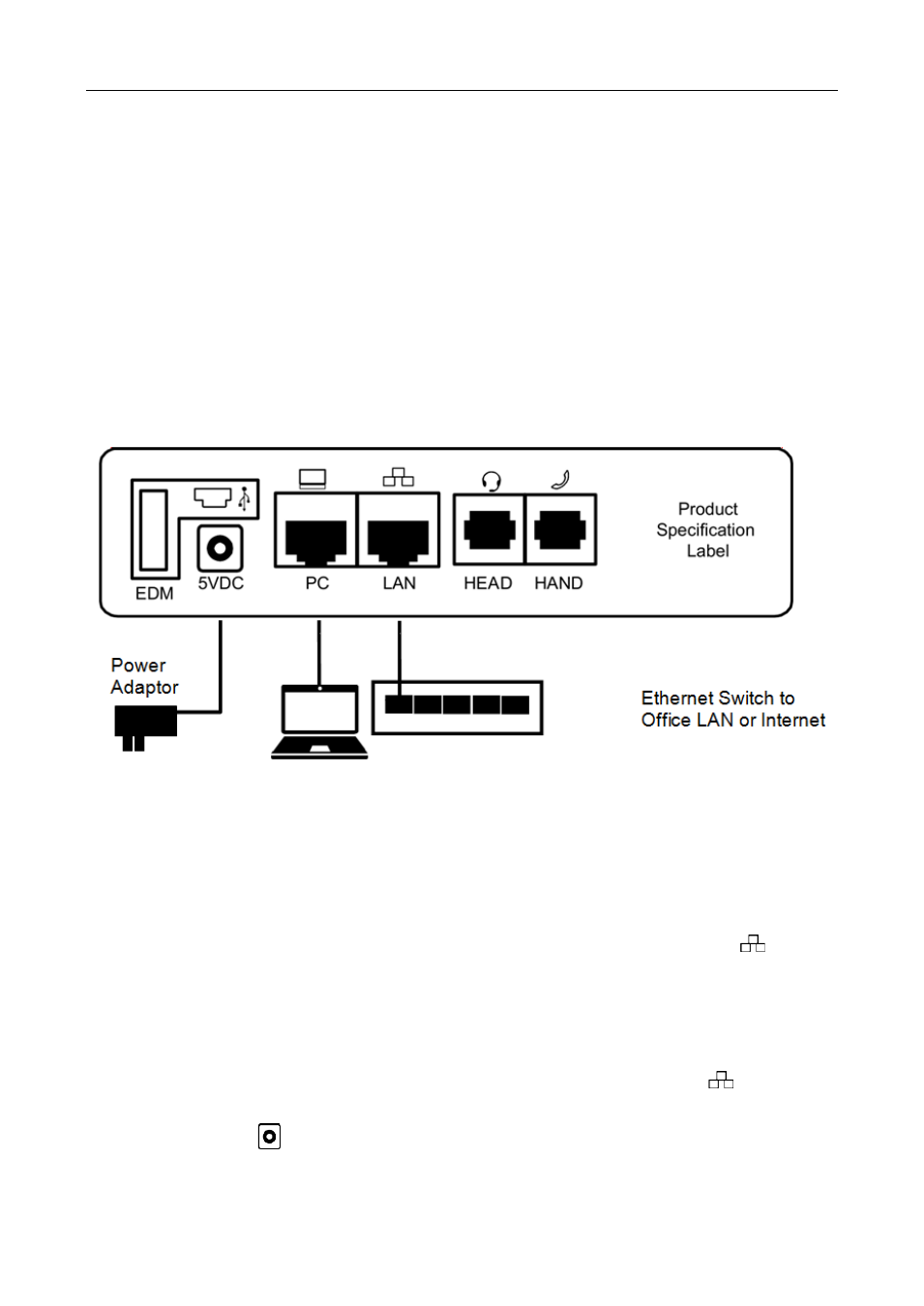

with Class 2 level. Please review the following diagram for more assistance.
Connect the Cables:
Then you can find the connection ports on the rear panel of the phone. Please get two
Ethernet CAT-5 cables and follow the installation steps below:
(1)If your Ethernet Switch supports PoE:
Please connect an Ethernet cable to the Switch port from the LAN port of the
M62. Then you will see the phone LEDs and buttons light up momentarily and the
phone will boot.
(2)If your Ethernet Switch doesn’t support PoE:
Please connect an Ethernet cable to the Switch port from the LAN port of the M62.
Plug in the included power adaptor to the wall power outlet then plug the barrel plug to
the power port on the back of the phone. You should see the phone LEDs and
buttons light up momentarily and the phone will boot.
