30. Connect the fuel level sender wires and the
white connector on the fuel pump harness to
the connector on the top of the module.
29. Install the white connector onto the fuel pump
wiring harness making sure the terminals are
fully seated into the connector
Page 7 of 9

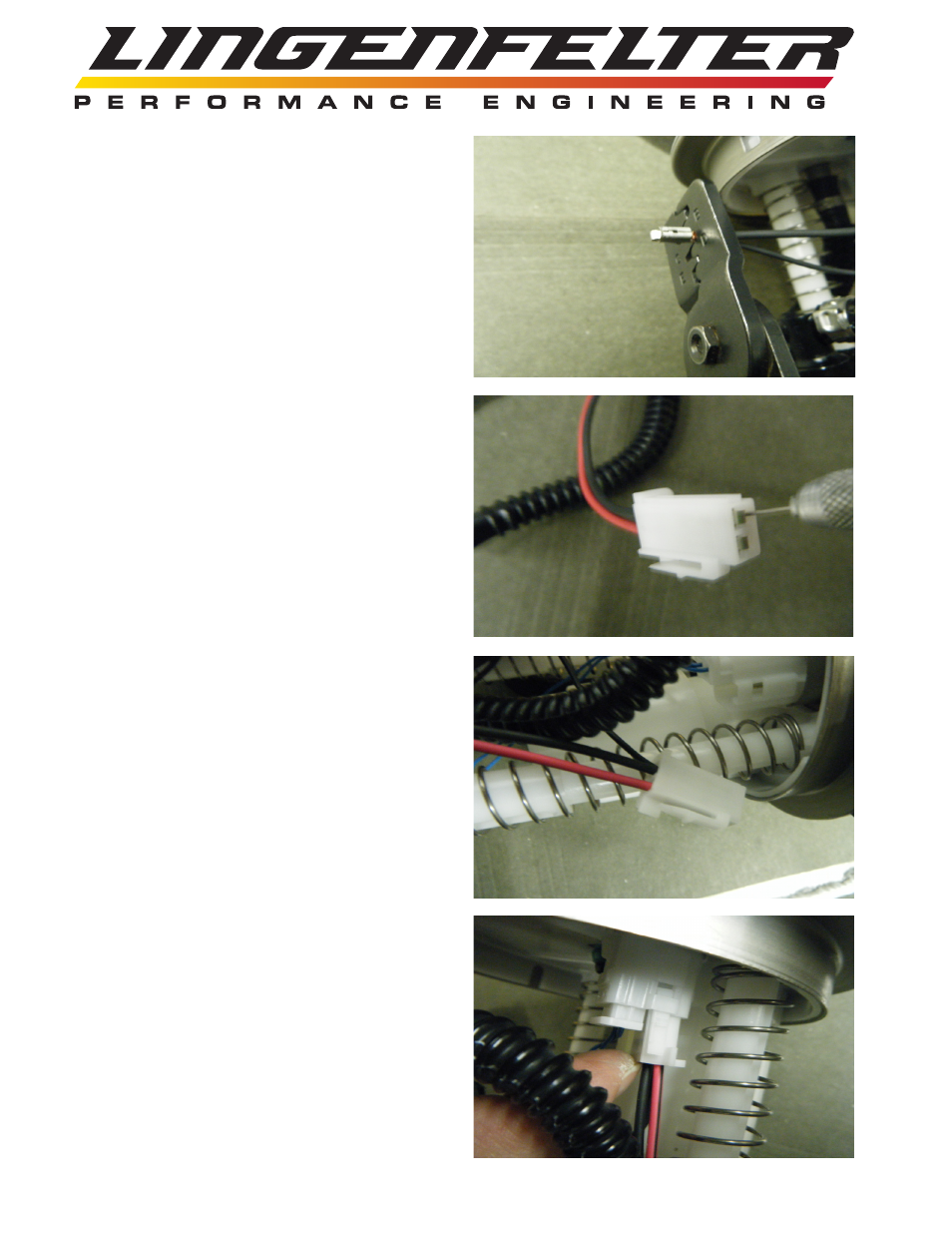

25. Strip roughly 1/4” off of the end of the small
static drain wire and both wires of the fuel
pump wire harness.
26. Using good quality terminal crimping tool,
crimp one of the supplied terminals onto the
small static drain wire along with the black
wire of the fuel pump wiring harness.
27. Crimp the remaining terminal to the red wire
of the fuel pump wiring harness.
28. Using a pin tool remove the white connector
from the original fuel pump wires. Note which
wire is in which cavity (Red should be closest
to the latch)
