Lingenfelter L710111005 Trailblazer SS & SSR E85 High Flow Fuel Pump Upgrade Kit v1.5 User Manual
Page 6

15. Install the barbed outlet fitting of the high flow
fuel pump.
16. Slide an Oetiker clamp over the fuel line and
clamp the fuel line to the fuel pump.
17. Install the fuel inlet sock to the bottom of the
high flow fuel pump. You will need to trim the
plastic on top of the sock in order to clear the
ridges on bottom of the fuel pump.
Page 5 of 9

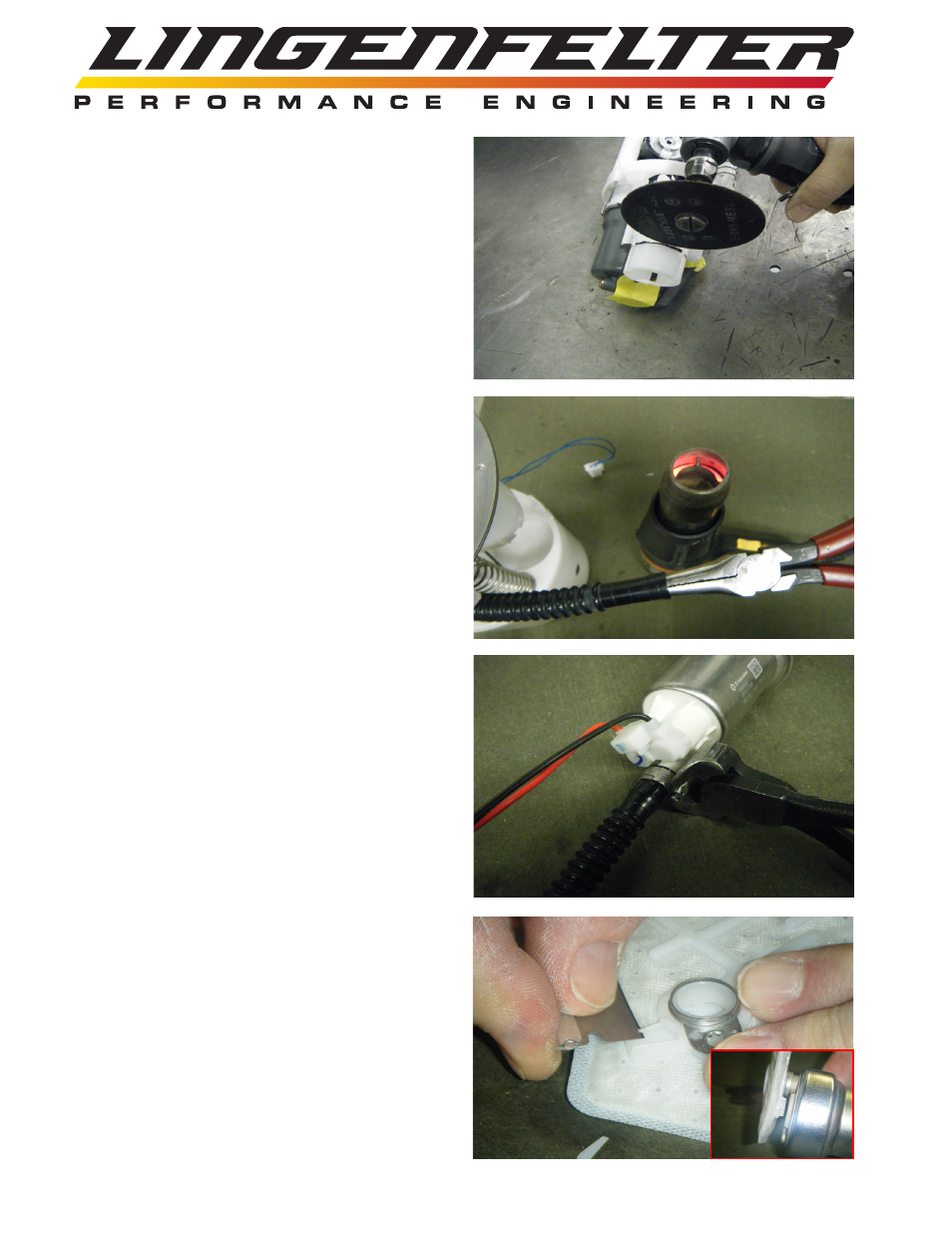

12. Using a die grinder or Dremel tool with a cut-
off wheel, cut the bottom inch off of the pump
mounting sleeve.
13. Remove any burrs or loose plastic. For best
results use compressed air to blow off the
module.
14. Using a heat gun and pair of needle nose
pliers, expand one end of the new fuel line.
Warm and expand the end of the fuel line just
enough to fit over the fuel pump.
WARNING: Make sure not to overheat or
otherwise damage the fuel line, as doing so could
cause the fuel line to leak.
