41. Push the new fuel pump’s outlet neck into the modified module (the O-ring should hold the
spacer in place). When the pump is fully seated the pump’s black electrical connector should be
three-quarters the way up the small window, as shown in Figure 3. Make sure that the fuel pump is
setting straight and not setting crooked.
42. Install the fuel sock spacer onto the bottom of the pump so that the slot of the spacer is facing the
pump and intersects the plastic rib of the fuel pump, as shown in Figure 4. Press the included fuel
pump sock on the new fuel pump, ensuring it will not interfere with the sides of the canister once
installed (this is only important for the portion of the sock directly underneath the pump, as the other
portion of the sock will flex to allow for canister installation). Take care during this step, as the sock
is not easily removed once installed.
43. Reinstall the black plastic canister-fill
valve. Slide the canister back over the
assembly, ensuring all snap retainers are
properly seated.
44. Reinstall all wires disconnected from
the top of the pump and the bottom of the
upper module portion.

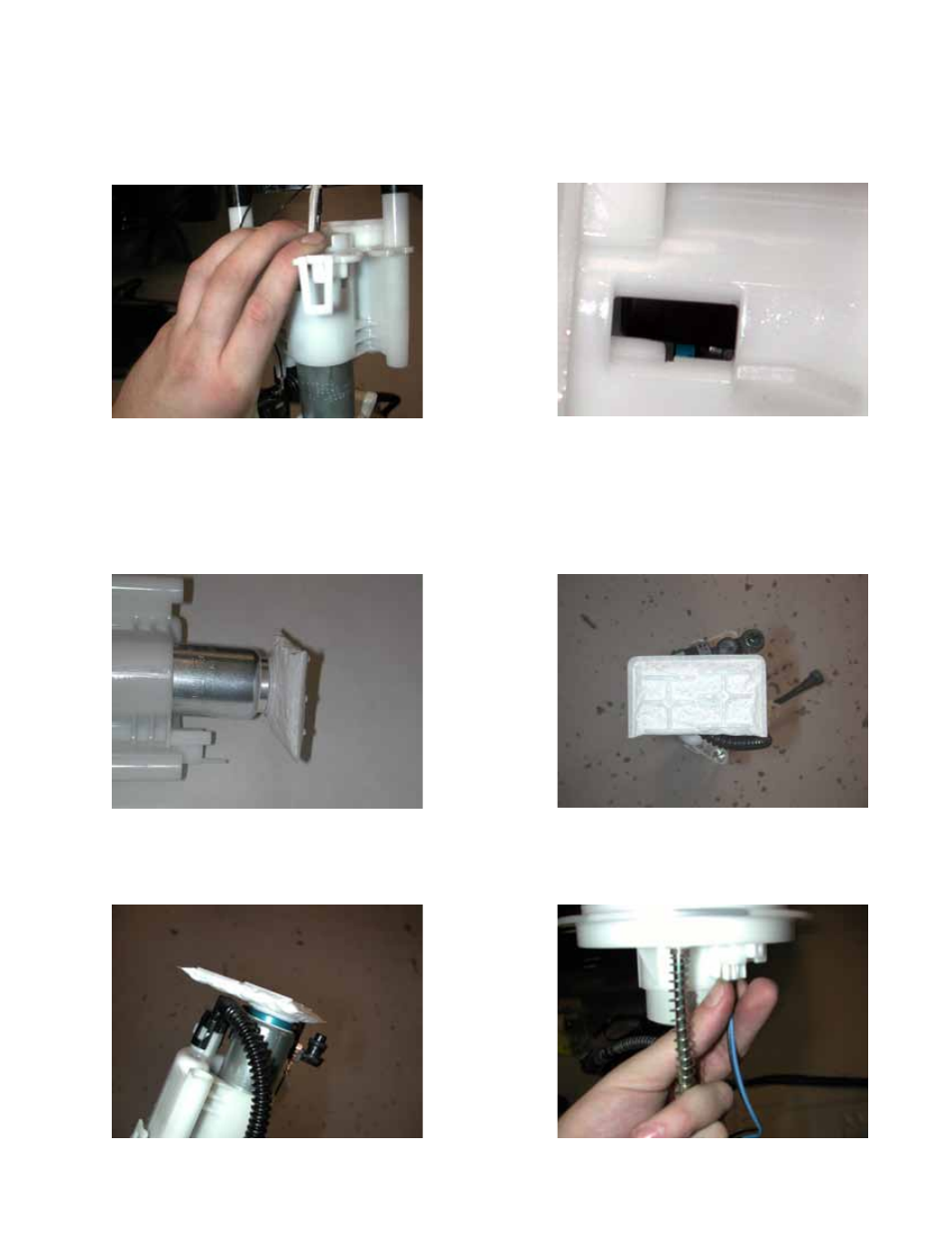

Figure 4
Figure 3
Page 12 of 17
