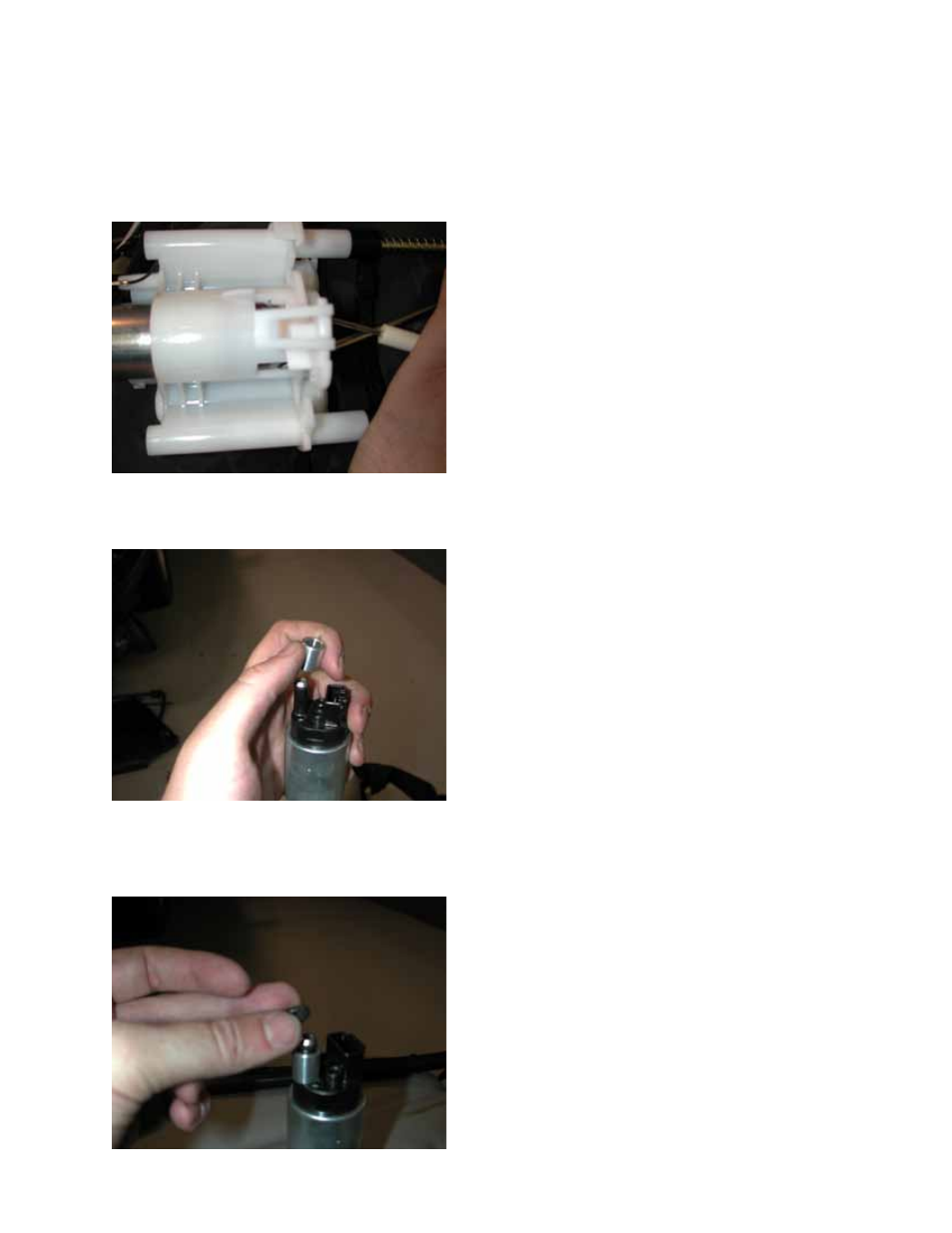

36. The fuel pump is held in place with two snap retainers. Use two small screwdrivers inserted
into the top of the lower module to hold these away from the pump, and pull the pump out. There
are two inspection ports near the top of the fuel canister that can be used to ensure proper placement
of the screwdrivers and proper snap-retainer disengagement. The fuel pump sock may be removed
from the pump by using a small screwdriver to remove the snap-ring if fuel pump removal is
difficult.
37. Place the supplied LPE fuel pump spacer over the outlet neck of the new fuel pump, taking care
to ensure the slot in the bottom of the spacer is aligned with the tab on the top of the fuel pump.
38. Slide the stock O-ring over the outlet
neck so that it rests on the spacer.
Page 10 of 17
