Nursing Kelly 5 Laerdal
Blood Pressure Arm
1 . Place Blood Pressure Cuff on arm .
2 . Attach tubing on cuff to clear tube, located underneath Nursing Kelly’s
arm . (Photo 8)
See SimPad DFU for complete Blood Pressure operating
procedures.
Do not insert needles into blood pressure arm .
See SimPad DFU for complete Heart, Breath and Bowel
Sound Auscultation.
Genitalia
Both male and female genitalia have been provided for urinary
catheterization and enema training procedures .
Tube-like valves, with a screw cap on one end, connect urethra and anus to
corresponding reservoirs . This cap must be connected to genitalia openings .
Soft vinyl end of valve is attached to urinary reservoir with a black clamp
and anal reservoir with a white clamp . (White valve connects urinary
reservoir; flesh tone valve connects anal reservoir .)
Pelvic support pin must be removed and replaced immediately when
assembling and disassembling genitalia . (Figure 5) .
Pelvic support pin must be replaced.
Failure to replace pin will result in pelvic spread .
Should this occur, see Troubleshooting, page 6 .
If this occurs, the genitalia module will no longer fit properly
in the manikin .
To disassemble:
1 . Lift up on belly plate .
2 . Pull upper portion of genitalia back to remove pelvic support pin .
3 . Belly plate, genitalia with valves, and colon reservoir may now be
removed simultaneously .
To assemble: (Photos 9 & 10)
1 . Screw both valves onto genitalia . When attaching valves, be sure
alignment of genitalia, urinary reservoir (belly plate) and colon reservoir
are as illustrated in Figure 6 .
2 . Lift up on edge of belly plate .
3 . Pull down upper portion of genitalia .
4 . Insert into pelvic cavity .
5 . Replace the pelvic support pin .
6 . Press belly plate into position .
White valve connects urinary reservoir; flesh tone valve connects
anal reservoir .
Install white valve on the black connector of the urinary reservoir .
Insert white valve until it is flush with the urinary reservoir and secure the
black clamp as shown .
Colon Reservoir
Colon reservoir inserts into pelvic cavity with narrow end downward and
connector pointing outward . This connector attaches reservoir to anal valve
on genitalia . (Photo 11)
Reservoir should be removed from manikin, inverted, drained and
completely air-dried before storing .
English

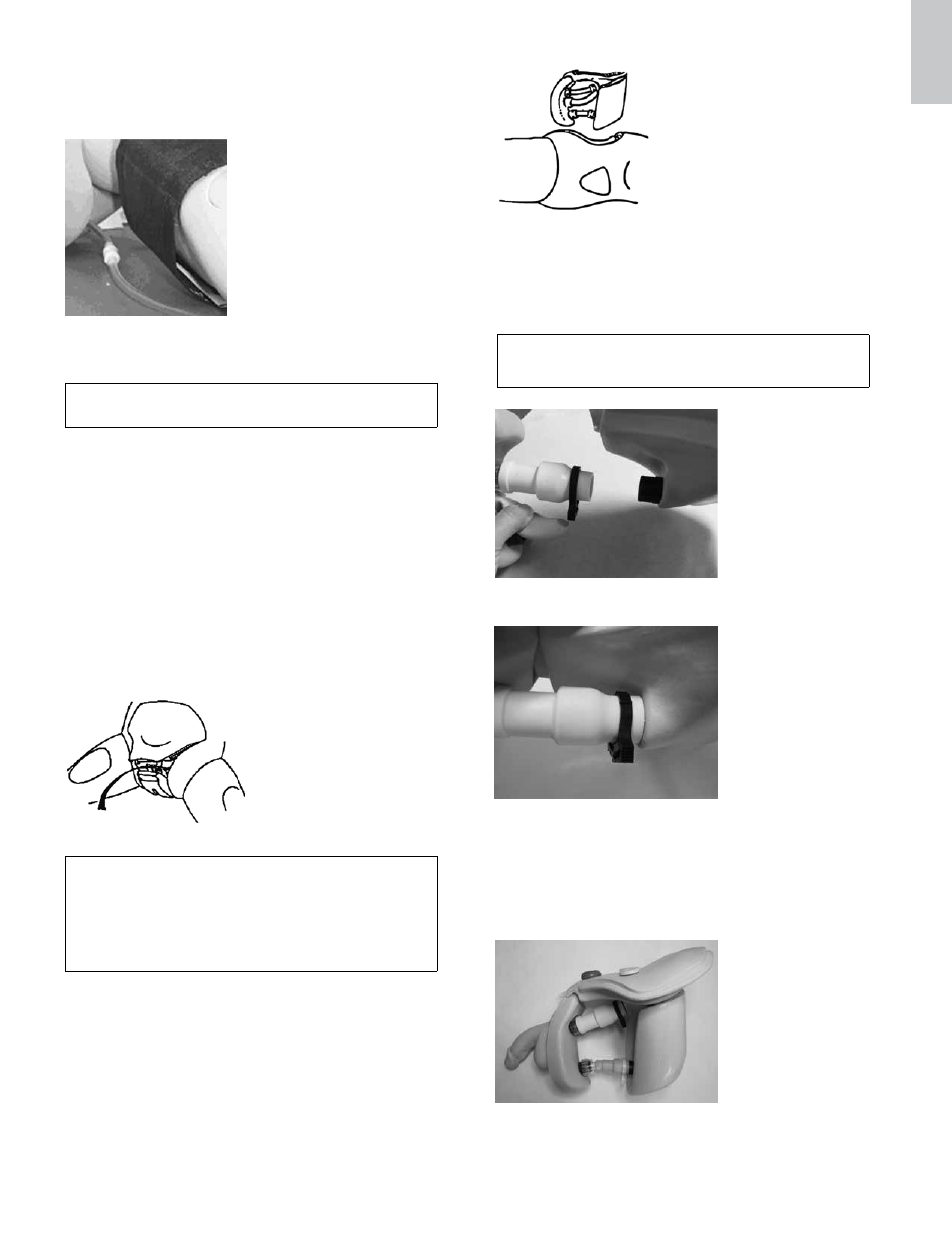

Photo 8
Figure 5
Figure 6
Photo 9
Photo 10
Photo 11
