Chapter 3: Getting Started
Product Service 1-800-522-7658 18
Installation of Gloves to the Glove Ports
With thumbs up and right/left orientation, secure the gloves in place on the
glove ports by stretching the beaded cuff into the groove nearest the window.
Install the separate 8" diameter O-ring over the gloves and into the outer
groove of the glove port surface. Stainless steel band clamps are provided for
securing the separate O-ring into the glove port groove. Replacement gloves
and parts are listed in Appendix A with a description in Chapter 7.

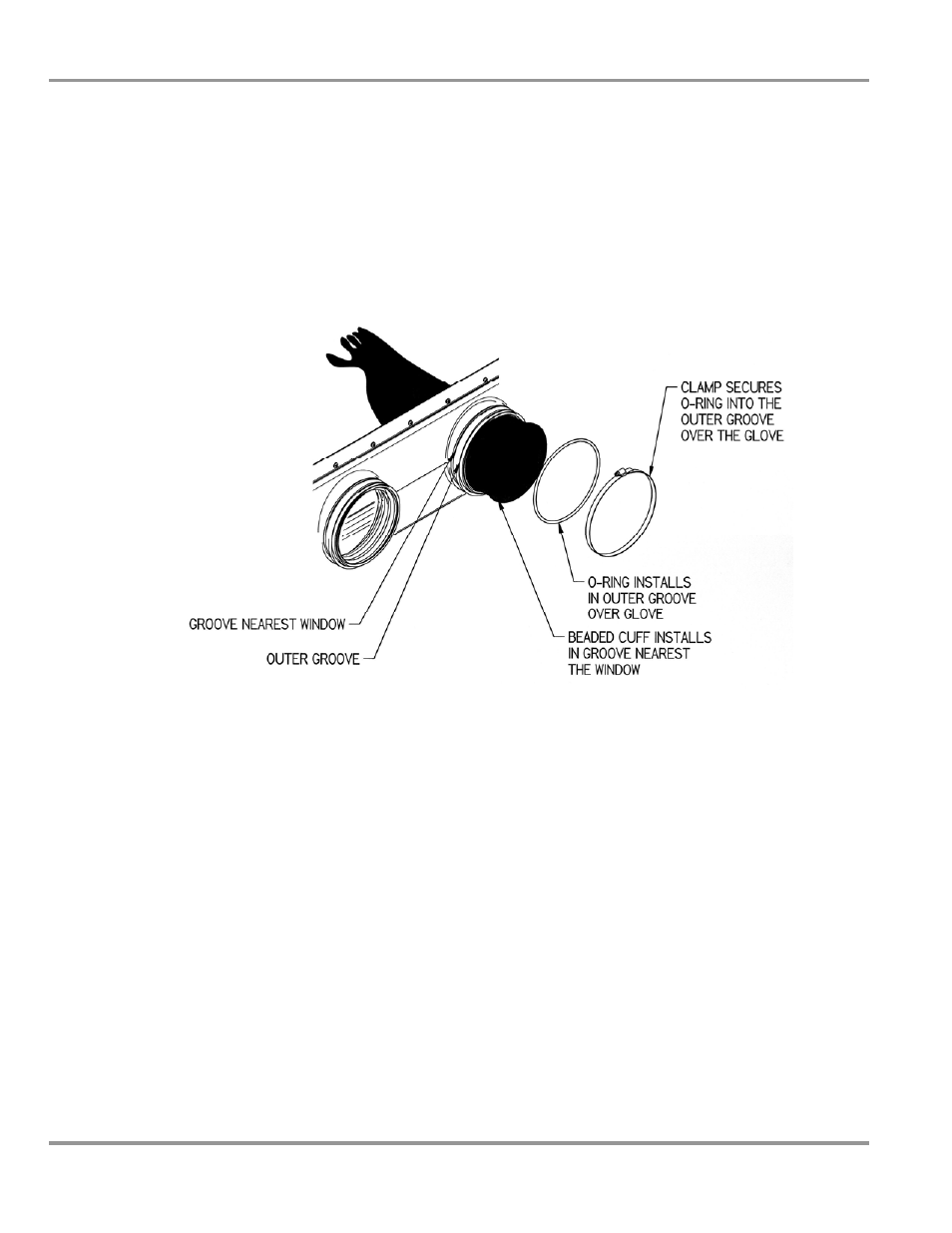

Figure 3-3
Glove Installation
Connecting the Electrical Supply to the Glove Box
115V, 60 Hz; 100V, 50 Hz or 100V, 60 Hz Models
Connect the power cord supplied to the IEC electrical supply plug on the
back of the glove box. Double width models utilize two power cords. 115V
or 100V models are rated at 12 amps total.
The maximum circuit load for the interior electrical duplex is 10 amps.
230V, 50 Hz or 230V, 60 Hz Models
The same procedure applies for the 230V models. Install the power cord per
local requirements. The 230V, 50 Hz or 230V, 60 Hz models are both rated
at 12 amps total. The interior electrical duplex is rated at 10 amps.
