The chart below shows the heat power produced in watts, in kcal per hour, and also in BTU per hour.
1/3 Power(1)1/8 Power (2) 1/3 Power(1) 1/8 Power (2)1/3 Power(1)1/8 Power (2)
[W] [W] kcal / h kcal / h BTU / h BTU / h
fP 2600 8 ohms 443 373 380 320 1510 1270
4 ohms 770 630 660 540 2630 2150
2 ohms 1400 1100 1200 950 4780 3750
note 1 Average power with music as program source. The amplifier driven to clip level.
note 2 Normal music power with 9dB headroom, IEC standard power rating.
HEAT POWER
The efficiency can also be calculated, it being the output-power divided by the input-power:
560 watts / 1330 watts= 42%.
T= `lkkb`qflkp=
TKN= fåéìí=ЕзееЙЕнбзел=
TKNKN= _~д~еЕЙЗ=беймнл=
The XLR input connectors are electronically balanced, and wired according to the IEC 268 (pin 2 =
“hot”), and wired in the following way:
PIN 1
GROUND/SHIELD
PIN 2 HOT (+)
PIN 3 COLD (-)

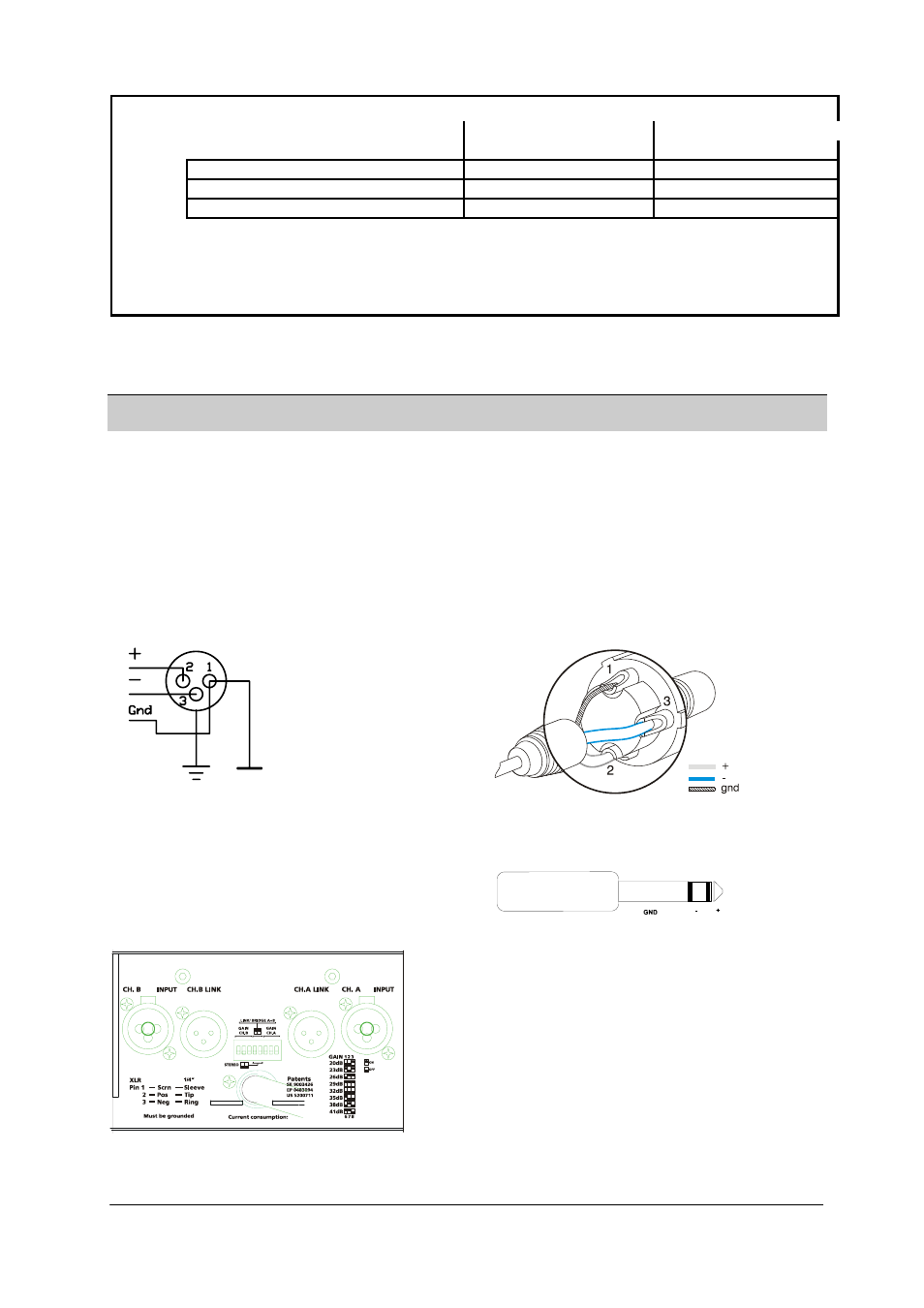

Figure 4: XLR input connector Figure 5: XLR balanced
Within the Neutrik® Combojack there is a ¼”(6.3mm) phone jack wired in parallel with the XLR.
TIP HOT
RING COLD
SLEEVE GROUND/SHIELD
Figure 6: ¼” TRS plug
The input impedance is high enough (20 kohms balanced) to
allow ”daisy-chaining”, or multiple parallel input
connections. The headroom of the input circuits is also great
enough to accept the maximum output level from virtually
any low-level signal source. Balanced signals are less
sensitive to AC hum and radio interference. The source
impedance should be less than 1 kohms to avoid high
frequency loss in long cables.
To daisy-chain amplifiers, use the XLR-male connector provided on each channel, labeled “Link”. They
are connected in parallel with the Neutrik® Combojack on each input.
