DeviceControl Operation Manual
29

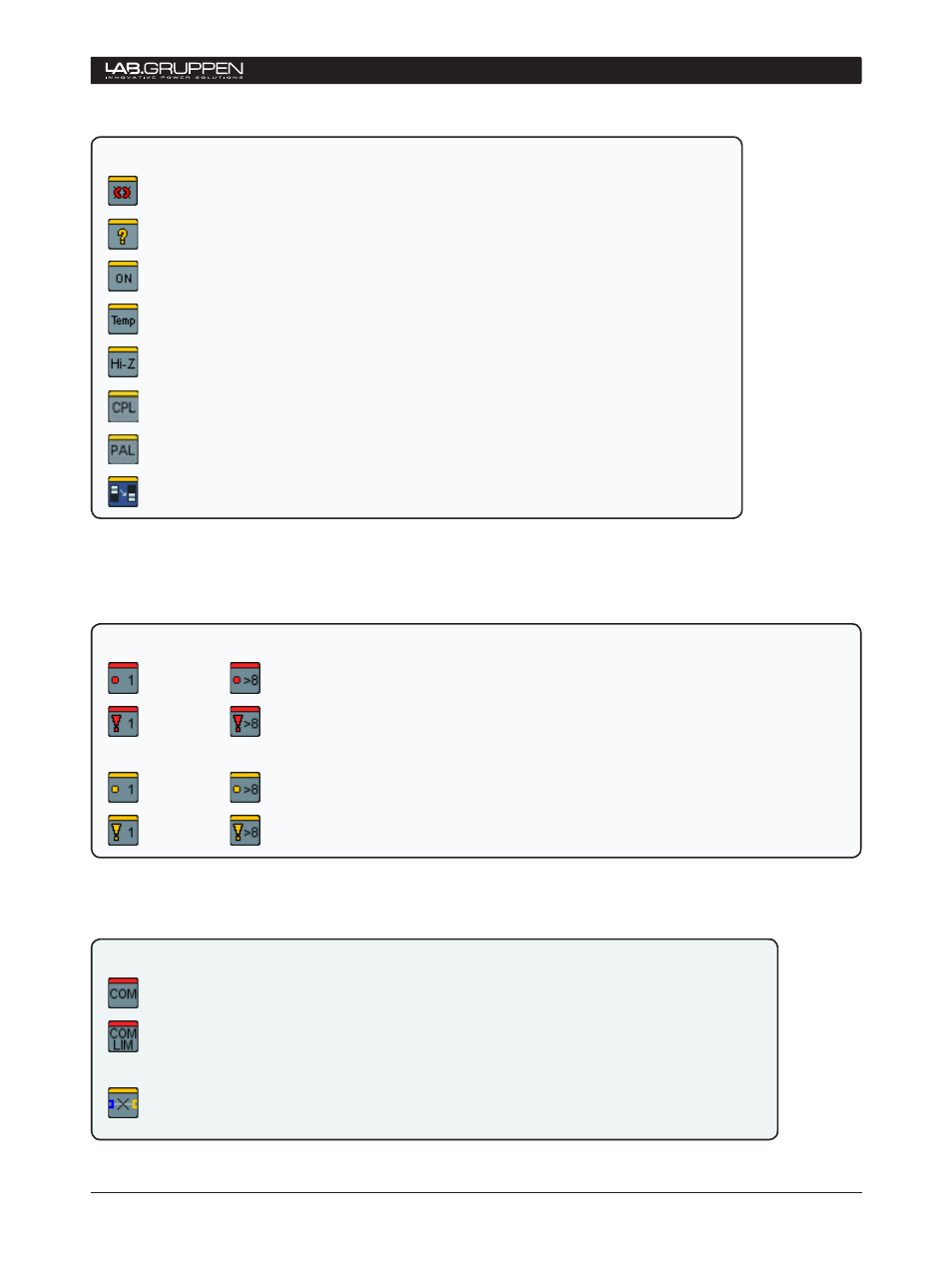

Warnings
Offline
Offline warning (no network connection)
DIP-switch not read
Not verified (present when amplifier not turned on)
On warning
Amplifier on, configured power off
Temp warning
High but not muted
High impedance
Possible wiring disconnect
.
Current limit
Current Peak Limiter (CPL) active
Power Average Limiter
Power Average Limiter (PAL) engaged
Wrong DIP-switch settings
Verification warning – DIP-switches (non-critical)
6.6.5 Group and Subnet warning and fault icons
When expanded (Figure 6.10) the Group module indicates any current faults and warnings in any Group channels
with the following icons:
Faults (red)
➝
Fault(s) in number of channels indicated. If more than 8, >8 is displayed
➝
Match fault(s) in number of channels indicated. If more than 8 channels, >8 is displayed
Warning (yellow)
➝
Warning(s) in number of channels indicated. If more than 8, >8 is displayed
➝
Match warning(s) in number of channels indicated. If more than 8 channels, >8 is displayed
.
When expanded (Figure 6.10), the Subnet module indicates any additional Subnet faults or warnings with the
following icons:
Faults (red)
Communication errors
Subnet current limited
Warning (yellow)
Not closed loop
reference section 6
