12. Rear panel
GPI GPO
POWER CHANNEL 1 CHANNEL 2
-10dB -10dB
SIG
HIGH PASS
Lo-Z
70V
FULL RANGE
SIG
HIGH PASS
Lo-Z
70V
FULL RANGE
-Inf 0
-10dB
-Inf 0
-10dB
00-240V 50-60Hz Locking IEC; must be grounded/earthed
Ser. N:o Removed!
BALANCED SPEAKER OUTPUTS BALANCED INPUTS POWER STATE
CH 1 CH 2
CH 1 CH 2
CONTROL MONITOR
E 12:2
DO NOT
CONNECT ANY
TERMINAL TO
GROUND.
CLASS 2 WIRING Audio Power Amplifier
for professional use
Designed in Sweden
manufactured in Thailand
4GC7

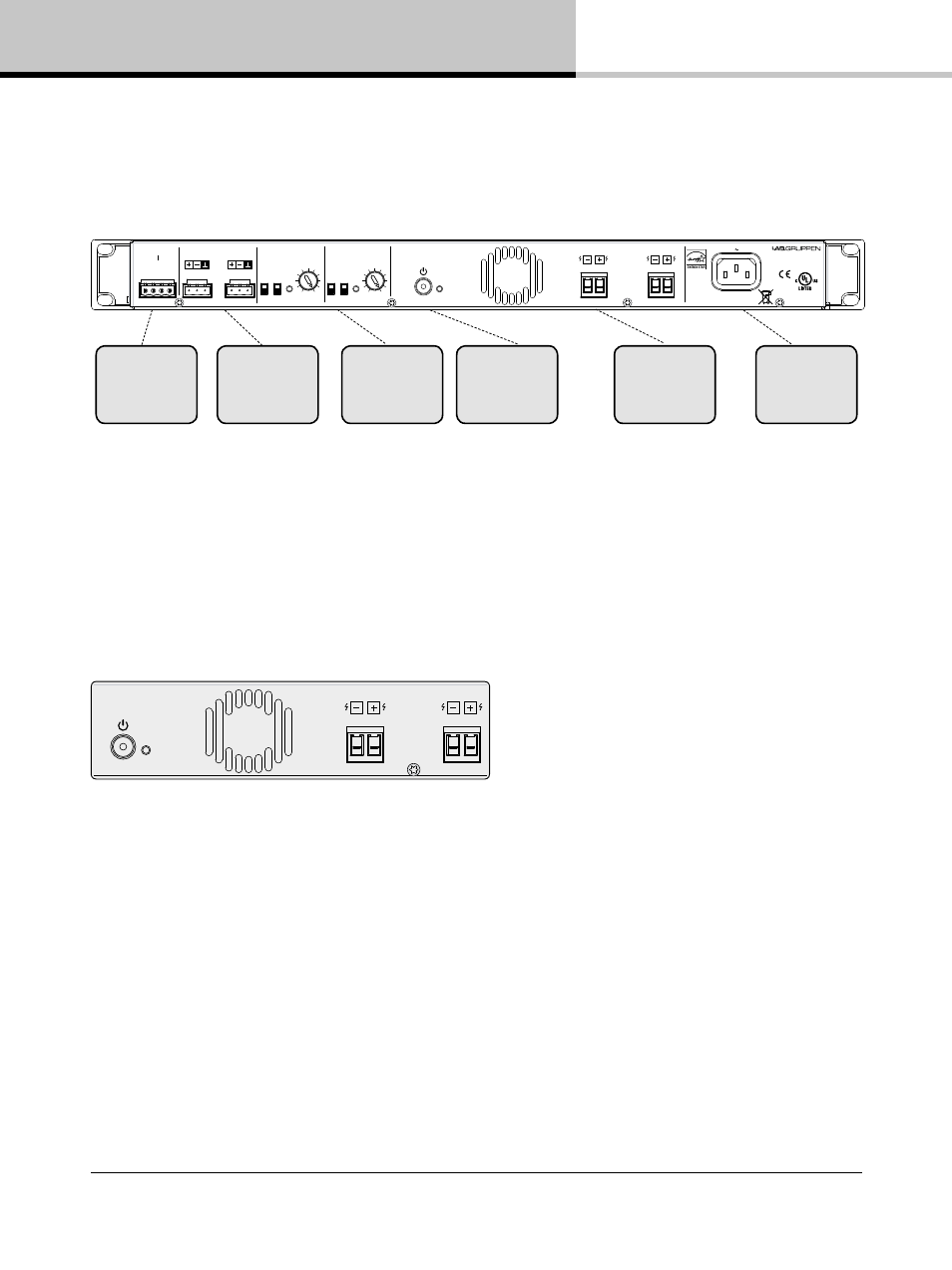

Power control
and indicator
GPIO
connectors
3-pole block
type input
connectors
Switches,
indicator and
attenuator per
channel
2-pole block
type output
connections
Mains input
100 -240
VAC,
@ 50 or 60 Hz
12.1. Power
The Power control button is located in the middle. When pressed momentarily it toggles the power state
between standby and on.
The Power state indicator is located to the right of the button. It illuminates amber as soon as the amplifier reaches
standby, and turns green when the amplifier is fully on.
GPI GPO
POWER CHANNEL 1 CHANNEL 2
-10dB -10dB
SIG
HIGH
PASS
Lo-Z
70V
FULL
RANGE
SIG
HIGH
PASS
Lo-Z
70V
FULL
RANGE
-Inf 0
-10dB
-Inf 0
-10dB
00-240V 50-60Hz
Locking IEC; must be grounded/earthed
Ser. N:o Removed!
BALANCED SPEAKER OUTPUTS BALANCED INPUTS POWER STATE
CH 1 CH 2
CH 1 CH 2
CONTROL MONITOR
E 12:2
DO NOT
CONNECT ANY
TERMINAL TO
GROUND.
CLASS 2 WIRING Audio Power Amplifier
for professional use
Designed in Sweden
manufactured in Thailand
4GC7
