11
Gain is another word for amplification. The gain of the AMPBOX is programmeable using special tools. Kipp & Zonen can supply
three different settings of the AMPBOX.
2.1. Standard gain

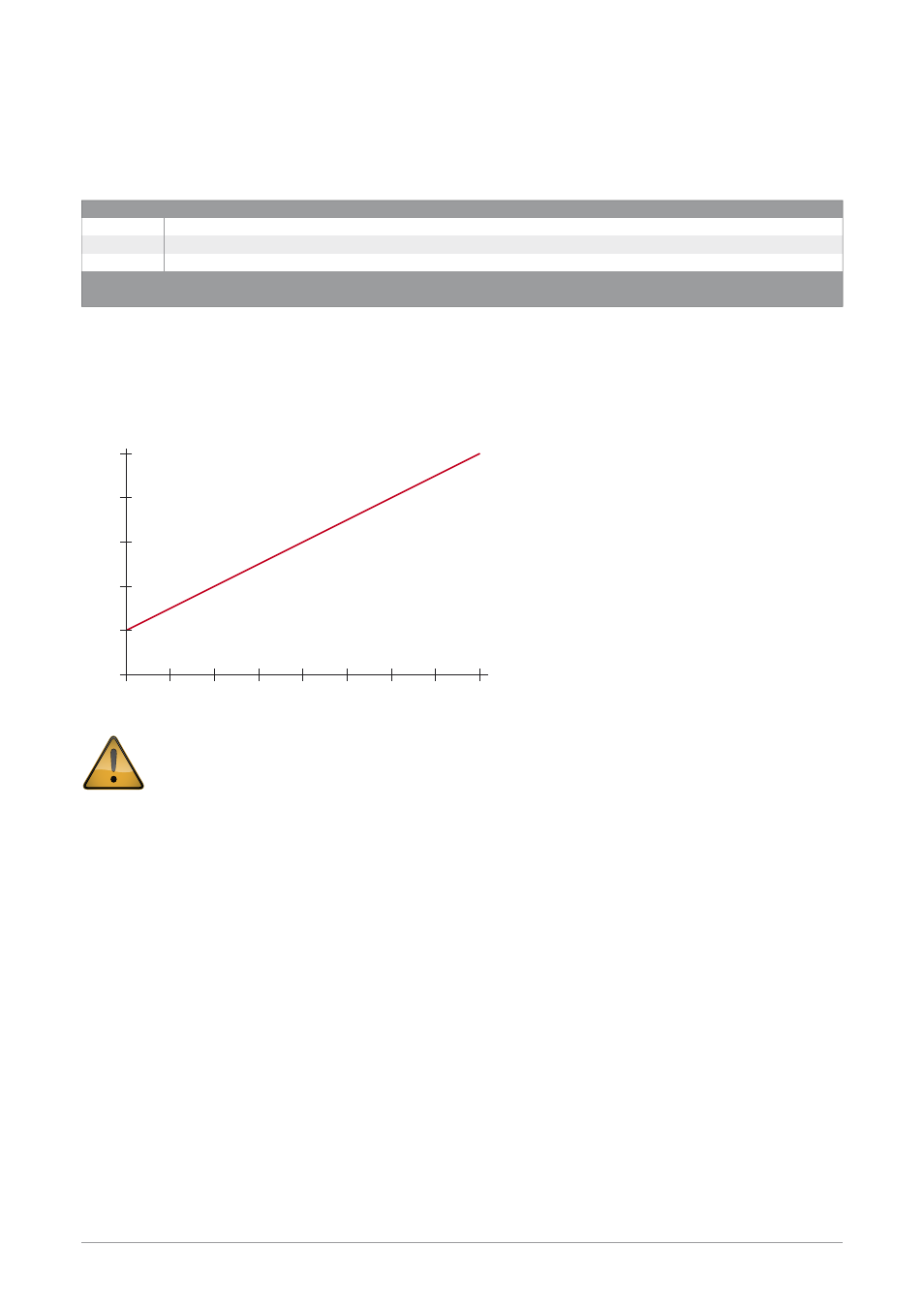

The standard gain of 1 mA / 2 mV means the AMPBOX is configured for 1 mA change in output at 2 mV change in input. This means
it will sink the current from 4 to 20 mA at 0 to 32 mV input coming from the radiometer.
Any incoming voltage level higher than 32 mV will still result in the maximum current sink of 20 mA.
Note Until the end of 2011 the standard AMPBOX gain setting was 1 mA / 1 mV, this was changed to 1 mA / 2 mV at the
beginning of 2012.
2. Gain
mV input
0
0 4 8 12 16
4
8
12
16
20
mA output
20 24 28 32
0365900 AMPBOX signal amplifier standard gain setting
0365901 AMPBOX signal amplifier gain adjusted
0365903 AMPBOX signal amplifier gain adjusted for pyrgeometers
Part number Article
Note: For a new radiometer supplied with an AMPBOX the adjustment is included in the radiometer part number, and price
For an existing radiometer please specify the model, serial number and sensitivity when ordering
