Hope Tech Press-Fit PF46 Bottom Bracket User Manual
Tools required

Press Fit 46mm Bottom Bracket
For 24mm crank spindles

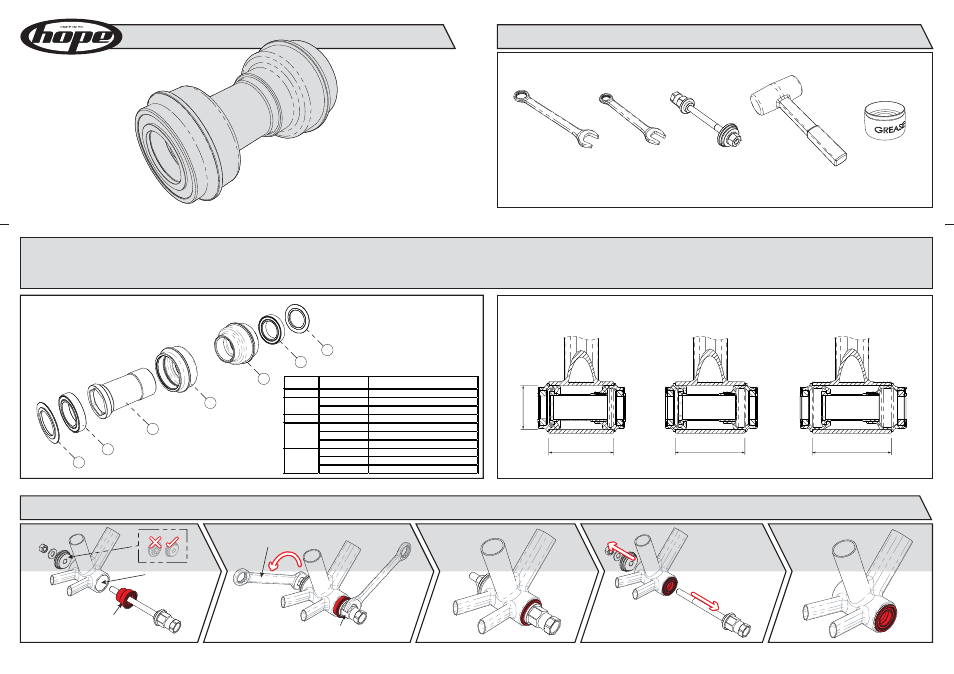

1. Install the drive side cup (with bearing fitted).
We strongly advise that this bottom bracket is installed and maintained by a competent cycle mechanic, using Hope Bottom Bracket Tool (HTTPFA).
This bottom bracket is intended for installation in bottom bracket shells with an internal diameter of 46mm and widths of 68mm, 73mm or 83mm.
Check internal edges of bottom bracket shell and remove any burrs or paint build-up prior to fitting.
Drive side cup
(Item No. 5)
Ensure outer seal rings are
not installed at this stage
Hold this end stationary
using a 27mm spanner
Drive side cup is installed
Unscrew the nut and remove the tool
Drive side cup is now fully flush with the BB shell
Tighten the nut using a 19mm spanner
until the drive side cup is pulled fully
flush with the bottom bracket shell
Apply grease to the internal
surface of the B.B. shell
Tools required:
19mm spanner
Hope Bottom Bracket Tool
(HTTPFA)
27mm spanner
Grease
Rubber Mallet
HOPE TECHNOLOGY
Hope Mill,
Barnoldswick,
Lancashire,
ENGLAND
BB18 6NG
www.hopetech.com
BBPF466824SSN / BBPF466824CRN
BBPF466824SSN
BBPF466824CRN
BBPF467324SSN
BBPF467324CRN
BBPF468324SSN
BBPF468324CRN
BBPF467324SSN / BBPF467324CRN
BBPF468324SSN / BBPF468324CRN
1
2
3
4
5
2
1
ITEM NO.
HOPE PART NO. DESCRIPTION
1
BBSP104
Outer Seal Ring
BBSP108:S
24mm BB Stainless Steel Bearing
BBSP108:C
24mm BB Ceramic Bearing
3
BBSP111
24mm Bolt-in Centre Tube
BB008-3
PF46 68 24 Non-Drive Side Cup
BB004-1
PF46 73 24 Non-Drive Side Cup
BB005-1
PF46 83 24 Non-Drive Side Cup
BB008-2
PF46 68 24 Drive Side Cup
BB004-2
PF46 73 24 Drive Side Cup
BB005-2
PF46 83 24 Drive Side Cup
2
5
4
68mm
46mm
73mm
83mm
NDS
DS
NDS
DS
NDS
DS
