Wire Free Bell Push: HE-306T
Battery: 23A (included)
Range: 40Metres (Open Distance)
Frequency: 433.92MHz
C H Byron
34, Sherwood Rd
Aston Fields
Bromsgrove
B60 3DR
Contact Details:
433MHz
R&TTE
APPROVED
CH Byron Electrical United Kingdom. www.chbyron.com
A
B
DK
FIN
F
D
GR
LT
IRL
I
L
NL
P
E
S
UK
BG
CZ
EST
H
IS
LV
M
N
SK
SLO
CH
PL
RO
0560
Tel: 0845 2301231
Fax: 01527 57701
Web: www.chbyron.com
E-mail:
[email protected]
Contact: Helpline: 0845 2301 231
RF Range: The radio signals operating distance is reduced when the signal has to pass
through walls. The radio signals achieve a range of 40m; this can be reduced depending on
the type of material.
Help Section :
Changing Batteries:
1. Unclip the front cover from the front of the Bell
Push using a small screw driver.
2. Remove the battery and replace using a new
'23A' battery, making sure the polarity is correct.
Always dispose of old batteries in an
environmentally responsible way
3. Replace the front cover making sure the clips are correctly aligned and firmly push the
case together.
No Activation: Check the battery level and polarity, replace with new
batteries if necessary
Check to make sure that the bell push is paired the plug-in door chime
unit.
Product Specification:
Plug-in Door Chime Receiver: HE-306R
Input: 230-240V ~AC
Load: 300W (Incandesent)
Frequency: 433.92MHz
Indoor Use Only
Warning: Never Exceed the Product Specification
Is the Plug-in door chime within the operating range,
see RF range help.
To pair the bell push with the plug-in chime receiver, insert the plug-in chime unit into a
plug socket and switch on the power, now press the "Learn" button. The LED will start to
flash, now press the button on the bell push, the LED will stop flashing. The units are now
paired together place your selected electrical product into the receiver socket; you can now
test the units by pressing the bell push.
Deleting Bell Push:
To delete a bell Push that has been paired with a plug-in chime receiver, simply press the
"Learn" button. The LED will start to blink; press the bell push button, the LED will blink twice
to confirm that the bell push has been removed from the receiver sockets memory.
Reset Plug-In Chime:
To reset the plug-in chime unit, press and hold the learn button for more than 6 seconds, the
LED will start to flash quickly. Release the button and then press the "Learn" button again for a
further 6 seconds, the LED will blink twice to confirm the plug-in chime has been reset.

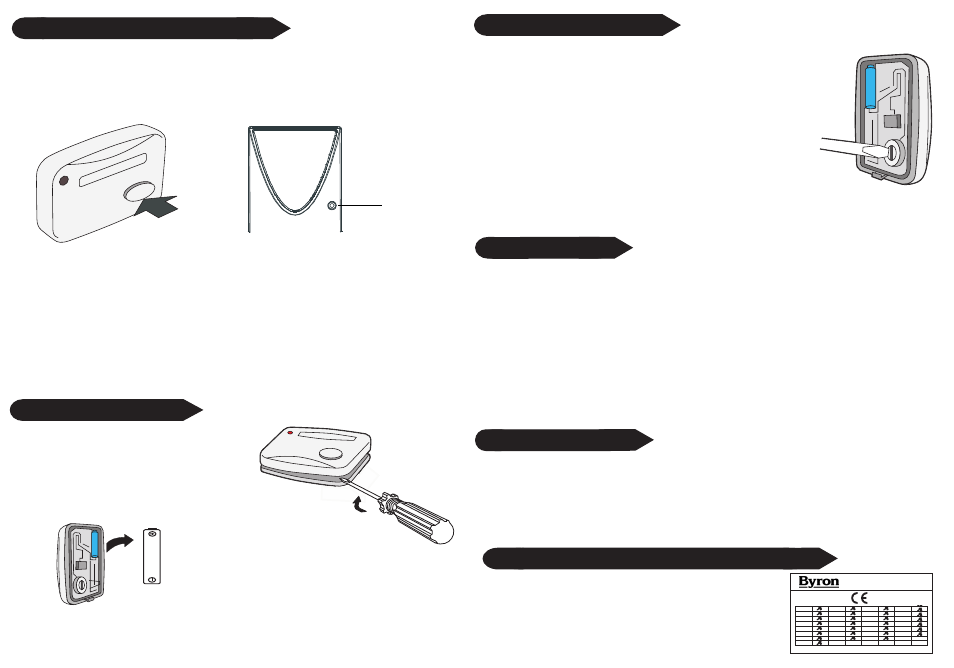

Pairing/Deleting Bell Push & Chime:
Learn
plug-In Chime Bell Push
Press
23A
12V
Bell Push Code Setting:
The bell push comes from the factory on a pre-set digital code. However,
should your chime activate intermittently for no reason at all, it's possible that a
similar unit is operating nearby on the same digital code. To resolve the
problem you need to change the digital code in the back of the bell push.
2. Remove the back of the bell push and using a small screw driver, rotate
the digital code select dial to an new setting, this can be any new
position.
1. Delete the bell push from the memory from the plug-in chime units
memory (See Deleting Bell Push ).
3. You now need to pair the bell push back with the plug-in door chime.
See Pairing/Deleting Bell Push & Chime.
