The HE-200 Remote Control Timer can be paired to 16
separate receiver units, select the unit code by pressing
the unit button.
Up to Six remote control units can be paired with each receiver socket or
module. To program a socket insert the unit into a plug socket and switch on
the power, now press the "Learn" button . The LED will start to flash, now
press the selected "ON" button on the remote control, the LED will stop
flashing. The units are now paired together, you can test this by pressing the
selected "ON/OFF" button
Always refer to the original instruction when using with additional products
Deleting Remote Control:
To delete a remote control that has been paired with a HomeEasy receiver
socket, simply press the "Learn" button . The LED will start to blink; press the
"Off" button on the remote control, the LED will blink twice to confirm that the
remote control has been removed from the receiver sockets memory.
Remote Socket reset:
To delete all the remote control units from the memory of the receiver socket,
hold the "Learn" button for more than 6 seconds, the LED will start to blink
continuously. Press the learn button again, the LED will blink twice to confirm
the deletion of all remote controls form the receiver memory.
Unit Setting:
Pairing/Deleting with Remote Control:
The HE-200 comes with a preset to Group code A. When
using additional remote control timers you will need to
select a new group code.
To select a new group code, remove the battery cover and
using a small screw driver, rotate the group dial to a new
setting e.g. Group B
Dimming Receiver Sockets HE220:
To dim a compatible receiver socket.
RE-INVENTING THE HOME
HOME
easy
1. Select the unit by
pressing the "unit"
button until the
correct number is
displayed on the
screen. 2. Press the "On"
button and then
press "On" again.
Never exceed 300W
maximum load.
HE210 & HE-220
3. The dimmer will start to dim the light unit till it reaches zero, then the
unit will start to increase the light up to the maximum level. To set the
desired level, press the "On" button.
4. Press the "Off" button to switch the receiver unit off.
Remove the battery cover form the back of the remote control.
The HE-200 includes 2 batteries:
LCD Display: 1 x CR2032 -Byron SX100 (Included)
RF Transmission: 1 x 23A - Byron SD100 (Included)
Remove the required battery and replace with new, making sure the
polarity matches the internal markings.
HE-200/210/220
Remote Control Timer
V1.0
Display Functions:
Product Specification:
Remote Control: HE-200
Battery: 3v Cr2032 & 12V 23A
Range: 30 Metres (Open Distance)
Frequency: 433.92MHz
Indoor Use Only
Warning: Never Exceed the Product Specification
Receiver Socket: HE-202
Input: 230V ~ 50Hz
Max Load: 300W (Incandescent)
Frequency: 433.92MHz
Indoor Use Only
The HomeEasy remote control Timer allows you to add
the following extra features to your HomeEasy products:
-12 Programmable memory Settings
-Security Mode
-Single and Daily Timer Functions
-24Hr Timer Display
-30 Metre Wire Free Range
-CR2032/23A Battery (Included)

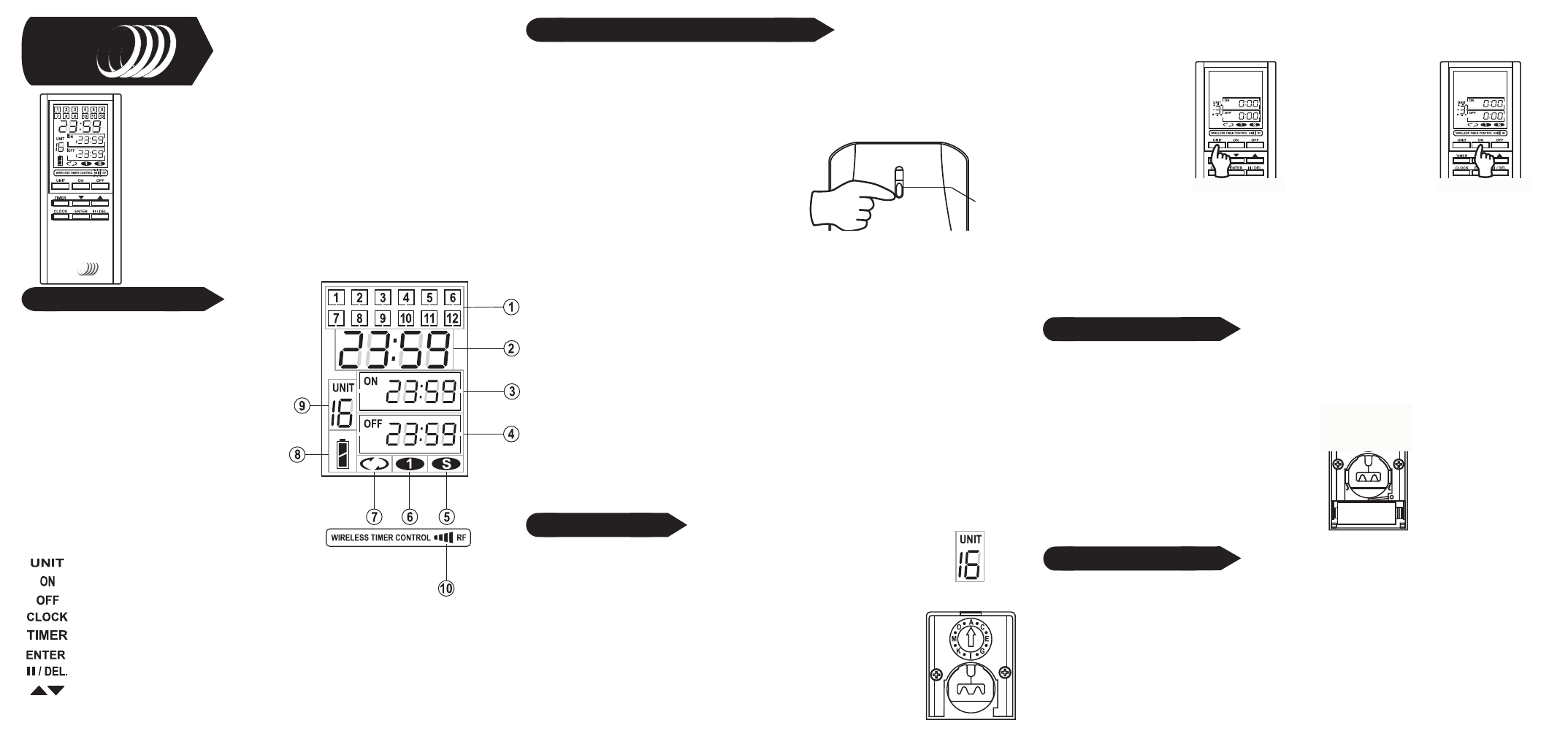

LCD Display
Functions:
1: 12 Programmable Memory Spaces
2: 24Hr Time
3: Timer Setting "On"
4: Timer Setting "Off"
5: Security Mode
6: Timer Mode - Single Timer Setting
7: Timer Mode - Daily Timer Setting
8: Low Battery Warning
9: Unit Code Display
10: Transmission Indicator Signal
Receiver Select
Switch "On" Selected Receiver
Switch "Off" Selected Receiver
Clock Setting
Program Timer/View
Enter
Delete/Pause
Select Up/Down
easy
HOME
Changing Batteries:
Learn
