6
Hitec Brushless Servo PC Programming Interface
DPC-10
DPC-10 Software Operating Manual

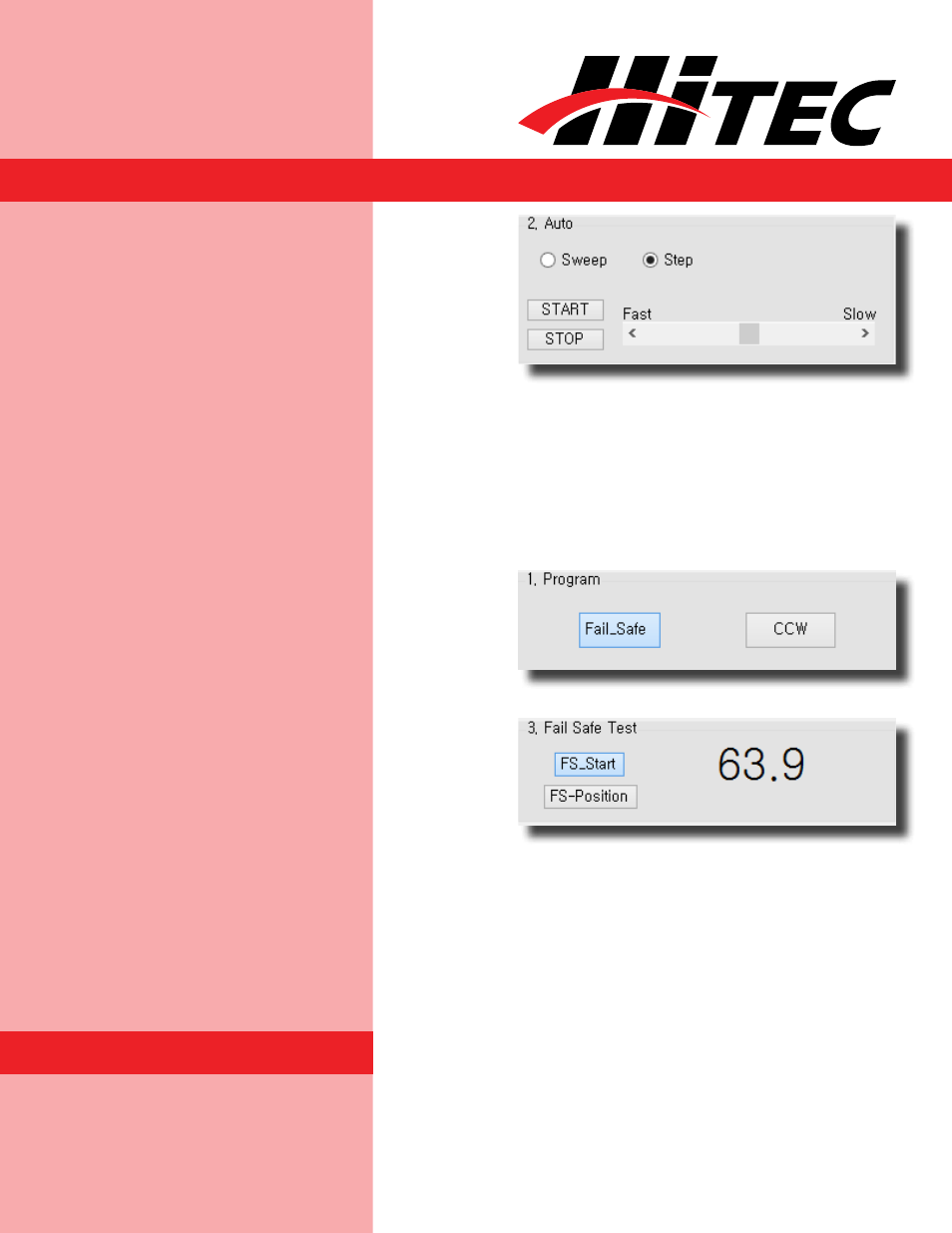

Fail Safe Test
This feature tests the user programmed FAIL SAFE
point of your servo.
Note: The FAIL SAFE point must be set by the user
in the programming section under setting the FAIL
SAFE Point. By clicking the “FS-Position” button, the
servo will travel to its preset Fail Safe position.
Section 4
Programming Hitec Brushless Servos The following functions can be programmed into
the HITEC BLDC servos using the DPC-10. It is
recommended that you program your servos in the
following order:
1. Select “Step” and click the “START” button. Your
servo will start moving from end point to end point
in a series of small steps.
2. Use the slide bar next to the “START/STOP”
buttons to adjust the servo’s travel speed.
3. Click “STOP” to end the process.
Automatic Step Positioning Test
