Congratulations on your choice of the Hitec X1 Touch digital, intelligent touch
screen interface charger from Hitec RCD USA. The Hitec X1 Touch is a high-per-
formance, microprocessor controlled charge/discharge station with battery
management capabilities that are suitable for use with most popular battery
types. The X1 Touch also features integrated balancing for six-cell, Lithium-
Polymer (LiPo), Lithium-Ferrite (LiFe) and Lithium-Ion (Li-Ion) batteries.
This unit is simple to use, but the operation of a sophisticated automatic
charger such as the Hitec X1 Touch requires some knowledge on behalf of
the operator. These operating instructions are designed to ensure that you
can quickly become familiar with its functions and capabilities. It is impor-
tant that you read this manual in its entirety before you attempt to use the
X1 Touch charger for the fi rst time.
INTRODUCTION (cont.) SPECIFICATIONS AND CHARGER LAYOUT

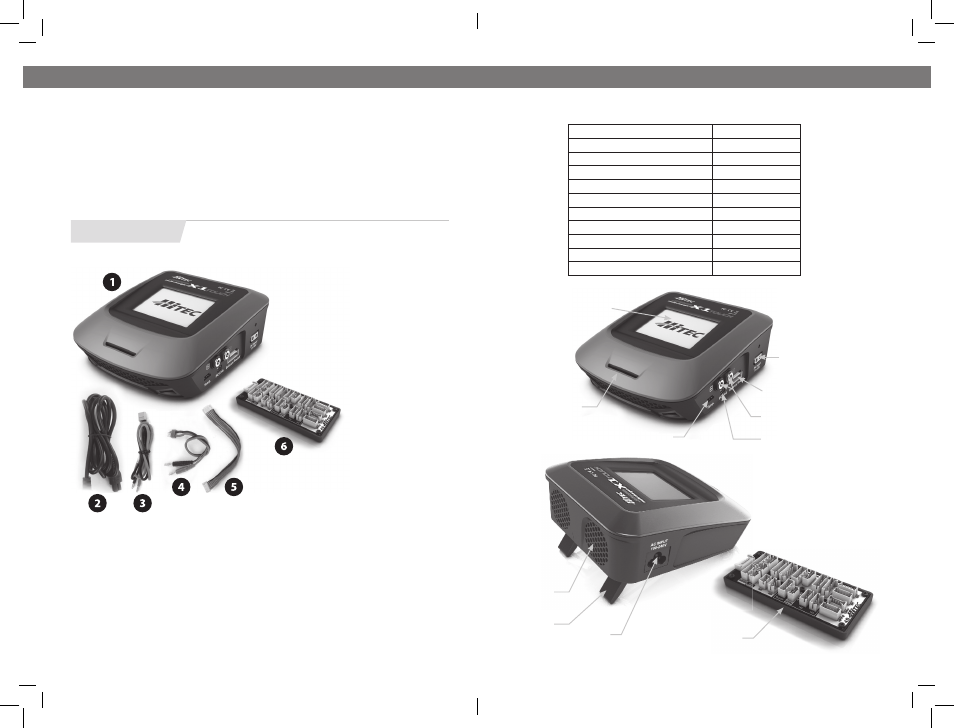

Parts Layout
Color LCD Touch Screen
3.2” (320 x 420 dot)
Smart
Cooling Fan
Tilt Stand
USB Port for PC
Control & Firmware
Upgrade
DC Input
11-18V AC
Air Intake Duct
Balance Socket - XH
Battery Socket
Temperature Probe
Socket
AC Input
Power Port
100-240V AC
Universal Balancing
Board
1. Hitec X1 Touch Charger
2. AC Power Cord
3. DC Power Cord
4. 18AWG Wire Charging Cable
5. Balancing Board Cable
6. Universal Balancing Board
AC Input 100 - 240 Volts AC
DC Input 11-18 Volt DC
Charge circuit power 55 Watts
Charge current range 0.1 - 7.0 Amps
Discharge current range 5 Watts
Discharge current power 0.1-2.0 Amps
Current drain for balancing port 200mA per cell
NiCd/NiMH battery cell count 1-15 Cells
LiPo/LiFe/Lilon cell count 1-6 Cells
Pb battery voltage 2-20V
Net weight 19 oz.
Specifi cations
