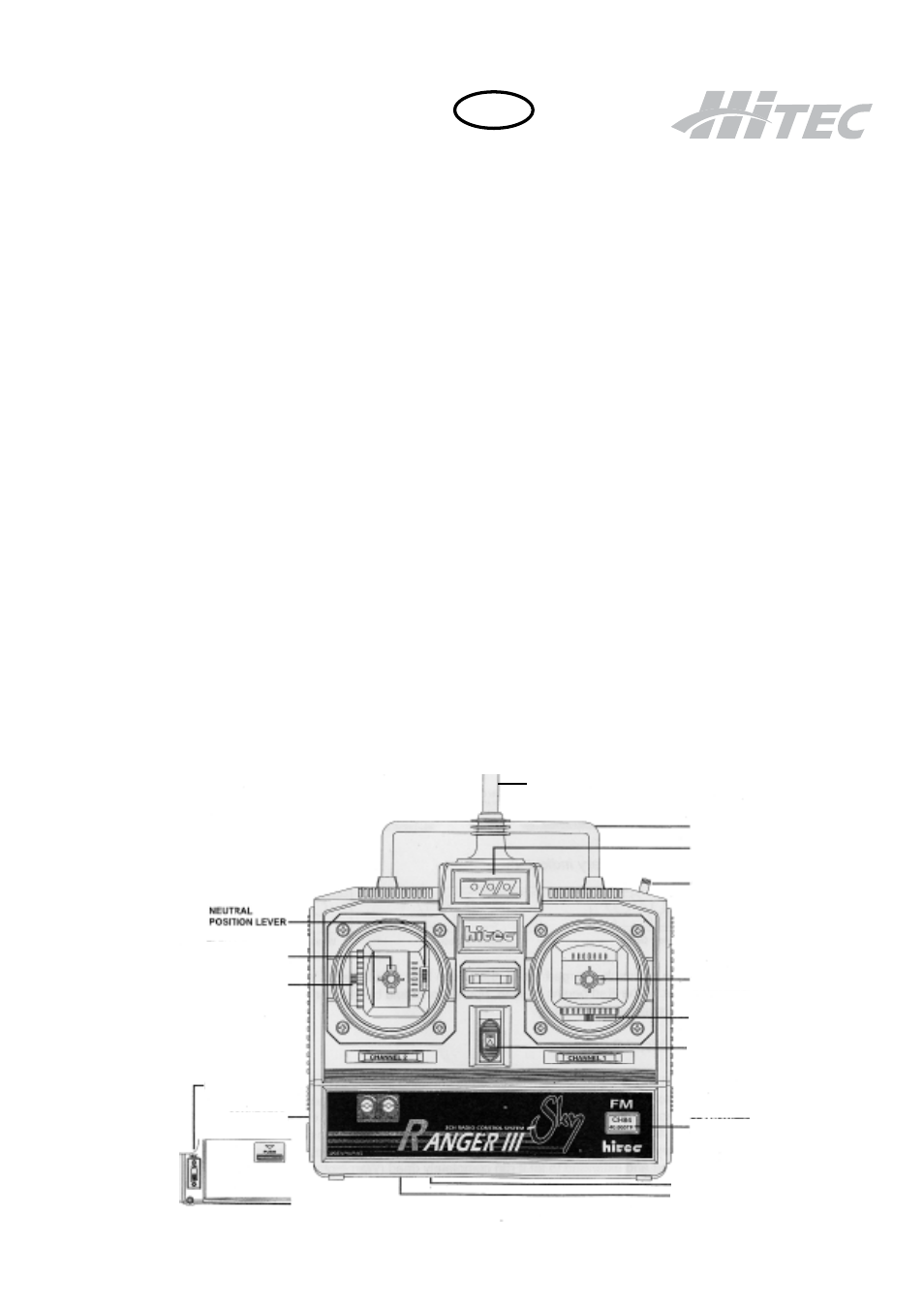

III. System-Layout
aerial
handle
motor
channel 3
display
rudder stick
channel 1
rudder trim
setting
On / Off
switch
crystal
elevator-stick
elevator trim
setting
Mixer
on / off
Charging jack
Servo-Reverse
rudder
Servo-Reverse
elevator
R
ANGER III
GB
III. System-Layout
I. Introduction
II. Features and Specifications
III. System Layout
IV. Setting and Operation
1. Transmitter
a. Loading Batteries
b. Reading the LED Battery Indicators
c. Recharging Nicad Batteries
d. Changing Crystals
2. Installation of Receiver and Servos
3. Transmitter, Receiver and Servo Settings
a. Checking Operation of the Servo
b. Elevator and Rudder Servo Trim Settings
- Trim Setting before Flight
- Trim Setting during Flight
c. Adjustable Traveling Volume
I. Introduction
The Ranger 3 FM Sky radio is part of the EasyStar RTF-
Set. The Ranger 3 FM Sky will prepare you to use radio
with more advanced features as your skill level and
desire for greater challenges evolve.
Please read the following instruction carefully before
you
start using the radio.
II. Features and Specifications
A Transmitter
- 3 Channel FM proportional radio control system
- 3 LED battery status indicators
- Charging jack for 3rd party Nicad battery
- Servo reversing for channel 1 and 2
- Current drain: 180mA
- V-tail or Elevon mixing function
- Proportional 3rd channel slide switch
- ATV for channel 1 and 2
B Receiver
- Narrow Band 4 channel FM receiver
- changeable crystals
C Servo
- 2 lightweight Tiny-S-Servos
D Speed-controller
- small, lightweight ESC MULTIcont X-08
