OSD Menu Overview

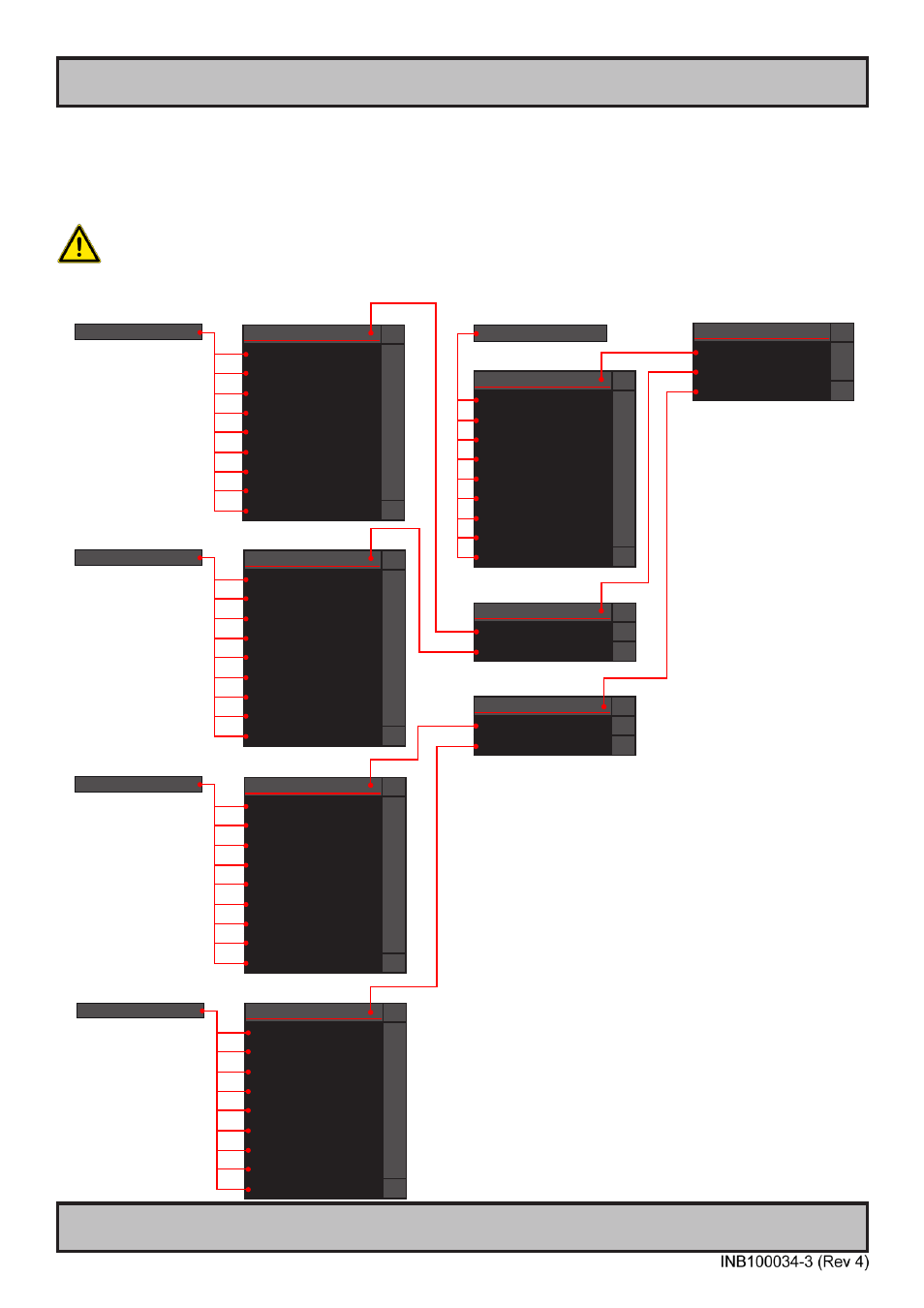

Main Group #3 - Source
In this group (with its sub groups) the user can change the signal input source and setup the Picture-In-Picture views or Picture-By-
Picture views which both take advantage of the Maritime Multi Display functionality. Some of these Sub Groups have more options,
please review this map to quickly determine the location of your desired function/option. For detailed information, please review the
“OSD Menu Functions” later in this section.
Sub Group #322
- Second Source ▲
Analog RGB 1
█
Analog RGB 2
Digital
S-Video 1
S-Video 2
S-Video 3
Composite 1
Composite 2
Composite 3
▼
Sub Group #321
- Main Source ▲
Analog RGB 1
█
Analog RGB 2
Digital
S-Video 1
S-Video 2
S-Video 3
Composite 1
Composite 2
Composite 3
▼
Main Group #3
- Source ▲
Single
█
PIP
PBP
▼
Sub Group #31
- Single ▲
Analog RGB 1
█
Analog RGB 2
Digital
S-Video 1
S-Video 2
S-Video 3
Composite 1
Composite 2
Composite 3
▼
Set Function?
► = Activate
Sub Group #32
- PIP ▲
Main Source █
Second Source ▼
Sub Group #33
- PBP ▲
Main Source █
Second Source ▼
Sub Group #332
- Second Source ▲
Analog RGB 1
█
Analog RGB 2
Digital
S-Video 1
S-Video 2
S-Video 3
Composite 1
Composite 2
Composite 3
▼
Sub Group #331
- Main Source ▲
Analog RGB 1
█
Analog RGB 2
Digital
S-Video 1
S-Video 2
S-Video 3
Composite 1
Composite 2
Composite 3
▼
Set Function?
► = Activate
Set Function?
► = Activate
Set Function?
► = Activate
Set Function?
► = Activate
Please note: Factory default illustrations only! Available functions, icons and text may deviate slightly from actual OSD menu on
your product due to different OSD software configurations and customized solutions.
