4
8 and 13" DIS DDC Control
All intellectual properties belongs to Hatteland Display AS
1.
General Description
 Support standard DDC/CI format communicate. The maximum transfer rate is 100 kb/s in
“standard-mode”.
 Support Manufacturer Specific DDC/CI format communicates.
 Support ALARM Board Control
2.

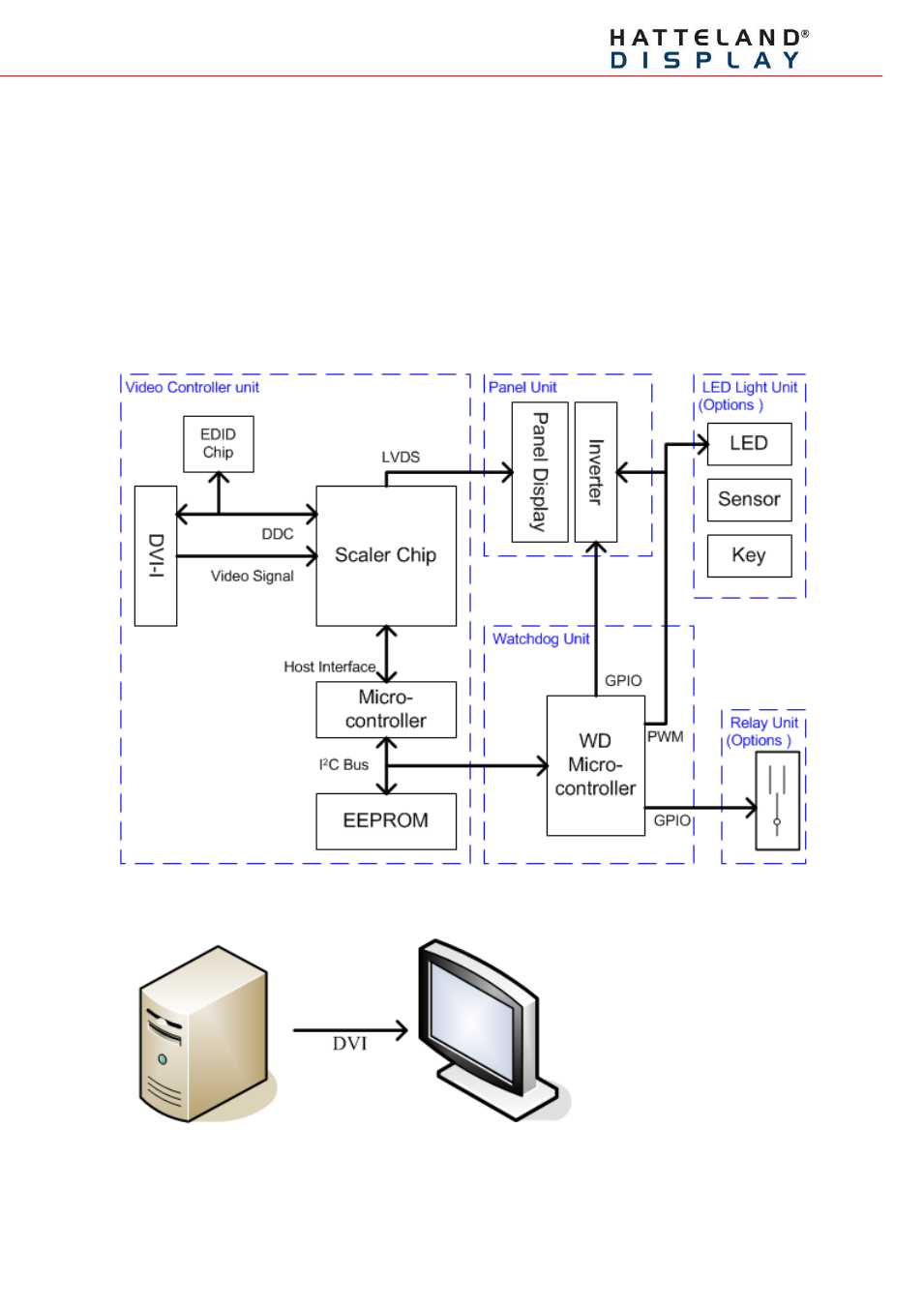

Block Diagram

Monitor Inside Block Connect

Monitor outside Block Connect
