37

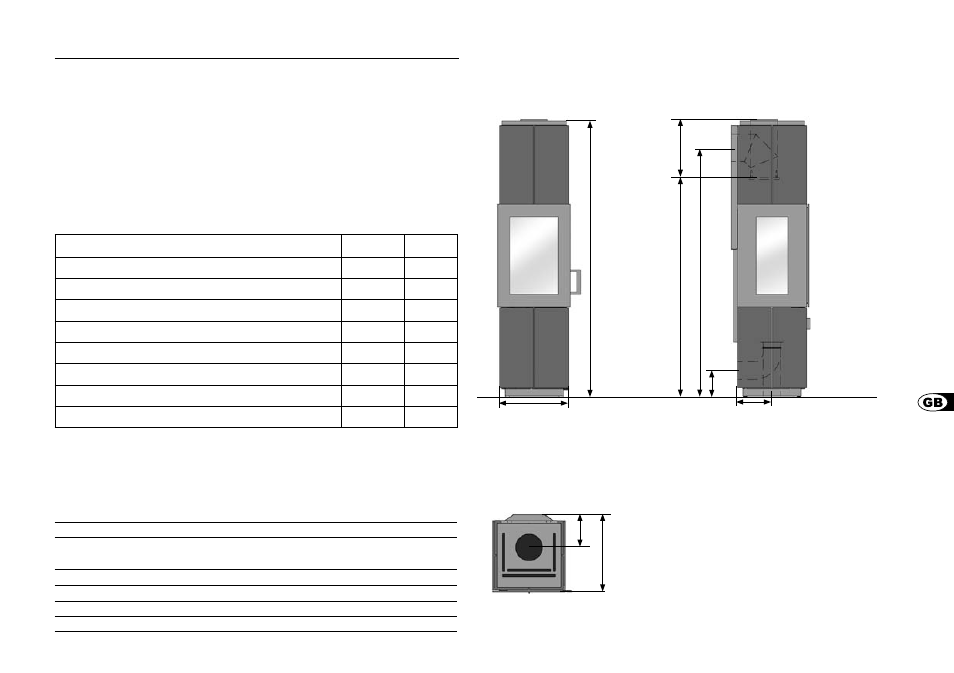

Dimensions in cm
11. Technical Data
The Asmara, certified in compliance with DIN-EN 13240 and Art. 15 a B-VG (Aus-
tria), can only be operated when the fire box is closed. Conforms with the DIBt
(Deutschen Institut für Bautechnik/German Institute for Building Technology) ap-
proval criteria for direct vent fireplaces for solid fuels. Multiple connections to the
chimney are possible, see point 4. “Connection of Multiple Devices in Direct Vent
Operation”.
VKF-No.: 25257; DIBt approval number: Z-43.12-378 / Typ FC41x und FC51x
The following data applies to the chimney characteristics in accordance with EN
13384-1 / 2
Combustion Values Wood
Nominal Thermal Output 6 kW
Efficiency 82 %
Particulate 23 mg/m³
CO content at 13% O2 771 mg/m³
Waste Gas Mass Flow Rate 6,3 g/s
Waste Gas Outlet Temp. 279 ˚C
Min. Supply Pressure at Nominal Thermal Output 12 Pa
Min. required combustion air volume 25 m³/h
Depending on the insulation of the building, the nominal thermal output of 6 kW
indicated on 20 bis 80 m² (subject to change).
Dimensions: Height Width Depth
Stove
156 cm 41 cm 44 cm
Fire box 49 cm 25 cm 27 cm
Weight without heat retaining block (Ceramic=Natural stone) 202 kg
Heat retaining block (optional) 67 kg
¹Vertical flue pipe length min. 33 cm
Flue pipe diameter 15 cm
Pipe diameter of Hase ventilation system* 10 cm
Front view
Ceramic/Natural stone: Side view
Ceramic/Natural stone:
Top view
Ceramic/Natural stone:
* For separate air supply in low-energy
houses and insufficient combustion air
supply in the room where the stove is
installed.
Height for top installation: 124
41
Stove height: 156
18,5
44
Height for the inst. of Hase air system: 15
Inst. of Hase air system
below: 20
Height for rear installation: 141
1
min. 33
