41
Dimensions in cm
11. Technical Data
The Luno B.13, certified in compliance with DIN-EN 13240 und Art. 15 a B-VG
(Austria), can only be operated when the fire box is closed. Conforms with the DIBt
(Deutschen Institut für Bautechnik/German Institute for Building Technology) approval
criteria for direct vent fireplaces for solid fuels. Multiple connections to the chimney
are possible, see point 4. “Connection of Multiple Devices in Direct Vent Operation”.
VKF-No.: 24259; DIBt approval number: Z-43.12-341. / Typ FC41x und FC51x
The following data applies to the chimney characteristics in accordance with EN
13384-1 /-2:
Combustion Values Wood
Nominal Thermal Output 5,5 kW
Efficiency 80,2 %
Particulate 15 mg/m³
CO content at 13% O2 809 mg/m³
Waste Gas Mass Flow Rate 5 g/s
Waste Gas Outlet Temp. 310 ˚C
Min. Supply Pressure at Nominal Thermal Output 12 Pa
Min. required combustion air volume 21 m³/h
Depending on the insulation of the building, the nominal thermal output of 5,5 kW
indicated on 17 bis 68 m² (subject to change).
Dimensions: Height Width Depth
Stove 115,5 - 119,5 cm 51 - 54,5 cm 44,5 cm
Fire box 36 cm 33 cm 29 cm
Weight (Steel/Ceramic/Natural stone) 123/139/170 kg
* Vertical flue pipe length min. 25 cm
Flue pipe diameter 15 cm
Pipe diameter of Hase air system* 10 cm
* For separate air supply in low-energy houses and insufficient combustion air supply in the
room
where the stove is installed.

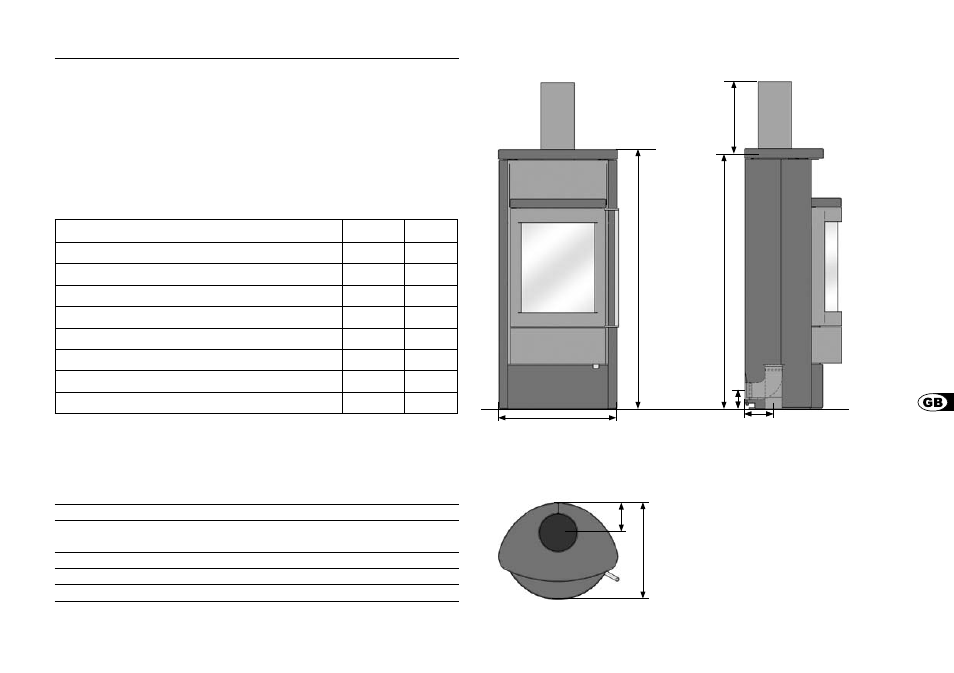

Front view
Ceramic/Natural stone: Side view
Ceramic/Natural stone:
Top view
Ceramic/Natural stone:
14
Connection height: 113
54,5
Stove height: 119,5
44,5
min. 25*
Height for the inst. of Hase air system: 11
Inst. of Hase air system
below: 18,5
