35

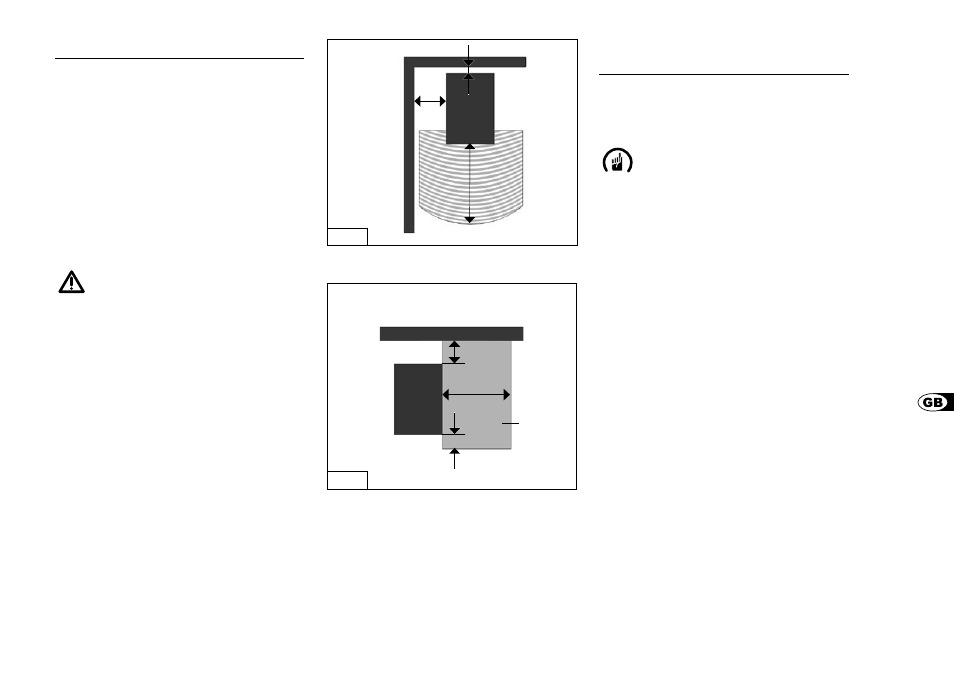

3. Safety Distances
Within a radius of 90 cm in front of and 40 cm
around the stove, fl ammable, combustible, or
heat-sensitive materials (e.g. furniture, wood or
plastic panelling, curtains, etc.) are not allowed to
be located in the heat radiating area of the fire box
window (fig. 1).
*Outside of the radiation area, it is necessary to
maintain a distance of 6 cm between the upper flue
pipe connector and any flammable material, and a
distance of 3 cm between the back flue pipe con-
nector and any flammable material (fig. 1).
WARNING!
Flammable flooring materials (e.g., wood,
laminate, carpeting,) must be protected
with a floorplate made of non-combustible
material (e.g., tiles, safety glass, slate, or
sheet steel).
The floorplate must protrude 50 cm over
the side of the firebox opening. It must
overhang the ground plot of the oven by
10 cm at the front and 17 cm at the back
(fig. 2).
4. Connection of Multiple Devices in
Direct Vent Operation
When the Cartago is operated as a direct vent
model, more than one device can be connected to
the chimney under the following conditions:
CAUTION!
All connected fireplace stoves must be in
the same building unit or in the same ef-
fective area of the ventilation system.
The inlets for the combustion air ducts
are located in areas of equal pressure
(same pressure ratios), wind-induced
pressure fluctuations have to be avoided.
The inlets for the combustion air ducts
are located in areas of equal pressure
(same pressure ratios), wind-induced
pressure fluctuations have to be avoided.
Dimensions in cm
Dimensions in cm
fig. 2
fig. 1
6/3*
40
90
floorplate
Radiating Area
17
10
50
