Harmonic Resolution Systems SXR Audio Stand User Manual
Page 14
Note: it is important to get proper torque on each Strut and the Locking Nuts to
achieve proper frame stiffness and performance.
Step 12.
Screw the Washer onto the threads of the struts completely as shown
in Photo 14. Screw all the way down until the Washer comes in contact with the
Locking Nut. Light hand tight is fine. Do not put a large torque on Washer.
Step 13.
Screw the Stand Points onto the threads of the struts completely as
shown in Photo 15. Again, just thread on completely until Stand Point is in contact
with Washer but do not over torque.

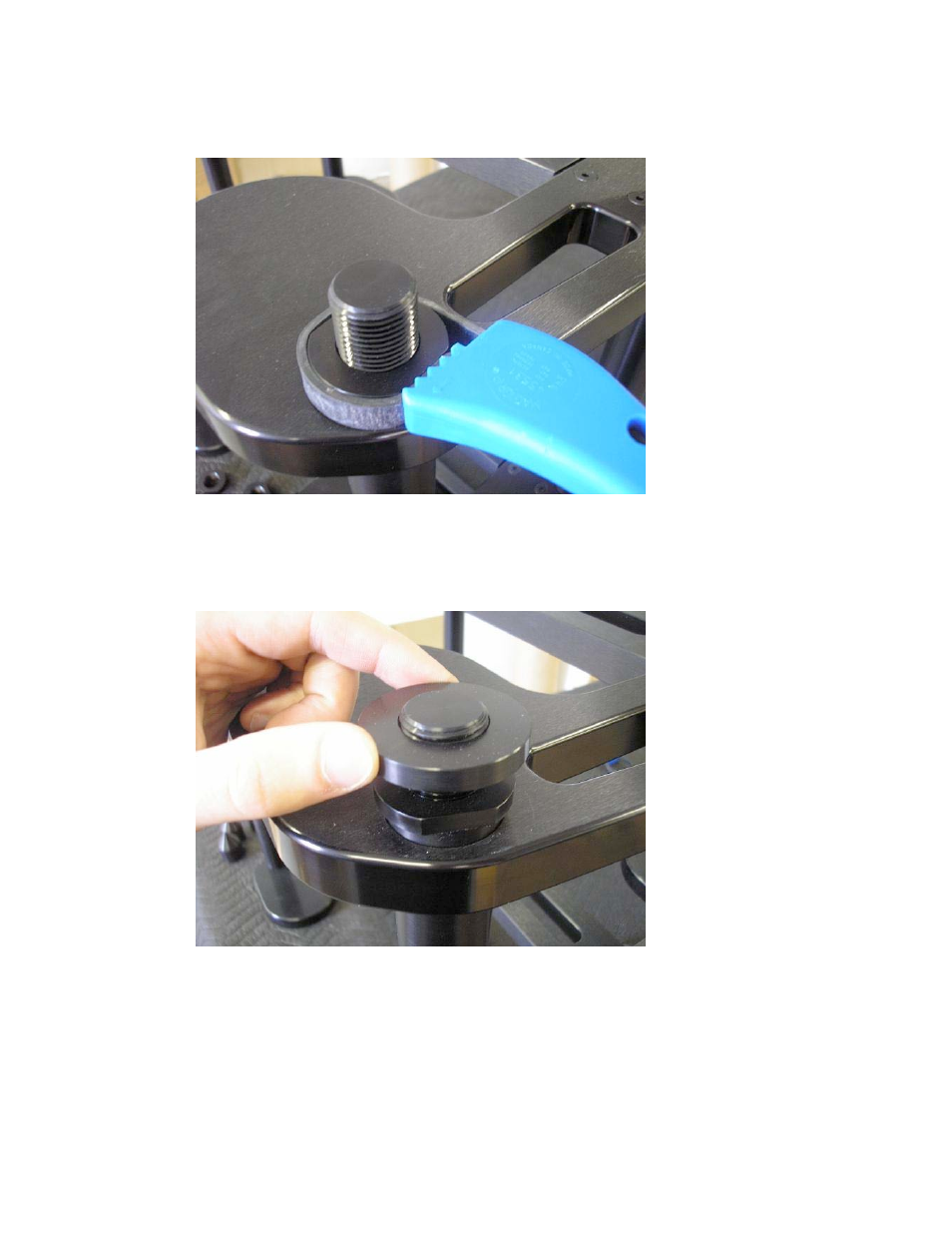

Photo 13
Photo 14
