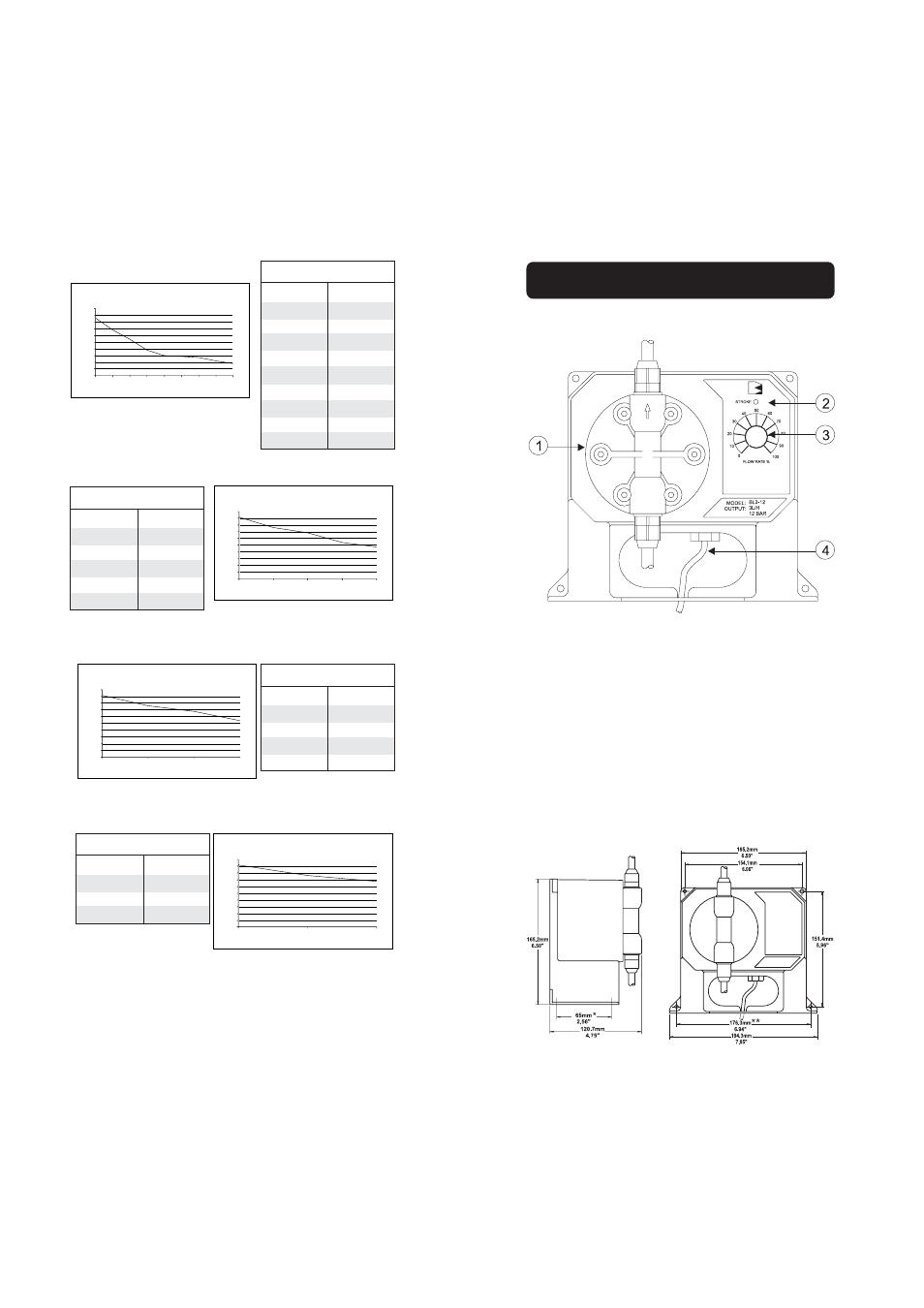

FUNCTIONAL DESCRIPTION
1. Pumphead
2. Stroke LED
3. Flow Rate % Knob
4. Power Cord
MECHANICAL DIMENSIONS
BL7
bar (psi) lph (gph)
0.5 (7.4) 17.2 (4.55)
1 (14.7)
13.6 (3.60)
2 (29.4) 10.8 (2.86)
3 (44.1) 7.6 (2.01)
4 (58.8) 6.0 (1.59)
5 (73.5) 5.7 (1.51)
6 (88.2) 5.4 (1.43)
7 (102.9) 4.4 (1.16)
8 (117.6) 3.6 (0.95)
BL10
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7)
15.2 (4.02)
2 (29.4) 13.6 (3.60)
3 (44.1) 10.8 (2.86)
4 (58.8) 9.4 (2.49)
BL15
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7)
15.2 (4.02)
2 (29.4) 13.6 (3.60)
3 (44.1) 10.8 (2.86)
BL20
bar (psi) lph (gph)
0.5 (7.4) 18.3 (4.84)
1 (14.7)
15.2 (4.02)
2 (29.4) 13.6 (3.60)
BL7
Pump output with 120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,5 1 2 3 4 5 6 7 8
BAR
L
P
H
BL10
Pump output with 120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,5 1 2 3 4
BAR
L
P
H
BL15
Pump output with 120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,5 1 2 3
BAR
L
P
H
BL20
Pump output with 120 strokes/minute
0,0
2,0
4,0
6,0
8,0
10,0
12,0
14,0
16,0
18,0
20,0
0,5 1 2
BAR
L
P
H
