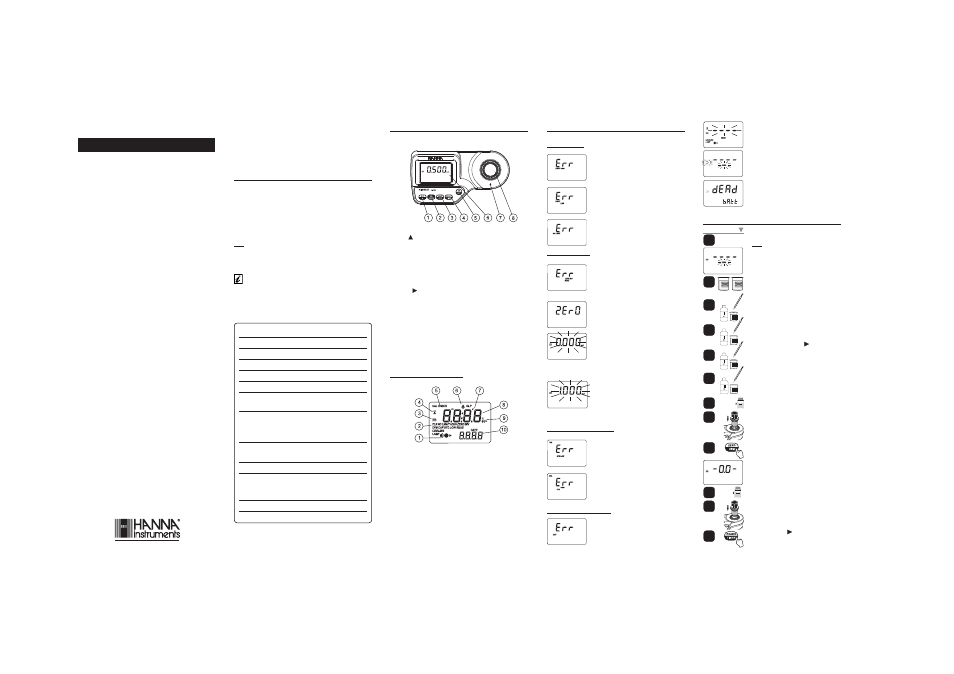

Hanna Instruments HI 96737 User Manual
Silver ism

1. GLP/ key: press to enter
GLP mode. In calibration mode press to
edit the date and time.
2. CAL CHECK key: press to perform the validation of the meter, or
press and hold for three seconds to enter
calibration mode.
3. ZERO/CFM key: press to zero the meter prior to measurement, to
confirm edited values or to confirm factory calibration restore.
4. READ/ /TIMER key: In
measurement mode, press to make a
measurement, or press and hold for three seconds to start a
pre-programmed countdown prior to measurement. In
GLP mode
press to view the next screen.
5. ON/OFF key: to turn the meter on and off.
6. Liquid Crystal Display (LCD)
7. Cuvette alignment indicator
8. Cuvette holder
DISPLAY ELEMENTS DESCRIPTION:
INSTRUCTION MANUAL
HI 96737
HI 96737
HI 96737
HI 96737
HI 96737
w w w . h a n n a i n s t . c o m
Preliminary examination:
Please examine this product carefully. Make sure that the instrument is
not damaged. If any damage occured during shipment, please notify
your Dealer.
Each HI 96737 Ion Selective Meter is supplied complete with:
• Two Sample Cuvettes and Caps
• 9V Battery
• Instruction Manual
Note:
Save all packing material until you are sure that the instrument
works correctly. Any defective item must be returned in its original
packing.
For more details about spare parts and accessories
see “Accessories”.
Dear Customer,
Thank you for choosing a Hanna product. This manual will provide you
with the necessary information for the correct use of the instrument. Please
read it carefully before using the meter. If you need additional technical
information, do not hesitate to e-mail us at [email protected].
Functional description:
Light High:
There is too much light to perform
a measurement. Please check the preparation of
the zero cuvette.
Light Low:
There is not enough light to perform
a measurement. Please check the preparation of
the zero cuvette.
No Light:
The instrument cannot adjust the
light level. Please check that the sample does
not contain any debris.
Inverted cuvettes:
The sample and the zero
cuvette are inverted.
Zero:
A zero reading was not taken. Follow the
instructions of the measurement procedure for
zeroing the meter.
Under range:
A blinking “0.000” indicates
that the sample absorbs less light than the zero
reference. Check the procedure and make sure
you use the same cuvette for reference (zero)
and measurement.
Over Range:
A flashing value of the maximum
concentration indicates an over range condition.
The concentration of the sample is beyond the
programmed range: dilute the sample and
re-run the test.
Standard Low:
The standard reading is less
than expected.
Standard High:
The standard reading is higher
than expected.
Errors and warnings:
Measurement procedure:
1• Turn the meter on by pressing ON/OFF.
Note
: For best result perform your tests between
20-24 °C.
2• When the beeper sounds briefly and the
LCD displays dashes, the meter is ready.
The blinking “ZERO” indicates that the
instrument needs to be zeroed first.
3• Fill two graduated beakers with 25 mL of
sample.
4• Add 1.0 mL of HI 93737A-0 reagent to
one beaker (the blank) and swirl gently to
mix.
5• Add 1.0 mL of HI 93737B-0 reagent to
the other beaker (the sample). Swirl gently
to mix.
6• Press and hold READ/ /TIMER for three
seconds and the display will show the
countdown timer. An audible “beep”
indicates the end of countdown period,
alternatively wait for 2 minutes. The
instrument is used like a timer.
7• Add 1.0 mL of HI 93737C-0 reagent to
each beaker, swirl and repeat the step 6.
8• Add 1.0 mL of HI 93737D-0 reagent to
each beaker, swirl and repeat the step 6.
9• Fill one cuvette up to the 10 mL mark
with blank.
10•Place the cuvette into the cuvette holder
and ensure that the notch on the cap is
positioned securely into the groove.
11•Press ZERO/CFM and the lamp, cuvette
and detector icons will appear on the display,
depending on the measurement phase.
After a few seconds the display will show
“-0.0-”
. The meter is now zeroed and
ready for measurement. Remove the cuvette.
12•Fill a second cuvette up to the 10 mL
mark with the reacted sample.
13•Insert the second cuvette into the holder
and ensure that the notch on the cap is
positioned securely into the groove.
14•Press READ/ /TIMER. In all cases the
lamp, cuvette and detector icons will appear
on the display, depending on the
Measurement
1. The measuring scheme (lamp, cuvette, detector), appears during
different phases of zero or reading measurement
2. Error messages and warnings
3. The battery icon indicates the charge state of the battery
4. The hourglass appears when an internal check is in progress
5. Status messages
6. The chronometer appears when the reaction timer is running
7. The month, day and date icons appear when a date is displayed
8. Four digit main display
9. Measuring units
10. Four digit secondary display
ON ZERO READING:
ON SAMPLE READING:
DURING CALIBRATION PROCEDURE:
OTHER ERRORS AND WARNINGS:
Cooling lamp:
The instrument waits for the
lamp to cool down.
Battery low:
The battery must be replaced soon.
Dead battery:
This indicates that the battery
is dead and must be replaced. Once this
indication is displayed, normal operation of the
instrument will be interrupted. Change the
battery and restart the meter.
Cap error:
Appears when external light enters
in the analysis cell. Assure that the cuvette cap
is present.
Silver
ISM
2
9
Technical specifications:
Range
0.000 to 1.000 mg/L
Resolution
0.001 mg/L
Accuracy
±0.005 mg/L ±10% of reading @25°C
Typical EMC Dev.
±0.001 mg/L
Light Source
Tungsten Lamp
Light Detector
Silicon Photocell with narrow band interfe
rence filter @ 575 nm
Method
Adaptation of the 1-(2-pyridylazo)-2-naphtol
PAN method. The reaction between silver
and reagents causes an orange tint in the
sample.
Environment
0 to 50°C (32 to 122°F);
max 95% RH non-condensing
Battery Type
1 x 9 volt
Auto-Shut off
After 10' of non-use in measurement mode;
after 1 hour of non-use in calibration mode;
with last reading reminder.
Dimensions
192 x 104 x 69 mm (7.6 x 4.1 x 2.7 ”)
Weight
360 g (12.7 oz.).
3
4
5
10
6
7
8
10 mL
blank
11
10 mL
sample
12
13
