Hanna Instruments HI 96739 User Manual

Fluoride high range ism

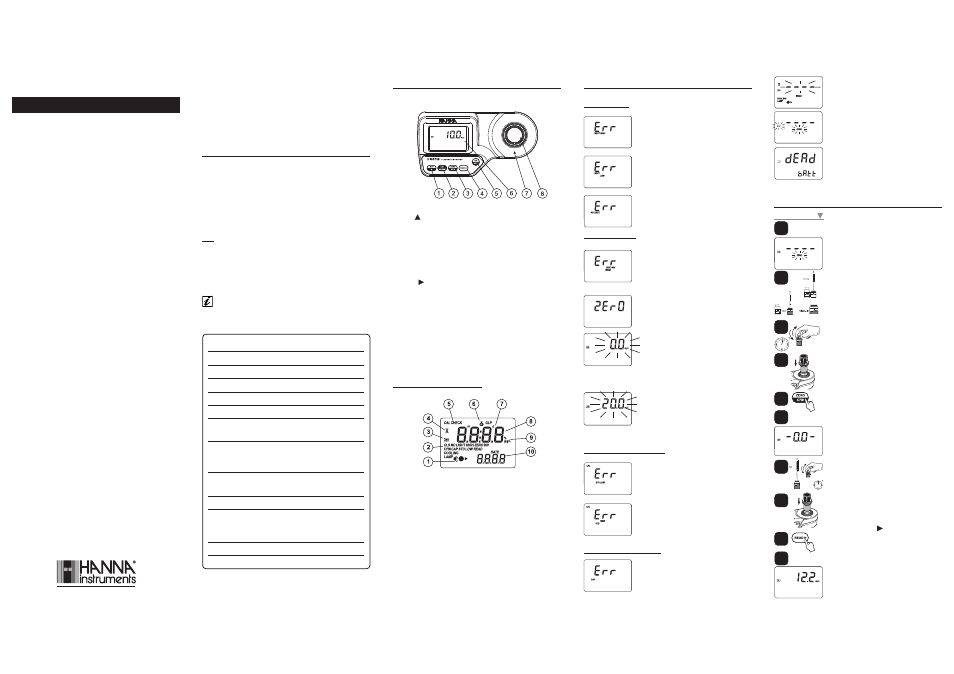

background image

1. GLP/ key: press to enter

GLP mode. In calibration mode press to

edit the date and time.

2. CAL CHECK key: press to perform the validation of the meter, or

press and hold for three seconds to enter

calibration mode.

3. ZERO/CFM key: press to zero the meter prior to measurement, to

confirm edited values or to confirm factory calibration restore.

4. READ/ key: In

measurement mode, press to make a measurement.

In

GLP mode press to view the next screen.

5. ON/OFF key: to turn the meter on and off.

6. Liquid Crystal Display (LCD)

7. Cuvette alignment indicator

8. Cuvette holder

DISPLAY ELEMENTS DESCRIPTION:

INSTRUCTION MANUAL

HI 96739

HI 96739

HI 96739

HI 96739

HI 96739

w w w . h a n n a i n s t . c o m

Preliminary examination:

Please examine this product carefully. Make sure that the instrument is
not damaged. If any damage occured during shipment, please notify
your Dealer.
Each HI 96739 Ion Selective Meter is supplied complete with:
• Two Sample Cuvettes and Caps
• 9V Battery
• Instruction Manual

Note:

save all packing material until you are sure that the instrument
works correctly. Any defective item must be returned in its original
packing.

For more details about spare parts and accessories
see “Accessories”.

Dear Customer,
Thank you for choosing a Hanna product. This manual will provide you
with the necessary information for the correct use of the instrument. Please
read it carefully before using the meter. If you need additional technical
information, do not hesitate to e-mail us at [email protected].

Functional description:

Light High:

There is too much light to perform

a measurement. Please check the preparation of
the zero cuvette.

Light Low:

There is not enough light to perform

a measurement. Please check the preparation of
the zero cuvette.

No Light:

The instrument cannot adjust the

light level. Please check that the samples does
not contain any debris.

Inverted cuvettes:

The sample and the zero

cuvette are inverted.

Zero:

A zero reading was not taken. Follow the

instructions of the measurement procedure for
zeroing the meter.

Under range:

A blinking “0.0” indicates that

the sample absorbs less light than the zero
reference. Check the procedure and make sure
you use the same cuvette for reference (zero)
and measurement.

Over Range:

A flashing value of the maximum

concentration indicates an over range condition.
The concentration of the sample is beyond the
programmed range: dilute the sample and
re-run test.

Standard Low:

The standard reading is less

than expected.

Standard High:

The standard reading is higher

than expected.

Errors and warnings:

Measurement procedure:

1• Turn the meter on by pressing ON/OFF.

2• When the beeper sounds briefly and the

LCD displays dashes, the meter is ready.
The blinking “ZERO” indicates that the
instrument needs to be zeroed first.

3• Add with one syringe exactly 2.00 mL of

HI 93739A-0

buffer reangent to the

cuvette and use the pipette to fill up the
cuvette to the 10 mL mark with HI
93739B-0

indicator reagent.

4• Replace the cap and invert several times

to mix. Wait for 1 minute.

5• Place the cuvette into the cuvette holder

and ensure that the notch on the cap is
positioned securely into the groove.

6• Press ZERO/CFM and the lamp, cuvette

and detector icons will appear on the display,
depending on the measurement phase.

7• After a few seconds the display will show

“-0.0-”

. The meter is now zeroed and

ready for measurement. Remove the cuvette.

8• Add with the other syringe exactly 1.00

mL of sample.

9• Replace the cap and invert several times

to mix. Wait for 1 minute.

10•Replace the cuvette into the holder and

ensure that the notch on the cap is
positioned securely into the groove.

11•Press READ/ and the lamp, cuvette

and detector icons will appear on the
display, depending on the measurement
phase.

12•At the end of measurement, the instrument

directly displays concentration in mg/L of
flouride on the LCD.

Measurement

1. The measuring scheme (lamp, cuvette, detector), appears during

different phases of zero or reading measurement

2. Error messages and warnings
3. The battery icon indicates the charge state of the battery
4. The hourglass appears when an internal check is in progress
5. Status messages
6. The chronometer appears when the reaction timer is running
7. The month, day and date icons appear when a date is displayed
8. Four digit main display
9. Measuring units
10. Four digit secondary display

ON ZERO READING:

ON SAMPLE READING:

DURING CALIBRATION PROCEDURE:

OTHER ERRORS AND WARNINGS:

Cooling lamp:

The instrument waits for the

lamp to cool down.

Battery low:

The battery must be replaced soon.

Dead battery:

This indicates that the battery

is dead and must be replaced. Once this
indication is displayed, normal operation of the
instrument will be interrupted. Change the
battery and restart the meter.

Cap error:

Appears when external light enters

in the analysis cell. Assure that the cuvette cap
is present.

Fluoride High Range

ISM

2

6

7

10

5

8

4

11

12

3

Technical specifications:

Range

0.0 to 20.0 mg/L

Resolution

0.1 mg/L

Accuracy

±0.5 mg/L ±3% of reading @ 25°C

Typical EMC Dev.

±0.1 mg/L

Light Source

Tungsten Lamp

Light Detector

Silicon Photocell with narrow band interference
filter @ 575 nm

Method

Adaptation of the SPADNS method. The
reaction between flouride and the liquid
reagent causes a red tint in the sample.

Environment

0 to 50°C (32 to 122°F);
max 95% RH non-condensing

Battery Type

1 x 9 volt

Auto-Shut off

After 10' of non-use in measurement mode;
after 1 hour of non-use in calibration mode;
with last reading reminder.

Dimensions

192 x 104 x 69 mm (7.6 x 4.1 x 2.7”)

Weight

360g (12.7 oz.).
