Desa H.S.I. - Manual (Page 12)

112846-01A
12
For more information, visit www.desatech.com For more information, visit www.desatech.com
Power Plug
120V/60Hz
Blue
Blue
White
White
Photocell
Ignition Control
Assembly Green
Green
Red
Black
Black
Motor
Thermostat
Photocell
Photocell
Ignitor
Motor Return
AC Neutral (L2)
120V (L1)
Ignitor
Motor
White
White
Ignitor

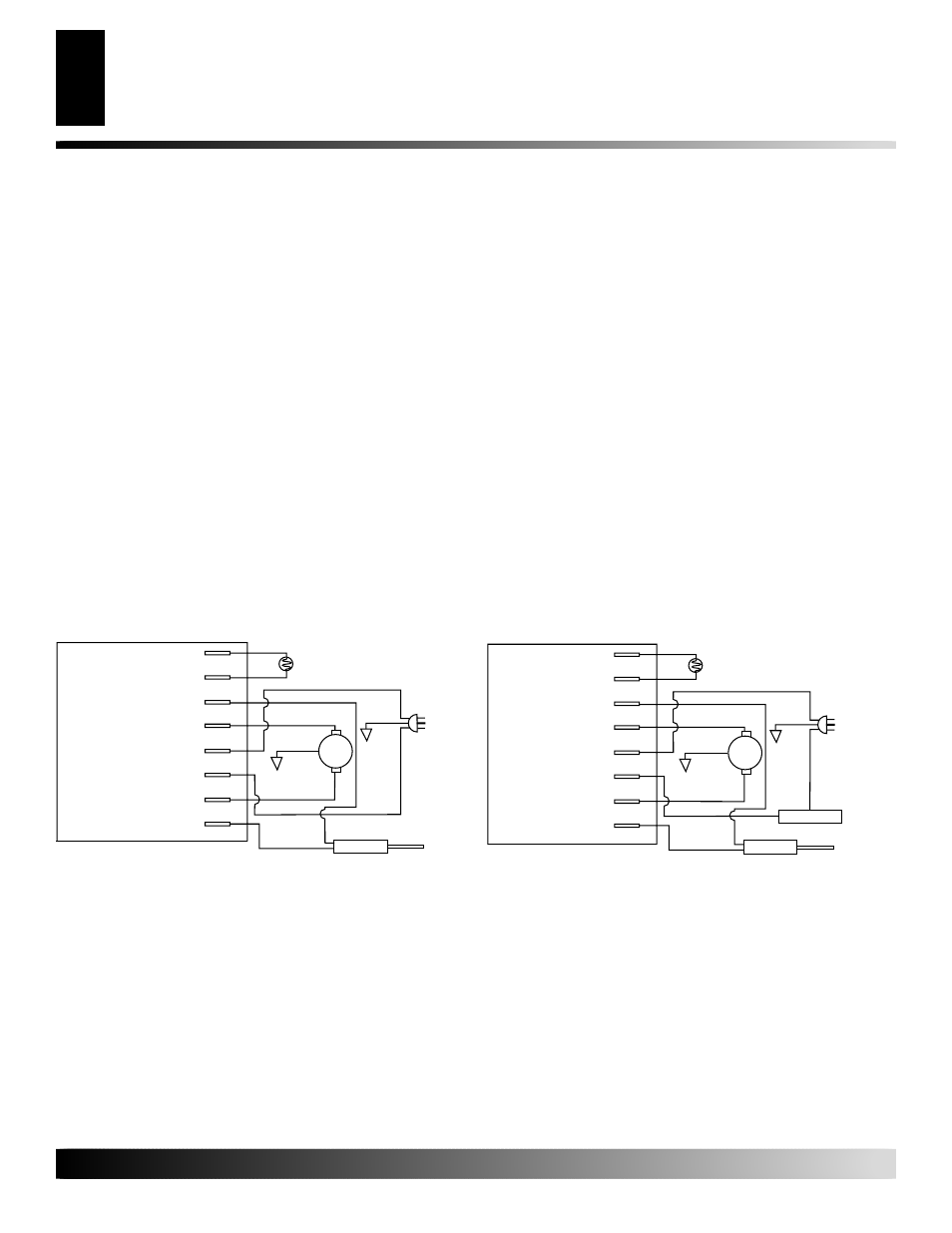

Figure 22 - Wiring Diagram with Thermostat
WIRING DIAGRAMS
SPECIFICATIONS
WIRING DIAGRAMS
Power Plug
120V/60Hz
Blue
Blue
White
White
Photocell
Green
Green
Red
Black
White
White
Motor
Ignitor
Ignition Control
Assembly
Photocell
Photocell
Ignitor
Motor Return
AC Neutral (L2)
120V (L1)
Ignitor
Motor
Figure 21 - Wiring Diagram without Thermostat
Output Rating (Btu/Hr) 55,000/60,000
Fuel Use only kerosene, #1/#2 diesel/fuel oil, JET A or JP-8 fuels*
Fuel Tank Capacity (U.S. Gal./Liters) 5/18.9
Fuel Consumption (Gal. Per Hr/Liters Per Hr) .44/1.67
Pump Pressure (psi) 3.4
Electric Requirements 120 V/60 HZ
Amperage (Normal Run) 2.0
Motor RPM 1725
Hot Air Output (CFM) 180
Motor HP 1/15
Shipping Weight 33/15
(Approximate Pounds/Kilograms)
Heater Weight without Fuel 29/13.1
(Approximate Pounds/Kilograms)
* Use of #2 diesel & fuel oil will result in noticeable odor and could require additional fuel filter maintenance. Use in extreme cold
temperatures may require nontoxic anti-icer additives.
SPECIFICATIONS
