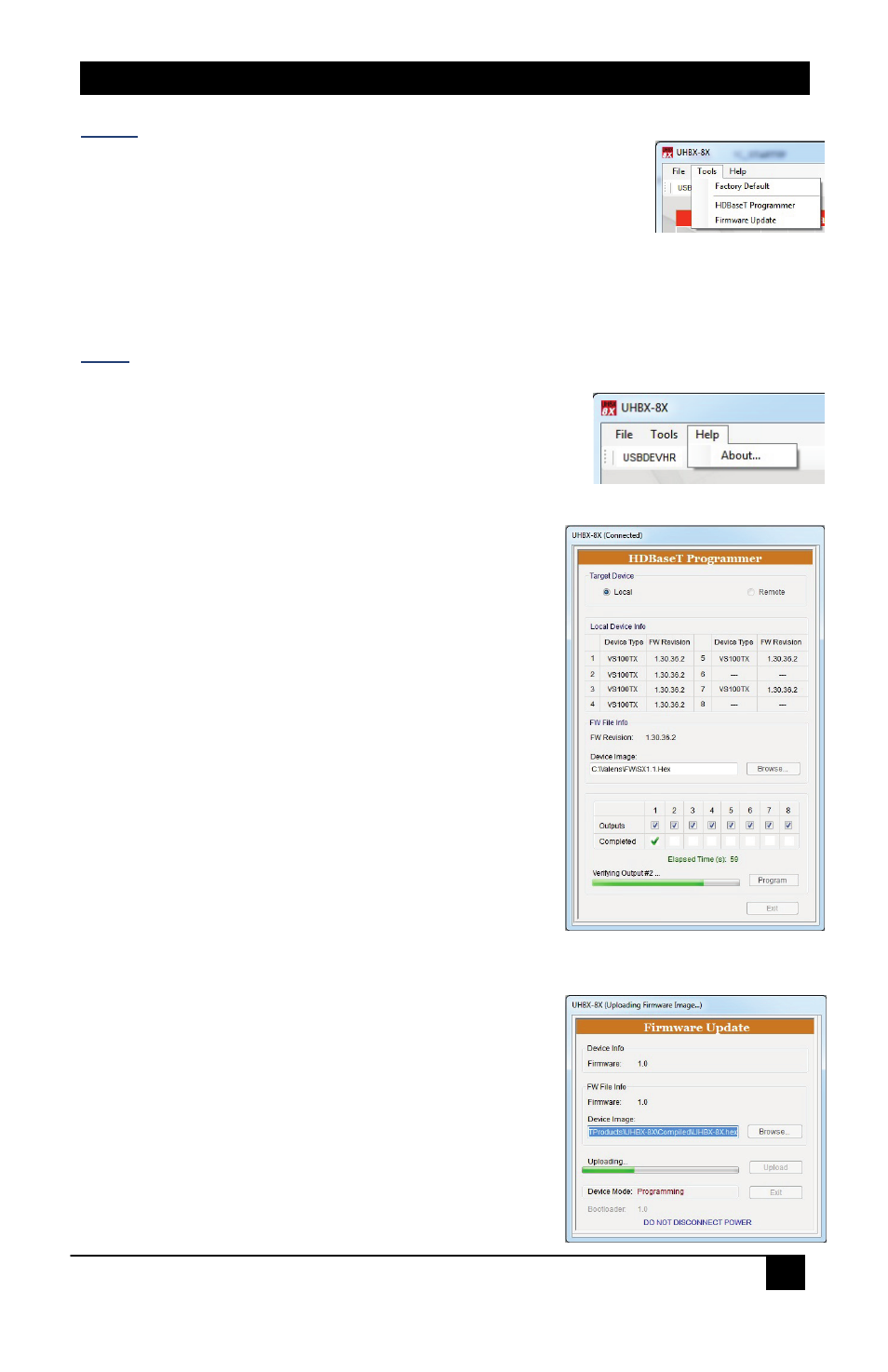

The Tools menu consists of the following menu items as shown.
Tools

Factory Defaults – Restore the device to factory default
settings.

HDBaseT Programmer – Can be used to update any HDBaseT extender module.
 Firmware Update – Allow you to update any future device firmware.
The Help menu has the About selection as shown.
Help

About… - Display the current version of UHBX-8X
GUI, device firmware, and USB serial number.
2.8. HDBaseT Programmer
This HDBaseT programmer can be used to program the
local HDBaseT extender modules inside the UHBX-8X
device. There are a total of 8 modules, and one module
is used at each HDBaseT ouput.
The HDBaseT Programmer can be found under the
Tools menu. When the HDBaseT Programmer is
selected, the UHBX-8X GUI will open an HDBaseT
Programmer window as shown above.
Next, select a firmware to program it into a desired
HDBaseT output module. If all eight modules are needed
to be programmed, all eight boxes next to Outputs 1-8
must be checked.
Once, it is ready for program, just click the Program
button.The HDBaseT Programmer will verify the firmware in the module after it has been
programmed. A completed or failed status will be shown.
2.9. Firmware Update
The firmware update can be found under the Tools
menu.
After the firmware update is completed successfully, the
UHBX-8X will be running as normal.
