The Model 400-DX has special compensation to drive long video cables on outputs 1 & 2. Use the following table to
set the dip switch
Dip Switch Setting Range of Cable on Outs 1 & 2
aa 0 to 100 feet
ba 100 to 250 feet
ab 250 to 400 feet
bb 400 to 600 feet
If you are using cables longer than 25 feet on the output of the splitter, make sure that the cable is connected to a
monitor for proper termination, otherwise disconnect the cable from the splitter.

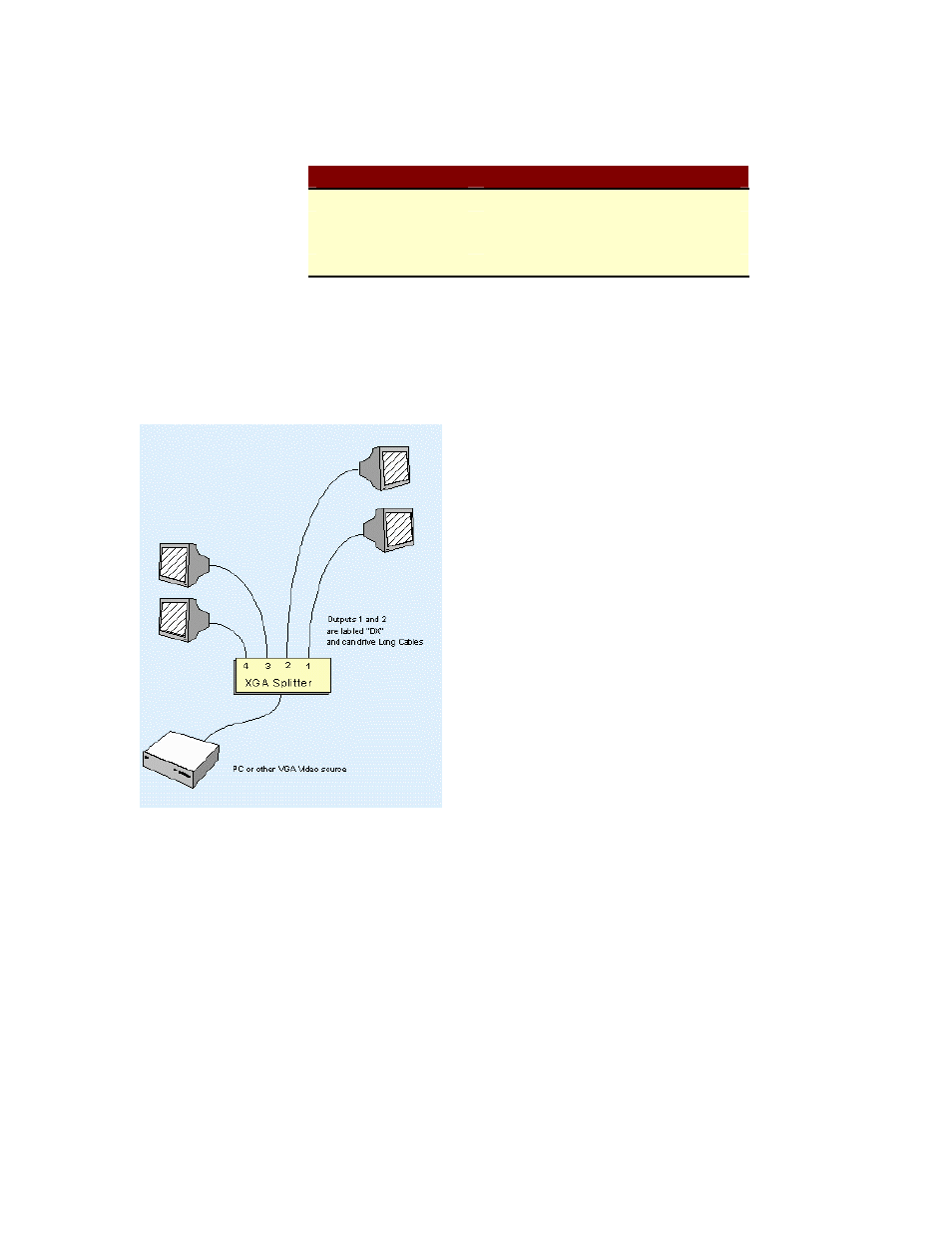

Block Diagram
Specifications
Equipment included:
• UL approved 110 vac adapter
• 6 ft high-resolution input cable
• User’s Manual
Dimensions:
L x W x H:
7.25x2.75x1.25 inch
Weight:
2 lbs
Video Specs:
Connectors HDD15
female
Coupling DC
Video Level
0.7 v p-p
Video Gain 1 nominal
