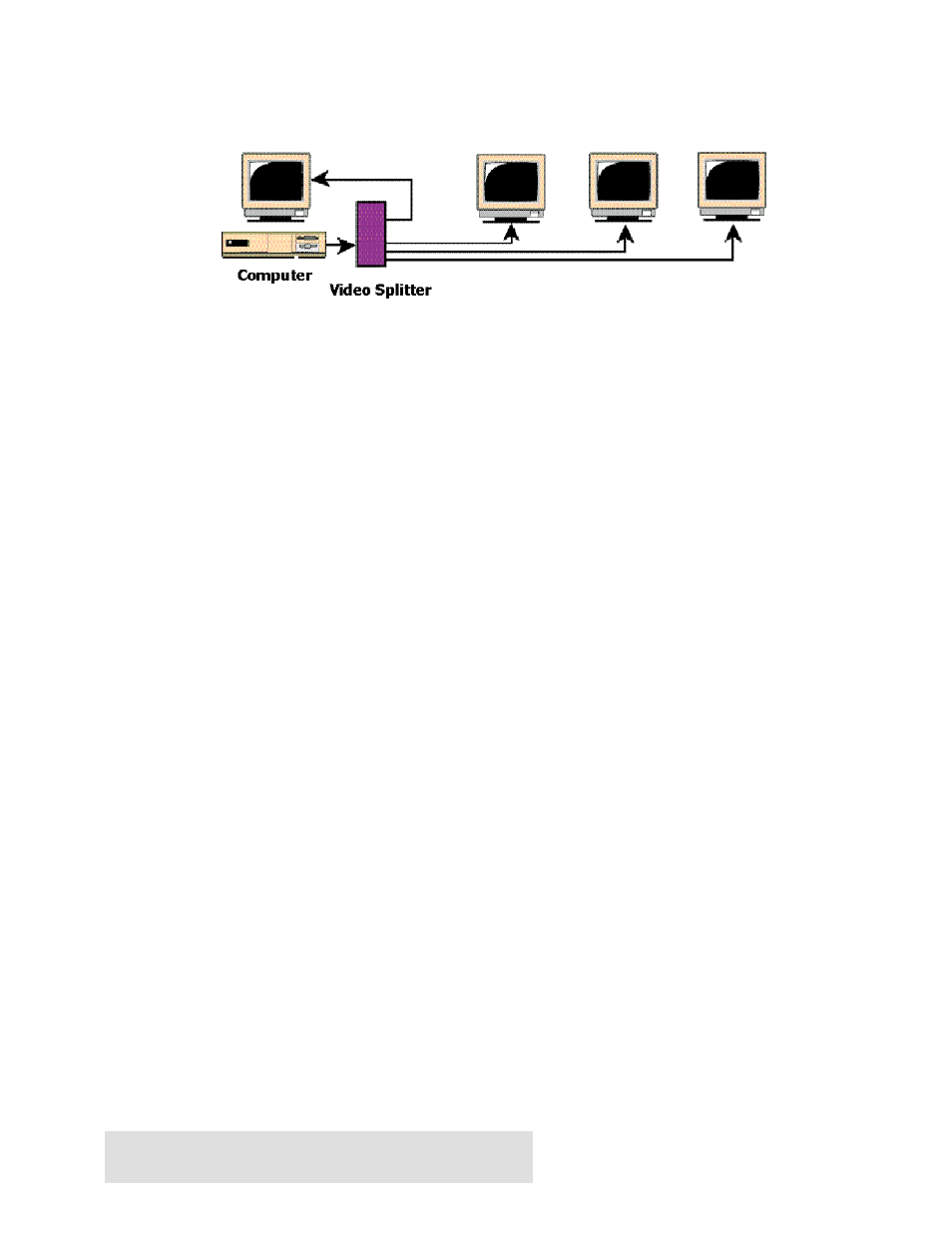

Connection Diagram
Specifications
Equipment included:
• North American AC power cord (European also available upon request)
• 6 ft, high-resolution (multi-coaxial) video input cable
• User’s Manual
Dimensions: 15.5 " wide x 3.19" high x 10" deep
Video Specs:
Connectors Input and Outputs: HDD15 female
Coupling DC
Signal Level Video: 0.7 v p-p
Bandwidth: Range: DC to 250 MHz Min. - 350 MHz Max.
Input impedance: Video: 75 ohms on RGB, 330 ohms on H,V
Input Power Requirement: 100 to 240 v AC, 50~60 Hz, 25 Watts
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
