3 4
4. Pull up the screen with constant speed and stop at desired position for three minutes so that the screen
can be installed . ( Figure 7 - 10 )
5. Adjust the foot wheel when the ground is not even. To be exact, clockwise rotation raises the foot while
counterclockwise rotation lowers the foot, with limits of five circles or within 8mm . ( Figure 11 - 12 )
1. Grasp the handle and retract the screen into the casing till the handle base is firmly fastened in the tube lock
. ( Figure 13 - 15 )
2. Rotate the feet in line with the casing. Retraction is completed . ( Figure 16 - 18 )

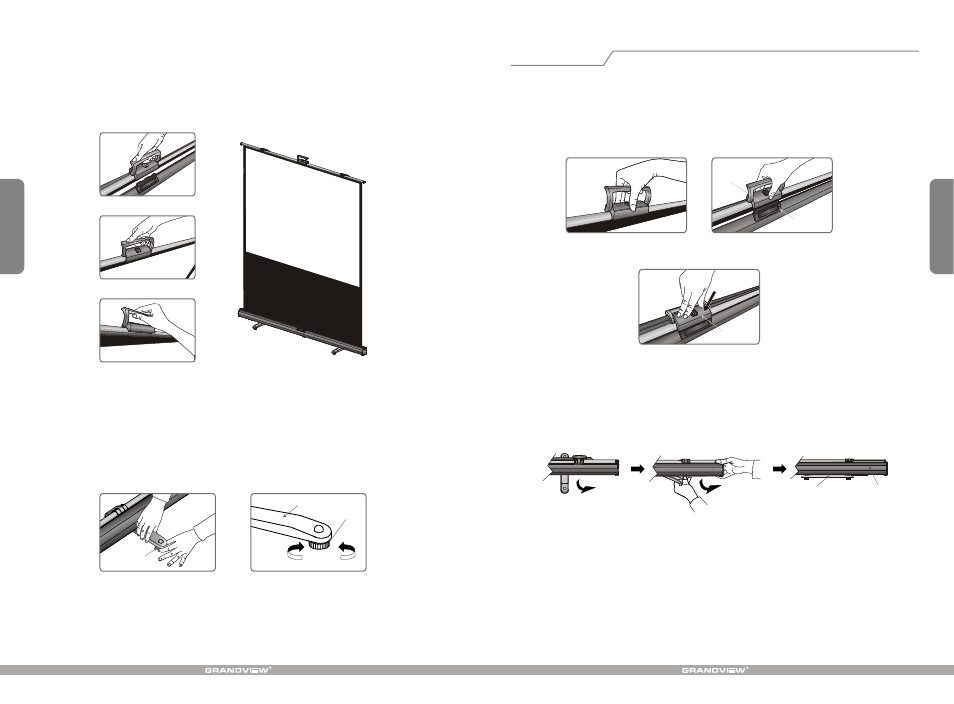

Figure 7
Figure 8
Figure 9 Figure 10
Figure 11 Figure 12
foot wheel
Foot
Raise Lower
foot wheel
Figure 13 Figure 14
Figure 15
Figure 16 Figure 17 Figure 18
Retract screen
Foot Casing
Press gently
Handle base
Front base
Handle base
