Grandview PT-L(Tripod Classic Screen) - Manual (Page 3)

2 5

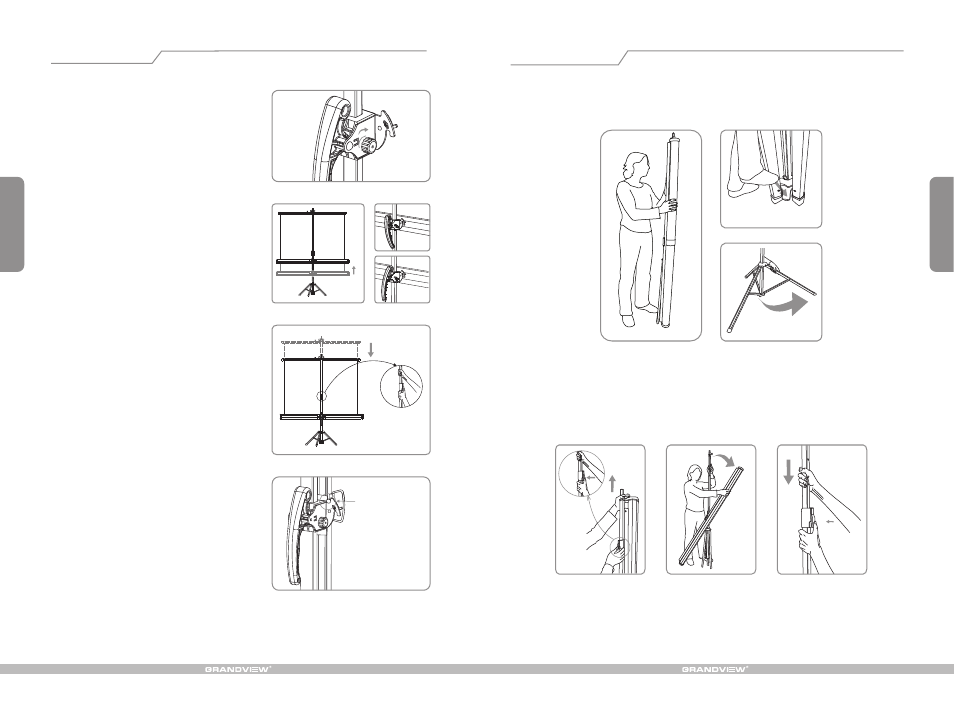

1. Grasp the screen handle with one hand and step the toe release plate to fully stretch the tripod
on the ground. (Figure1-3)
Lock
Unlock
Lock
Unlock
Lock
Unlock
2. Press the Magic button, and raise the adjustable uphold bar to release housing from the
plastic hook. (Figure 4)
3. Rotate the housing counterclockwise to horizontal level. (Figure 5)
4. Press the Magic button to low down adjustable uphold bar to the lowest point. (Figure 6)
1 . Tu r n t h e H o u s i n g p o s i t i o n l o c k t o “L O C K”.
( F i g u r e 1 6 )
2. After release the Plastic handle to Unlocked
condition, please hold the handle toraise the
housing until you hear a sound“DA”, which
means housing is locked, then please also
lockup the Plastic handle to Locked condition.
(Figure 17-19)
3. Hold the Adjustable uphold bar with your right
hand, then press the Magic button with your left
hand to lower down the Adjusting uphold bar to
down most point. (Figure 20)
4. Take off the Stainless bar ring from the Plastic
hook and retract the screen slowly into the
housing. After the housing is rotated to parallel
with Aluminum bar, then adjust the Adjustable
uphold bar to make the Plastic hook on its top to
lock onto a hole on the housing . At this time you
can fully retract the Metal tripod stand. (Remarks:
Please assure the Top bar is locked onto the
Aluminum stand. Figure 21)
Figure 1
Figure 2
Figure 3
Figure 4 Figure 5 Figure 6
Screen displaying
Figure 16
Figure 17
Figure 18
Figure 19
Figure 20
Figure 21
Locked
condition
Unlocked
condition
Remarks: Assure the Top bar is
locked onto the Aluminum stand.
Screen retraction
