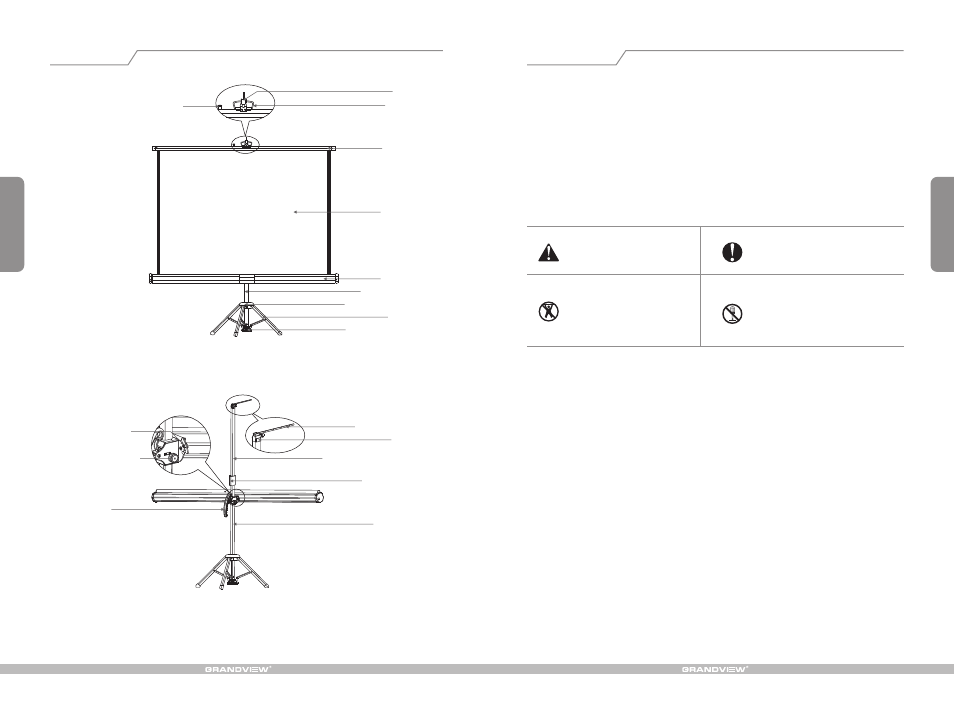

1 6
Handle
Hook
Rivet
Top bar
Fabric
Housing
Stainless bar
Tripod connector
Tripod
Toe release plate
Extension bar
Hook
Adjustable uphold bar
Magic button
Stand bar
Plastic handle
Housing adjustment screw
Level adjustment screw
Description
Ignoring the safety warnings may
lead to injuries and/or damaging
the product.
Refrain from hanging anything on the
screen as it may cause the screen to
fall.
Roll up the screen after every use.
Leaving it hanging for a long period
of time may cause the fabric to loosen.
Please contact your local dealer for
repairs or maintenance. Please contact
our company if you have any further
questions. Avoid taking apart the
fixtures yourself. Loose parts may
cause the screen to fall.
Warnings
Do not take apart and replace with unknown parts. If there are any problems, please contact your local dealer.
Product specifications are subject to change.
1. Please make sure the Tripod stand is fully extending during using, this can assure stability and safety.
2. You can lower down the screen height according to adjusting the height of Adjusting uphold bar. But
please hold the Adjusting uphold bar first then press the Magic button(refer to step 3 of Screen
retraction for detail), while not it would lead to damage to the screen.
3. There is a nail at the middle of screen Top bar, please make sure it to be locked onto the slot nearby
the Plastic handle. Otherwise it would cause damage during carrying.
4. During retracting, please make sure the Plastic hook lock into a hole on the housing.
5. After folding the screen, make sure that the security lock is turned to Locked position. otherwise,
accident or damage of the screen would happen.
