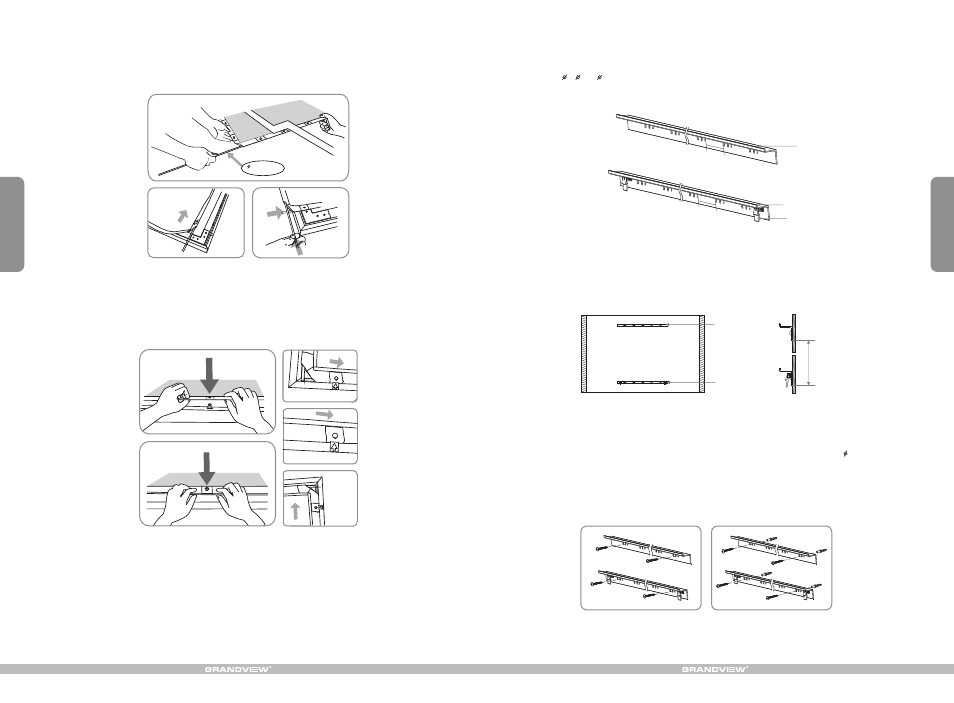

5. Double align Fixing lugs with arrows. Using the Tensioning bar, pull fabric eyelets over Fixing lugs by your

hands clockwise (Tips: arrange Horizontal tensioning bars first then Side tensioning bars). (Figure 11-15)

6. There is locking system on the Bottom bracket but no on the Top backet, brackets' length are at half of

Horizontal frames'. And there is 5 groups of holes on each brackets with 10cm distance, each group has

3 holes at 5 8 & 6 from left to right. Brackets are suggested to mount at the middle point of frame with

only 30% fluctuation if needed. (Figure 16)

Up bracket

Bottom bracket

Secure button

10CM

7. According to AA distance list on first page, mount two brackets onto the wall separately, assure they are at

horizontal level. (Figure 17-18)

Up bracket

Bottom bracket

4. Unfold screen fabric and insert 4 Tensioning bars seperately into 4 different fabric grooves, be careful not

to poke the fabric. (Figure 8-10)

Figure 8

Figure 10

Figure 9

5mm Tensioning
bar

Figure 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 16

Figure 17

Figure 18

Here below are the mounting details:

a) Wood wall mounting: to fix the brackets onto the wall using 4 provided Wooden screws 5 x 40, two screws

for each brakcet. (Figure 19)

b) Concrete wall mounting: to use an electric drill to drill 4 holes ( 2 holes for each bracket), and hammer the

provided tapping anchors into each hole, then fix the brackets onto the wall by fastening the tapping screws

to the tapping anchors. (Figure 20)
