Loading The Ribbon
 A New Ribbon Module Installation

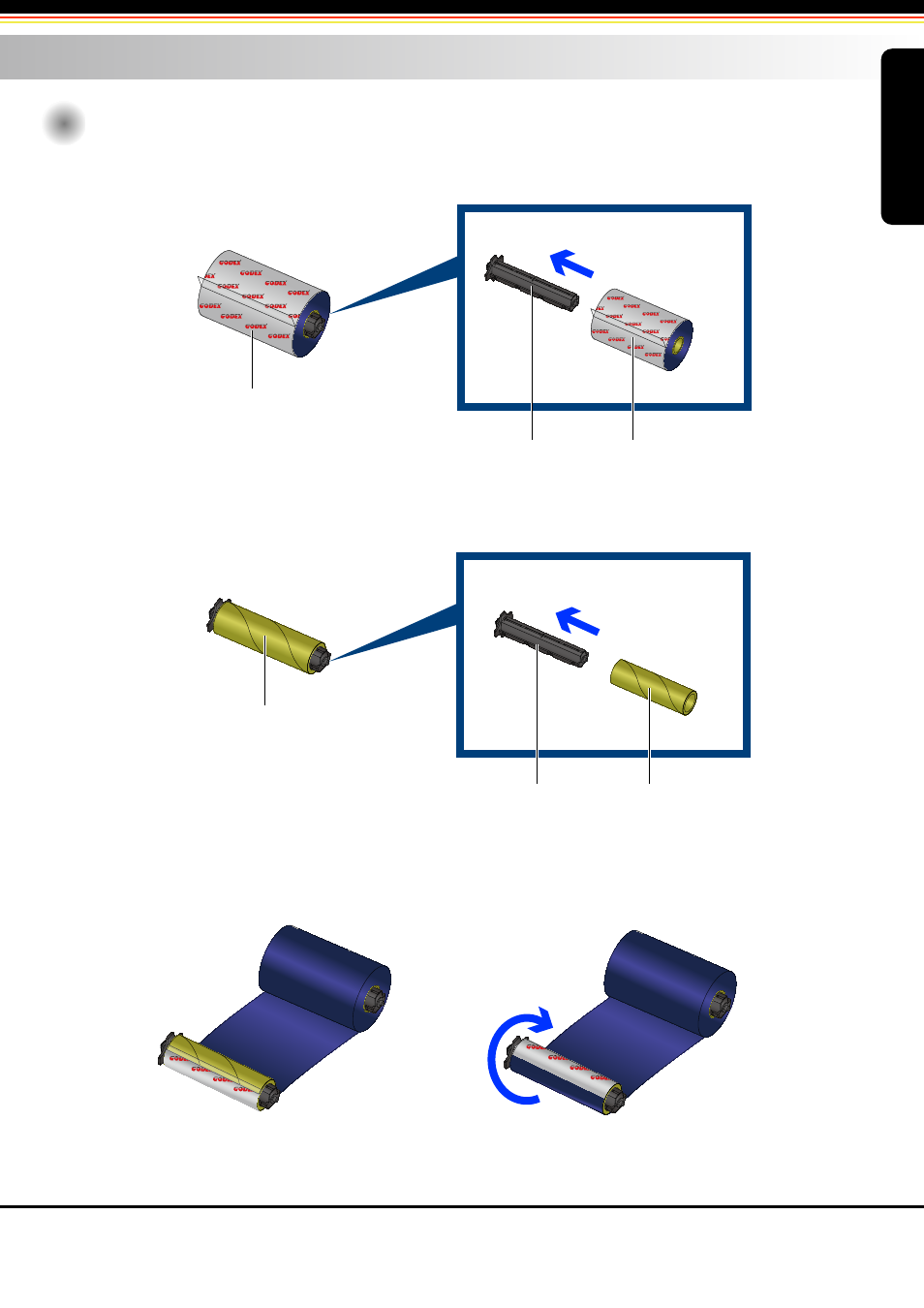

Place the new ribbon on the hub which forms a ribbon supply hub.
Place the empty ribbon core on the hub which forms a ribbon rewind hub.
Stick the ribbon supply hub on the ribbon rewind hub and wind the rewind hub 2~3 circles.
2-3
RIBBON SUPPLY HUB
Place on the hub
RIBBON HUB NEW RIBBON
Place on the hub
EMPTY RIBBON CORE RIBBON HUB
RIBBON FEED MODULE
Printer Setup
005
Wind the ribbon around the core
