OWNER’S MANUAL
FIREPLACE
INSTALLATION
Continued
WIRELESS HAND-HELD
REMOTE CONTROL
Installing Battery into Receiver
1. Open bottom louver and locate the
switch bracket on the left.
2. Unscrew the switch bracket. Lean
bracket forward so you are able to ac-
cess the back of the remote receiver.
3. Locate the battery clip mounted on the
back of the receiver. Slide a 9-volt bat-
tery (not included) through the clip.
4. Attach the terminal wires to the battery.
5. Replace the switch bracket.

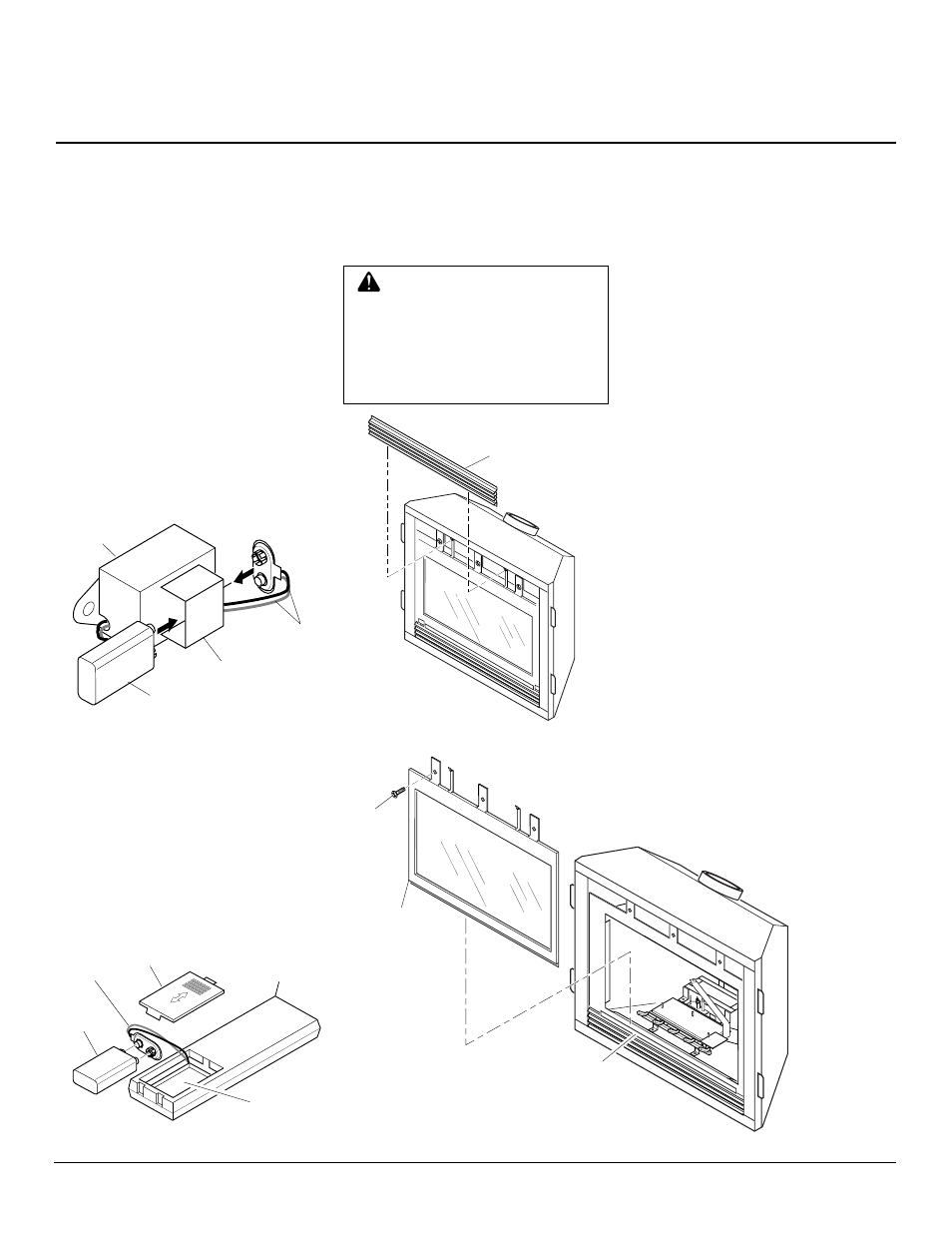

Figure 40- Attaching Battery to Receiver
Installing 9-Volt Battery in Hand-
Held Remote Control Unit
1. Remove battery cover on back of re-
mote control unit.
2. Attach terminal wires to a 9-volt bat-
tery (not included). Place battery into
the battery housing.
3. Replace battery cover onto remote con-
trol unit.
Figure 41 - Installing Battery in Hand-
Held Remote Control Unit
Battery
Cover
9-Volt
Battery
Terminal
Wires Remote
Control Unit
Battery
Housing
9-Volt Battery
Receiver
Terminal
Wires
Battery Clip
REMOVING/REPLACING
GLASS DOOR
CAUTION: Do not operate this
fireplace with a broken glass door
panel. Do not operate this fire-
place without the glass door panel
securely in place. For replace-
ment part information see
Re-
placement Parts, page 30.
1. Remove the upper louver panel by lift-
ing upward and out (see Figure 42).
2. Remove the screws from the three tabs
at the top of the glass door while hold-
ing door securely keeping it from fall-
ing forward.
3. Grasp door by both sides and ease it
upward off of the lower bracket (see
Figure 43).
4. To replace glass door, follow the above
instructions in reverse.
You must remove glass door to install op-
tional brick liners, logs, lava rock, and em-
ber material.
Figure 42 - Removing Top Louver Panel
Top Louver
Panel
Continued
Figure 43 - Removing/Replacing Glass Door
Glass Door
Assembly
Screw
Lower Bracket for
Glass Door Assembly
