0020140263_00 - 11/11 - Glow-worm - 5 -

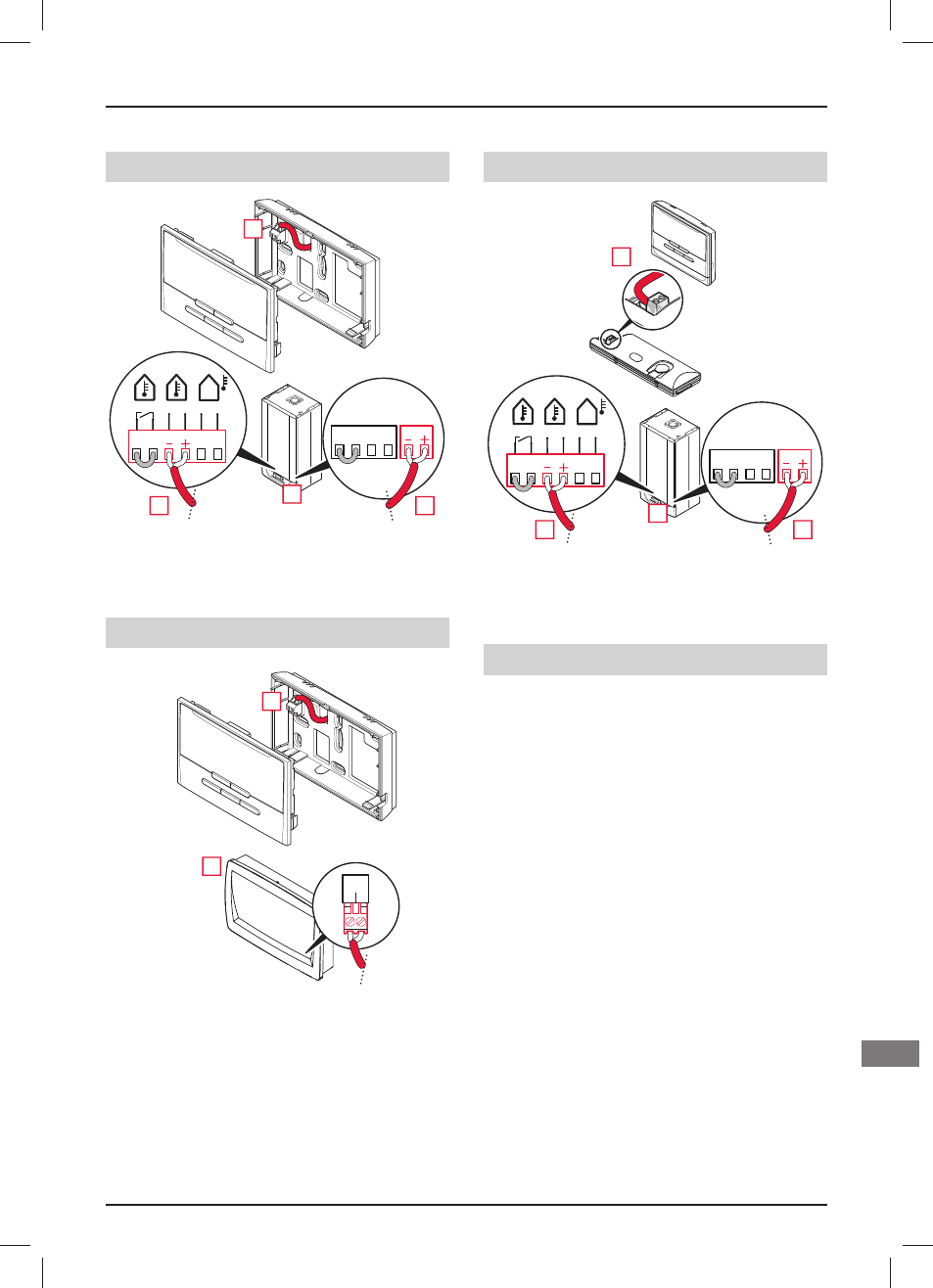

4.1 Wired room thermostat
connected to a boiler
230
V
RT AQ
24 V
BUS
RT 24V T° ext BUS
BUS 24 V
B
B1 B2
A
Key
A connection on the room thermostat:
B connection to the EBUS 24V terminal on the boiler
(examples B1 & B2)
connected to Smart Wiring Centre 2
1 2
- +
EBUS
A
B
Key
A connection on the room thermostat:
B connection to the EBUS 24V terminal on the
control box
4.2 Wireless room thermostat
connected to a boiler
230 V
RT AQ
24 V
BUS
RT 24V T° ext
BUS
BUS 24 V
B
B1 B2
A
Key
A connection on the radio receiver:
B connection to the EBUS 24V terminal on the boiler
(examples B1 & B2)
connected to Systempro
The radio receiver function is integrated into
the Systempro. There is no electrical connection
to be made in an installation including a
Systempro.
5 Commissioning
• Switch on the appliances that make up the
installation (see the installation manuals).
• If using the Climapro
1
RF, remove the insulating
tab in the room thermostat battery compartment.
• Follow the instructions given by the
installation assistant.
• Make the adjustments and select the necessary
options depending on the installation.
• Finalise the installation in the installer menu.
• Check that these main settings are
compatible with the installation.
• Check the installation by issuing a heating
demand.
INSTALLER
