Bar-Restaurant - 2 Zone
Layout Overview
This basic bar/restaurant example illustrates a simple installation to control 3 sources and 2
zones of audio within a 7,500 sq ft building. It demonstrates the effective use of the DRM4000
router for a basic 2 zone BGM system. The two zones consist of one for the bar area and the
other for the main dining room. The system also has one paging station at the hostess stand.
The three sources are for a music server, tuner and television audio.
The C4.2’s are tapped at 7.5 watts, the 4.2t’s at 15 watts and the C10.1 is set at 8 ohms.

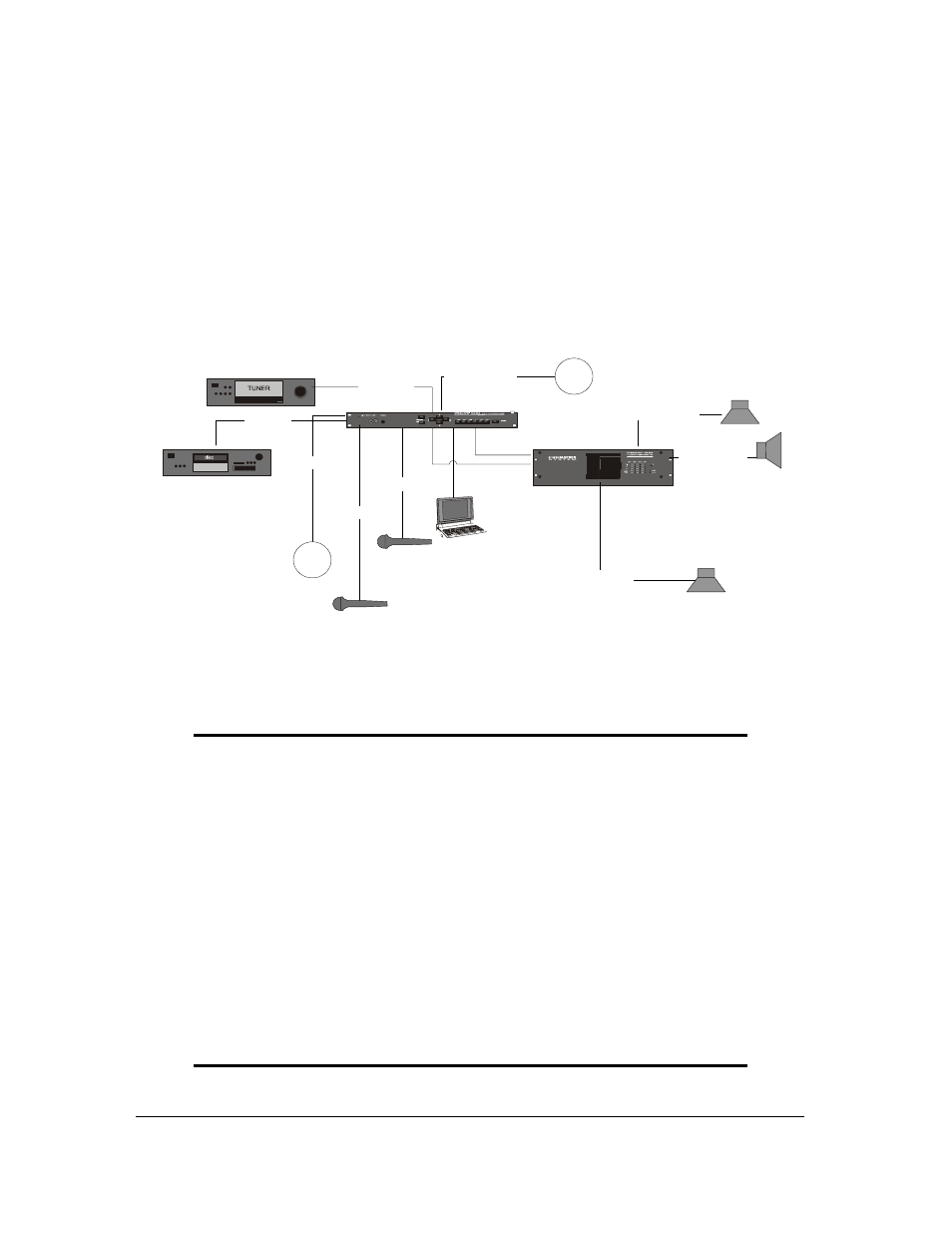

System Diagram
quipment List
C4
.2
DPA4410
4.2t
C10.
1
Main Restaurant
Sports Bar F.R.
Sports Bar Sub
Radio Tuner
CD Server
Hostess
DRM4000
Remote
Control
Remote
Control
Sports Bar
Main Restaurant
Office
E
Model Location Description Quantity
SPEAKER SYSTEMS
EVID 4.2t
Bar Surface Mount Speaker 2
EVID C4.2 Restaurant Ceiling Speaker 5
EVID C10.1 Bar Subwoofer 1
PROANNOUNCE EQUIPMENT
DRM4000
Office 8x2 Matrix Router 1
DPA4410 Office 4 Channel Amplifier 1
253 Office Paging Microphone 2
NRS90258 Office PC Interface 1
TBA Various Wall Controls 2
NRS90257 Office Power supply 1
OTHER RELATED EQUIPMENT
Various Rack/Misc 1
Various CD Player/Tuner 2
Various Wire 1
