4. OPTIONAL CALL/SEND CONTROL
a. The remote call is an option. Unless you ordered this as an option, it is not included with a standard
VPL. This optional device features remote UP and DOWN buttons.
The VPL can be operated in either direction regardless of where the Call/Send Control is
located.
The keyed power switch on the Control Panel must be in the Power On position to operate
the optional VPL with the Call/Send Control.
Do not lay cords on electrically conductive materials, such as metals.
Do not pull on cables.
Route cords so no one can trip over or be entangled in them.
Route cords so they are not exposed to risk of damage.
Remote calls must be mounted in accordance with applicable codes and in safe locations.

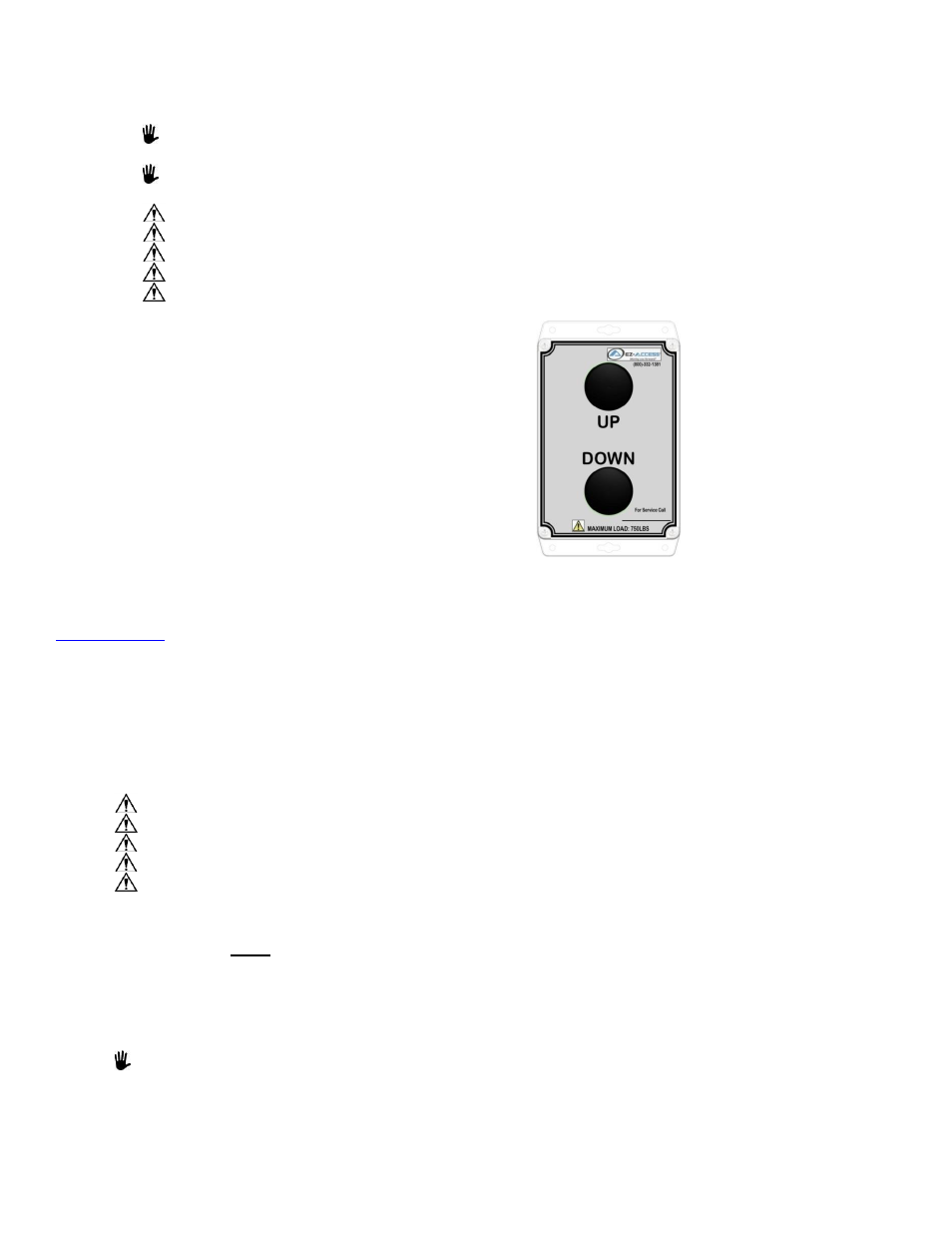

CALL/SEND CONTROL
FIG. 16.1
EMERGENCY OPERATION
1. A speed handle wrench (hand
crank) and a 5/16” socket are included with the VPL to allow the platform
to be moved up and or down in the event of power loss to the VPL motor. The crank is stored inside the
cover of the power head.
2. To use the
crank, first turn the keyed power switch to the Off position.
3. Unplug the VPL from AC power to avoid accidental starting and potential injury.
Failure to unplug the VPL from AC power, as described, could result in serious injury or death.
Do not pull on power cables.
Route cords so no one can trip over or be entangled in them
Route power cords so they are not exposed to the risk of damage.
The power cable must be plugged into properly grounded GFCI outlets only.
4. Remove the power head cover from the top of the VPL tower by removing the bolts on both sides of the
cover (FIG. 17.1).
5. Disconnect the white ground wire from the battery terminal (FIG. 17.2).
6. Remove the crank from inside the power head cover.
7. Place the 5/16
” socket onto the drive of the motor and crank to move the VPL. Cranking clockwise
(CW) when facing the hex drive end of the motor will raise the platform and cranking counter clockwise
(CCW) will lower the platform (FIG. 17.3).
It takes 28 turns to move the VPL platform
1”. For faster movement of the VPL platform, a
battery or corded power drill with the correct socket may be used instead of the hand crank to
drive the motor shaft.
