EXFO MaxTester Series - Manual (Page 7)

P/N: 1064921 November, 2013 7/8
15. Place the retaining plate back over the battery, ensuring that the holes
for the screws are well-aligned with those in the casing of the unit.
16. Using a screwdriver, put back the two screws securing the retaining
plate of the battery in place.
17. Hold the back of the unit by its sides and place it back on the unit
carefully.
18. If desired, put the unit’s stand back in place:
18a.Align the side of the stand blockers with the side of the anchor
eyelets, and then slide the blockers towards the eyelets until they
stop. There should be no gap between the blockers and the
eyelets.
18b.Using the provided hex key (“Allen” key), put the two top screws
back in place (in the center of the blockers).
18c. Hold the stand by its sides, and then slightly widen it to be able to
insert it into the blockers.
18d.Release the stand as soon as it is properly inserted into the
blockers.
18e.If desired, secure the stand in its retaining clip by pushing it
downwards.

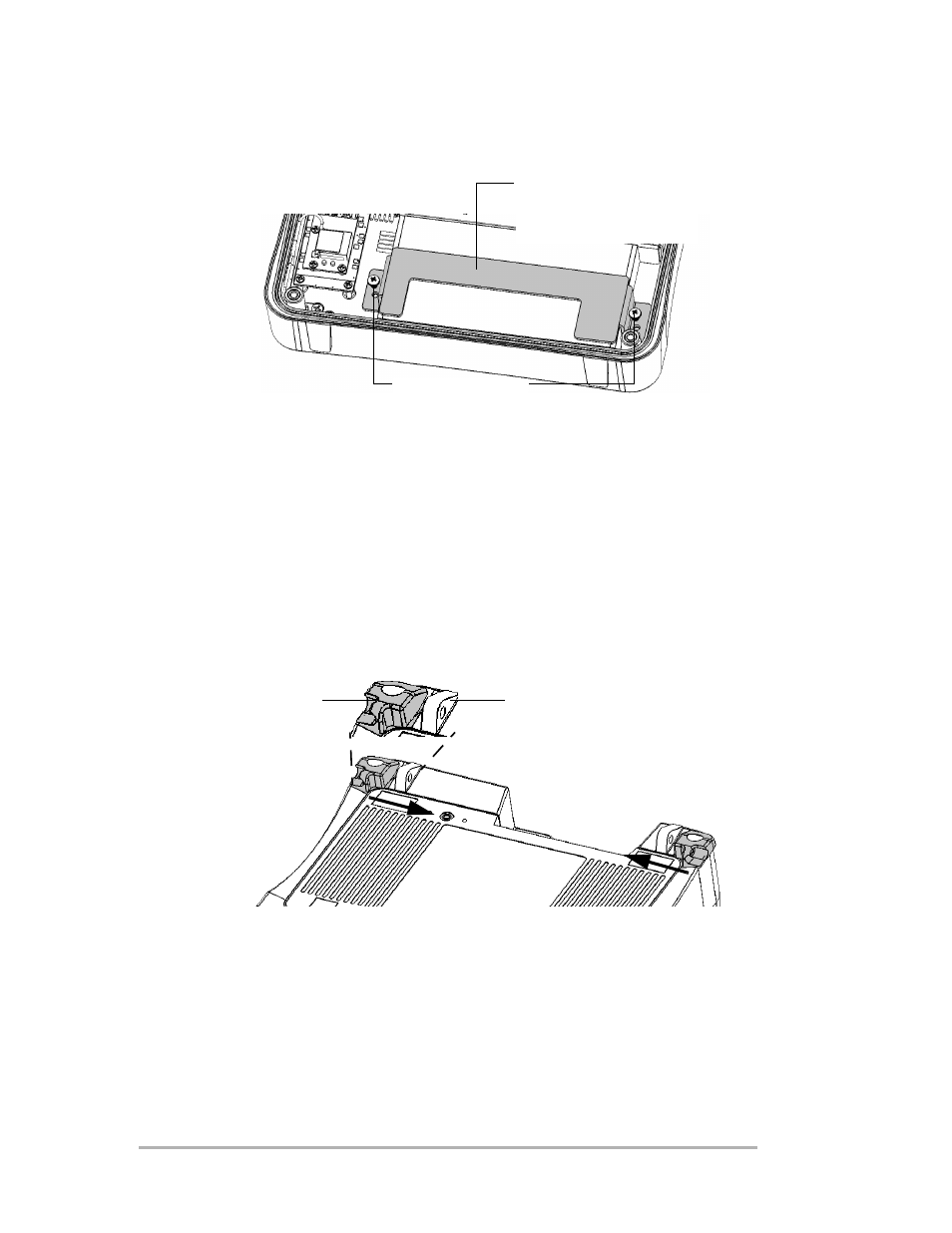

Screws securing the
retaining plate
Battery retaining plate
(shown in grey)
Stand blocker
(shown in grey)
Anchor eyelet
