12 - System Map: Left View
Concise User’s Guide
English
System Map: Left View

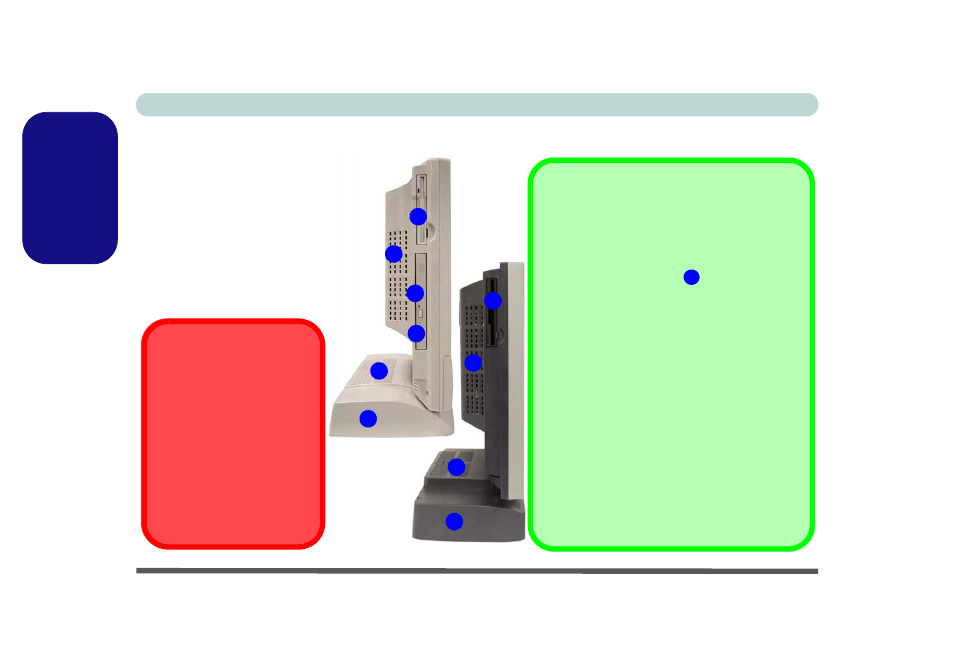

Figure 4 - Left View
1. Floppy Disk Drive Module*
2. Vent
3. Hard Disk Drive Bay
4. Optical (CD/DVD) Device Bay
(Model A Only)
5. Emergency Eject Hole (see
“CD/DVD Emergency Eject”
on page 9
)
Media Warning
Don’t try to remove a floppy
disk while the system is ac-
cessing it. This may cause
the system to “crash”.
Overheating
To prevent your computer
from overheating make sure
nothing blocks the vent/fan
intake while the computer is
in use.
Model A
Model B
*Floppy Disk Drive & Optional Modules
If you have either the optional 6-in-1 Card Read-
er, or the optional Video Capture Card, then the
optional module will replace the floppy disk drive
module in the slot at point
.
6-in-1 Card Reader Formats
The card reader allows you to use the most pop-
ular digital storage card formats:
• MMC (MultiMedia Card)
• SD (Secure Digital)
• MS (Memory Stick)
• SM (SmartMedia Card)
• CF (Compact Flash Types I & II)
• MD (IBM Microdrive)
Video Capture Card
The optional video capture card allows you to
watch TV, video conference and capture still im-
ages and video on your PC. The card has an S-
Video-In port and Audio/Video ports.
1
5
4
3
2
1
2
3
2
2
1
