F
1.
3.
2.
4.

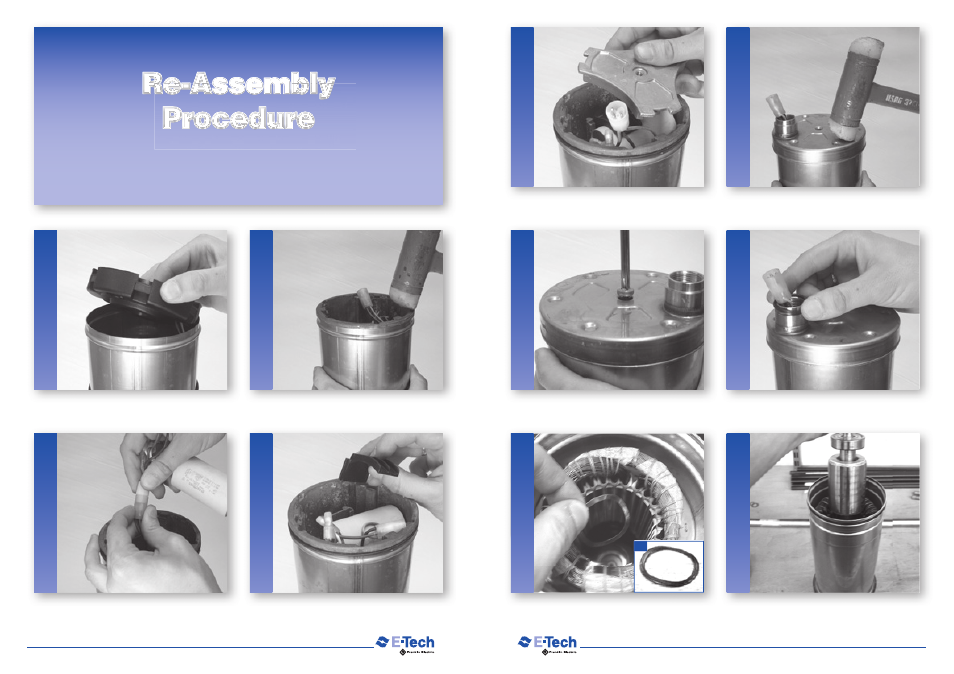

Position the electric wire protection at the top of a new
stator.
Connect the condensator cable to the stator connector.
Position the upper bering housing and slide through the
electric wire and connector from the stator. There may
be a second set of wires and connector when the unit is
equipped with a fl oater level control.
Position the plastic protection of the condensator.
7.
5.
9.
8.
6.
10.
Position the screw in tightly after having replaced the o-ring
with a new one.
Position the cover of the upper bearing housing.
Turn the motor housing up side down and position it on the
template fi xture. Position the compensating washer “F” at
the bottom of the bearing housing.
Fit a new o-ring as shown to the connector housing as
shown in the picture.
Position a new o-ring and fi t the upper motor cover making
sure not to damage the o-ring. Bring the wire’s connector
out.
After having replaced the ball bearings position the rotor by
making sure the bearing fi ts properly into its housing.
