Eskape ™ 300 Hardwater Series (69162)
Page 6
GetEskimo.com
HIGH PERFORMANCE ICE FISHING GEAR
1-800-345-6007
®
10. Attach the (2) outer backrest brackets (68322) and the plastic storage
tray to the bench seat rails using (4) provided 1/4-20 x 3-1/2” Phillips
head bolts, nyloc nuts and washers.
SEE fIGuRE 4.
11. Attach the (2) 25” padded seat assemblies (68006) and the (1) 12” pad-
ded seat assembly (68004) to the curled lip of front bench seat rail by
hooking the curled end of seat bracket into the curled end of bench seat
rail. Seats should be positioned so they will flip upwards to the front so
you can access gear underneath the seats in the storage tray.
NOTE: do not force the seat bracket into the bench seat rail. Loos-
ening the seat bracket and adjusting the position of it from front
to back will allow for the adjustment needed to hook the seat into
the seat rail. You may want to keep it loose while you hook the seat
into the seat rail and then retighten the seat bracket afterwards.
You may even need to remove the seat brackets from the seat and
hook them into the seat rail individually, then reattach the seat to
the seat brackets.
Once your shelter is completely assembled, you can adjust the seat
bracket position on the seat using the slots for desired positioning.
doing this will allow you to adjust how much travel the seats will
have when flipping up.
12. Attach the (2) 25” metal backrest frames (68348) and the (1) 12” metal
backrest frame to the backrest brackets using (2) provided 1/4-20 x 1-1/4”
Phillips head bolts, (2) 1/4-20 x 2-1/4” Phillips head bolts and (4) nyloc
nuts.
SEE fIGuRE 4.
13. you may now tighten all nut & bolt assemblies. Be sure not to over
tighten or crush tubing when tightening!
14. Attach (2) removable 25” backrest cushions (68009) and (1) removable
12” backrest cushion (68008) to the backrest frames and secure with
Velcro.
WARNING
BE SuRE SEAT PAD & BuCKlES ARE SECuREly AND COR-
RECTly ATTACHED TO PREVENT ACCIDENTAl REmOVAl!

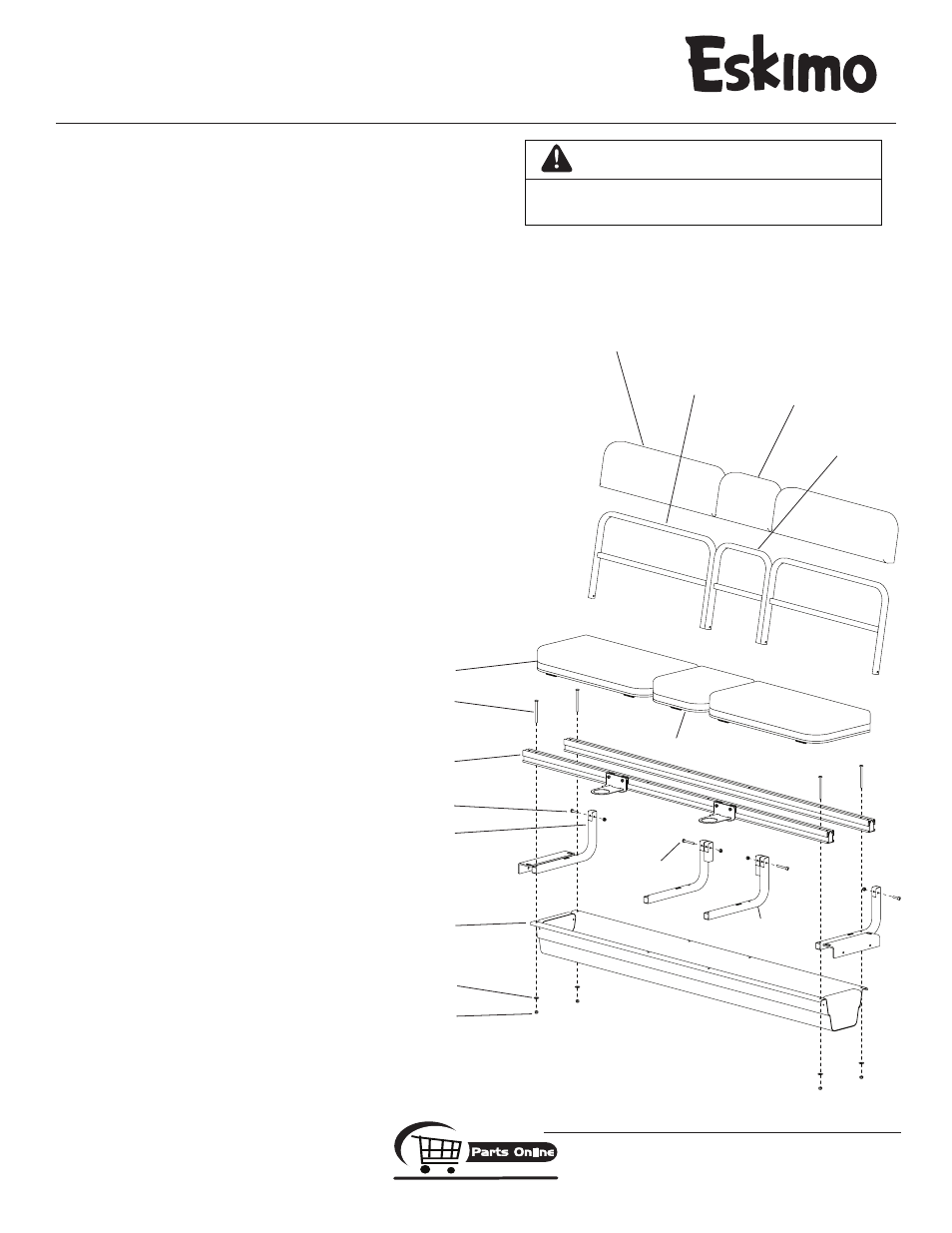

fIGuRE 4
(2) 25” padded seats
(4) 1/4” x 3-1/2” bolts
bench seat rails
(2) 1/4” x 1-1/4” bolts
(2) outer backrest brackets
plastic storage tray
all washers are 1/4”
all nuts are 1/4”
(1) 12” backrest cushion
(2) 25” backrest cushions
(1) 12” backrest
frame
(2) 25” backrest
frames
(1) 12” padded seat
(2) 1/4” x 2-1/4”
bolts
(2) backrest
brackets
