Eskape ™ 300 Hardwater Series (69162)
HIGH PERFORMANCE ICE FISHING GEAR
®
Page 5
GetEskimo.com
1-800-345-6007
6. Slide the (2) pre-assembled rod holder assemblies (68449) into the T-slot
of either bench seat rail. Doing so makes this bench seat rail the front rail
and will be positioned beneath your legs during use.
7. Attach (2) bench seat rails (68337) to the top side of seat kit mount brack-
ets using (4) provided 1/4-20 x 2-1/2” bolts, nyloc nuts and (4) washers.
SEE fIGuRE 3A. Make sure the rail with the rod holder assemblies are
in front, so they will be positioned beneath your legs during use.
8. Attach (2) storage tray end caps (68156) to each end of the storage tray
(68158) using (8) provided 10-24 x 5/8” bolts, nyloc nuts and (16) 3/16”
washers.
SEE fIGuRE 3B.
9. Attach the seat brace (68027), the left backrest bracket (68310), the right
backrest bracket (68323) and the plastic storage tray to the center set of
holes on bench seat rails using (2) provided 1/4-20 x 3-1/2” Phillips truss
head bolts, (2) 1/4-20 x 4-1/2” Phillips truss head bolts, (4) nyloc nuts and
(4) washers.
SEE fIGuRE 3A. The long bolts should be used in the rear
holes since the added length is needed to go through the seat brace.
NOTE: Seat brace will fit under the lip of plastic storage tray.

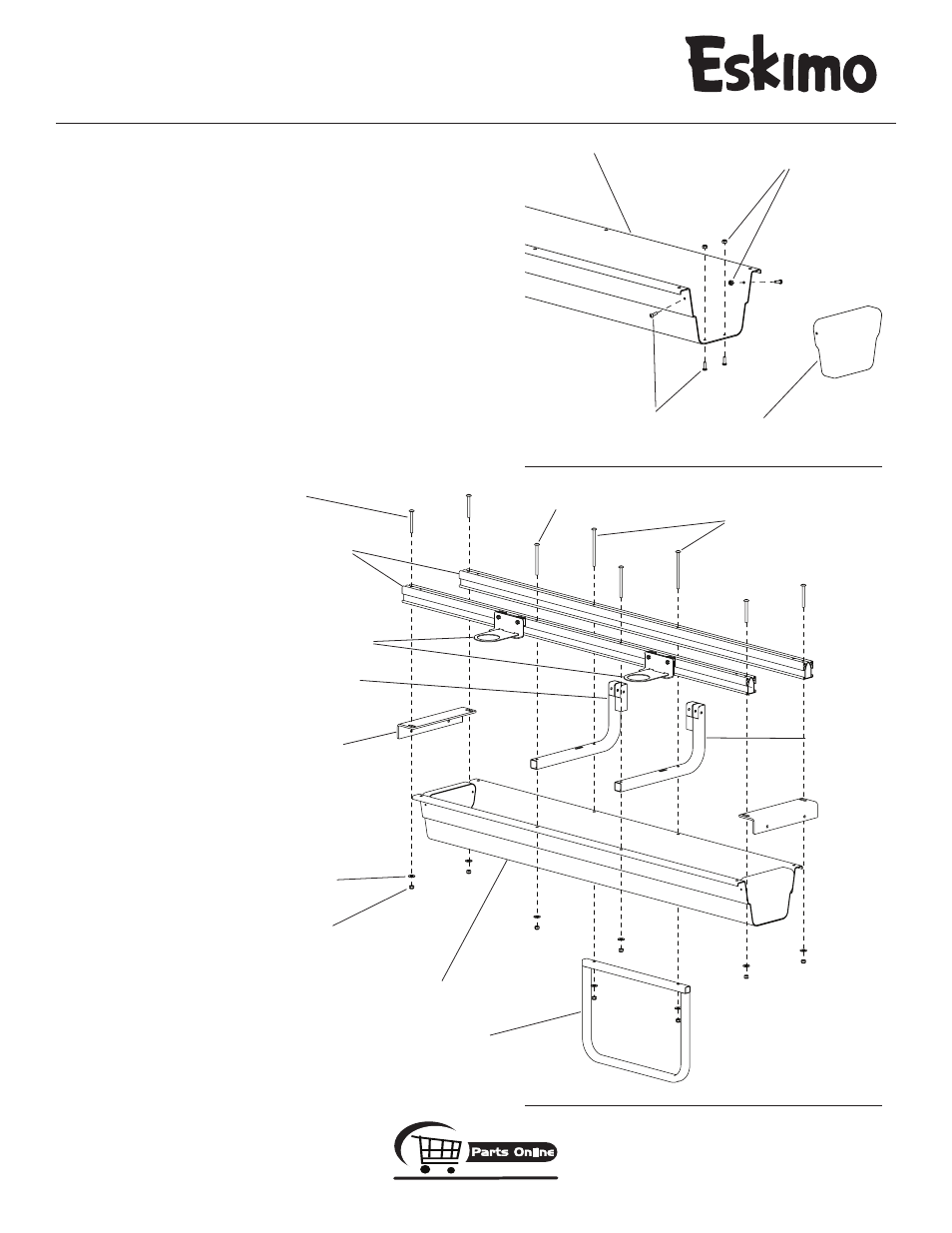

fIGuRE 3A
bench seat rails
all nuts are 1/4”
all washers are 1/4”
seat mount brackets
(4) 1/4” x 2-1/2” bolts
fIGuRE 3B (left side shown)
plastic storage tray
rod holder assemblies
(2) 1/4” x 3-1/2” bolts
(2) 1/4” x 4-1/2” bolts
left backrest
bracket
right backrest bracket
seat brace
plastic storage tray
(8) 10-24 nuts
(8) 10-24 x 5/8” bolts
storage tray end caps
