Eskimo 69162 - Manual (Page 13)

Eskape ™ 300 Hardwater Series (69162)
HIGH PERFORMANCE ICE FISHING GEAR
®
Page 13
GetEskimo.com
1-800-345-6007
2
21
11
19
10
18
11
19
9
9
8
6
4
5
17
14
16
22
15
3
7
13
1
12
15
20

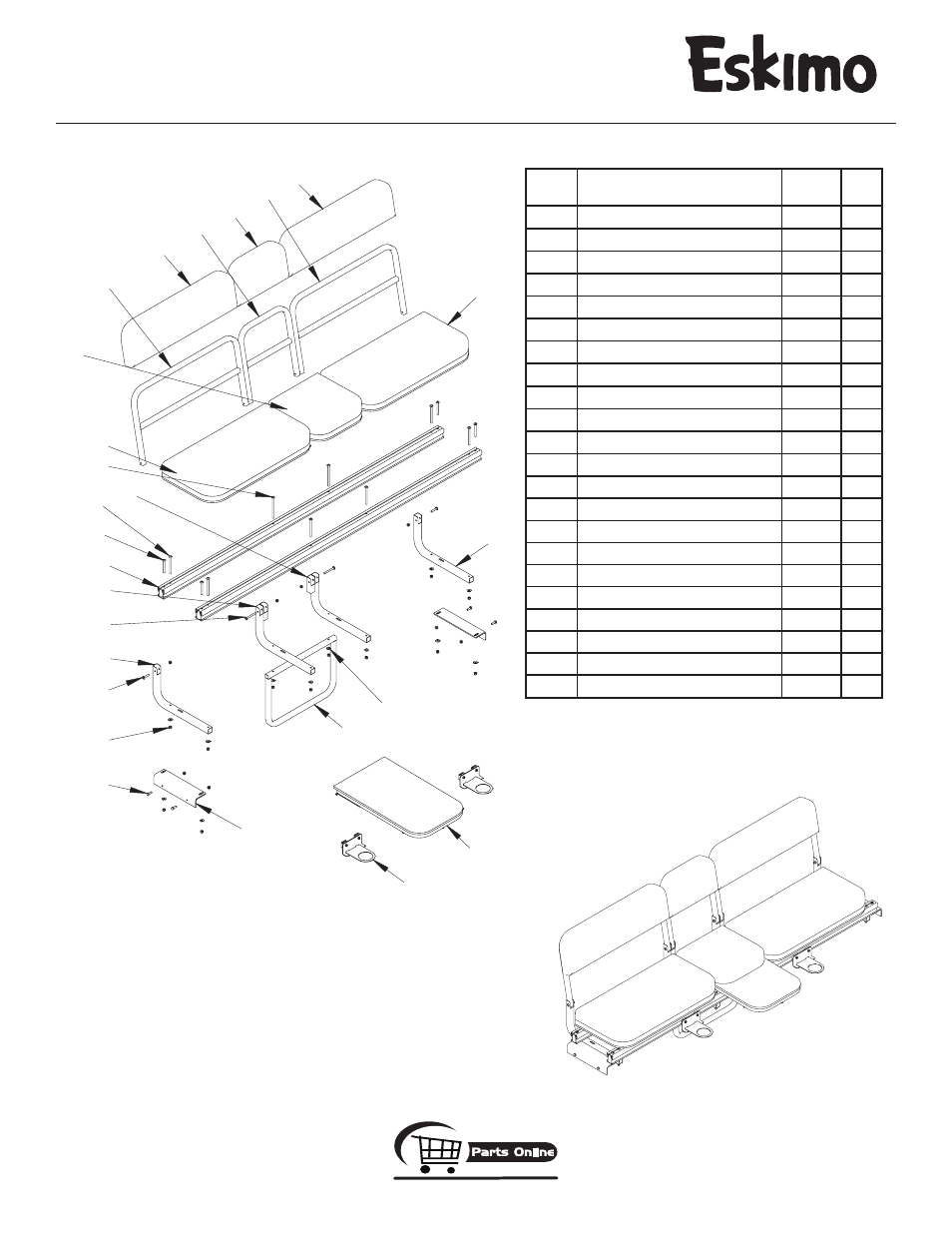

ESKAPE 300 SEAT PARTS
REf.
NO. DESCRIPTION
PART
NO. QTy.
1 BOLT 1/4-20 X 3/4” HH gR5 8930 4
2 WASHER 1/4” 48261 12
3 BOLT, 1/4-20 X 1-1/4” PTH gR2 67400 2
4 BOLT 1/4-20 X 3-1/2” PTH gR5 67402 6
5 BOLT 1/4-20 X 4-1/4” PTH gR5 67403 2
6 BOLT 1/4-20 X 2-1/2” PTH gR5 67430 4
7 NUT 1/4-20 HEX NYLOC 67538 20
8 SEAT ASSEMBLY, 12” RED 68004 1
9 SEAT ASSEMBLY, 25” RED 68006 2
10 BACKREST PAD, 12” RED 68008 1
11 BACKREST PAD, 25” RED 68009 2
12 SEAT BRACE WELDMENT 68027 1
13 BRACKET, SEAT MOUNT 68304 2
14 BRACKET, BACKREST LEFT 68310 1
15 BRACKET, BACKREST OUTER 68322 2
16 BRACKET, BACKREST RIgHT 68323 1
17 RAIL, BENCH SEAT 68337 2
18 BACKREST WELDMENT, 12” 68345 1
19 BACKREST WELDMENT, 25” 68348 2
20 TABLE 68447 1
21 ROD HOLDER ASSEMBLY 68449 2
22 BOLT 1/4-20 X 2-1/4” PTH gR5 69279 2
