5.0 Maintenance
The CP-60 has no specific preventative maintenance requirements. Entering the maintenance menu, as outlined in Section 5.2
may change instrument configurations.
5.1 Cleaning Instructions
C AUTION : Never spray a cleaning solution on the surfaces of the CP-60 .
Clean the exterior of the CP-60 enclosure with a mild soap solution on a clean, damp cloth. Do not soak the cloth with solution
so that moisture drips onto, or lingers on, external surfaces.
Under no circumstances should organic solvents such as paint thinner be used to clean instrument surfaces.
5.2 Maintenance Menu CP-60
The maintenance menu diagram is shown in Figure 8 Maintenance Menu Flow Chart. From the operational display, press
the
OPTION switch until; " Enter MAINTENANCE Menu " is displayed.

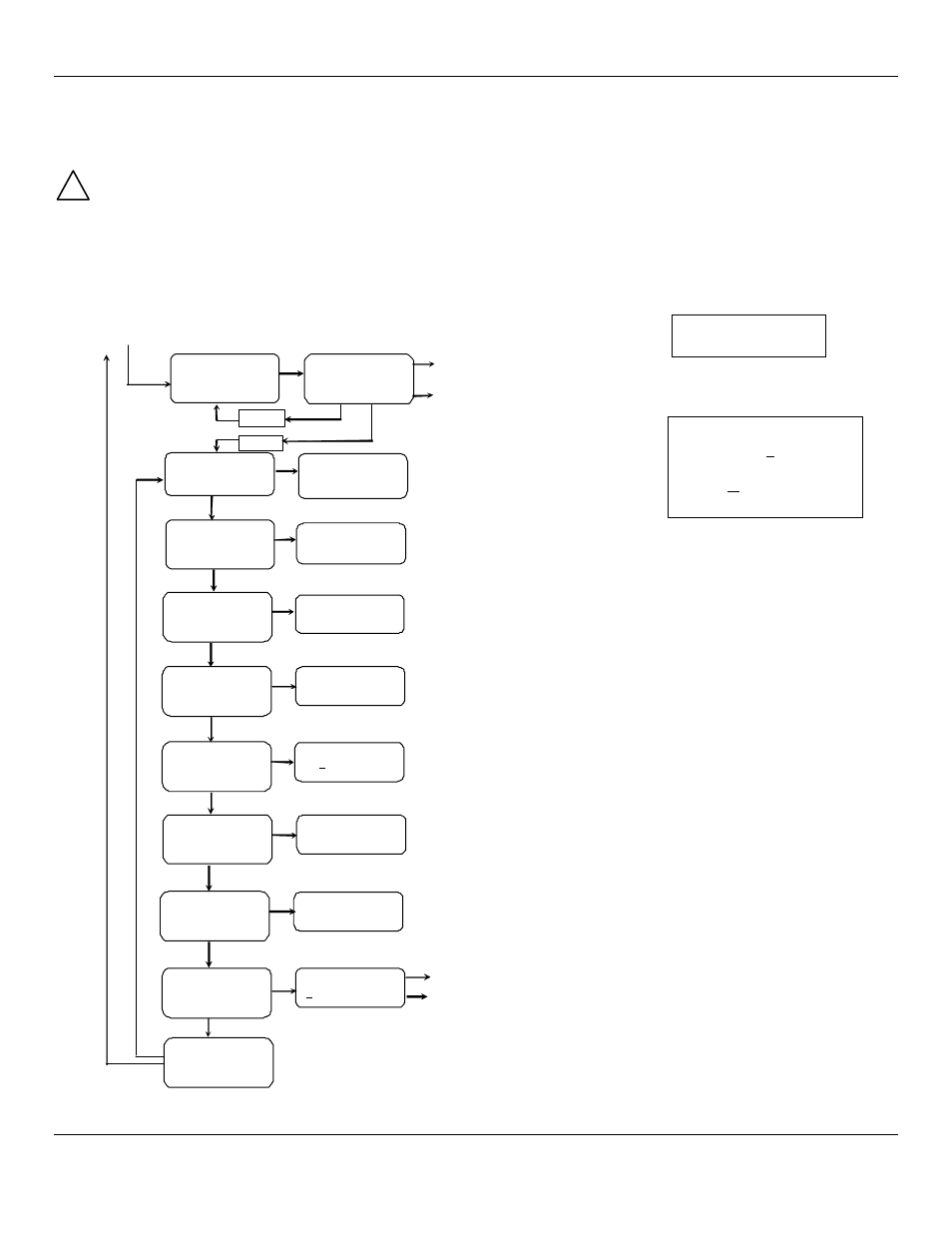

Figure 8: CP-60 Maintenance Menu Flow Chart
O = Press Option
S = Press Select
!
Note: When in maintenance
mode the “_” indicates
the location of the cursor,
the “
■” block indicates a
non-used location.
O
S
MAINTENANCE MENU
Exit maint menu
Press O PTION to return to top of maintenance menu.
Press S ELECT to return to ope rational menu.
See Section 5.3.8 for instructions on how to exit Maintenance Menus.
To/From
Operational
Display
From Operational Menu
Press O PTION
O
S
MAINTENANCE MENU
Set New Password
Password
XXXX
O
S
Changes digit indicated by underscore cursor
Locks underscored digit and moves cursor to next digit
See Section 5.3.7 for changing password instructions.
O
S MAINTENANCE MENU
Set Alarm1
Alarm 1
Select: XX
Press O PTION until the gas alarm to be Set is displayed
See Sec tion 5.2.2 for setting alarm s instructions.
O
S
Alarm 2
Select: XX
MAINTENANCE MENU
Set Alarm2
Press O PTION until the gas alarm to be Set is displayed
See Section 5.2.2 for setting alarms instructions.
O
S MAINTENANCE MENU
Set Alarm Delays
Alarm Delay
Select: XX
Press O PTION until the gas alarm delay to be Set is displayed
Se e Section 5.2.3 for setting alarms instructions.
O
S MAINTENANCE MENU
Configure Alarms
Ch 1, 2, 3
R1 L
Pressing O PTION changes letter indicated by underscore cursor
See Section 5.2.4 for configuring relay instructions.
O
S
MAINTENANCE MENU
Relay Failsafes
Relay Failsafes
R:1 Failsafe ON
Pressing O PTION changes Failsafe setting from ON to OFF
See Section 5.2.5 for configuring relay failsafe instructions.
O
S MAINTENANCE MENU
mA Output Span
mA Output Span
Select: (Gas)
Press O PTION until the gas span to be Set is displayed
See Section 5.2.6 for output span instructions.
S
O
S
Enter Password
0000
Changes digit indicated by underscore cursor
Locks underscored digit and moves cursor to next digit
O (6)
Valid
Invalid
Enter Maint Menu
Press O PTION until gas to be Set-Up is displayed
See Section 5.2.1 for transmitter set-up instructions.
Scale mA Xmtrs
Select (Gas)
O
S MAINTENANCE MENU
Scale mA Xmtrs
