• DSD format on BNC connectors RAW DSD / SDIF-3
Conversion from DSD to PCM
“Empty” switch positions are ignored.
DSD input can be on BNC or optical connectors. Appropriate selections have
to be made in the CLOCK and DIGITAL AUDIO IN sections (OPTIC / BNC).
DSD data rate at input can be either 64FS or 128FS as selected by
Oversampling ratio.
Note: 2FS PCM generation is only possible from 64FS DSD and not from 128FS.
Optional selections:
• Wordlength of PCMOUT 16bit / 24 bit
• The PCM data can also be routed to the BNC outputs (SDIF-2 format) with
the DSD / PCM switch, in case the DSD input is optical.

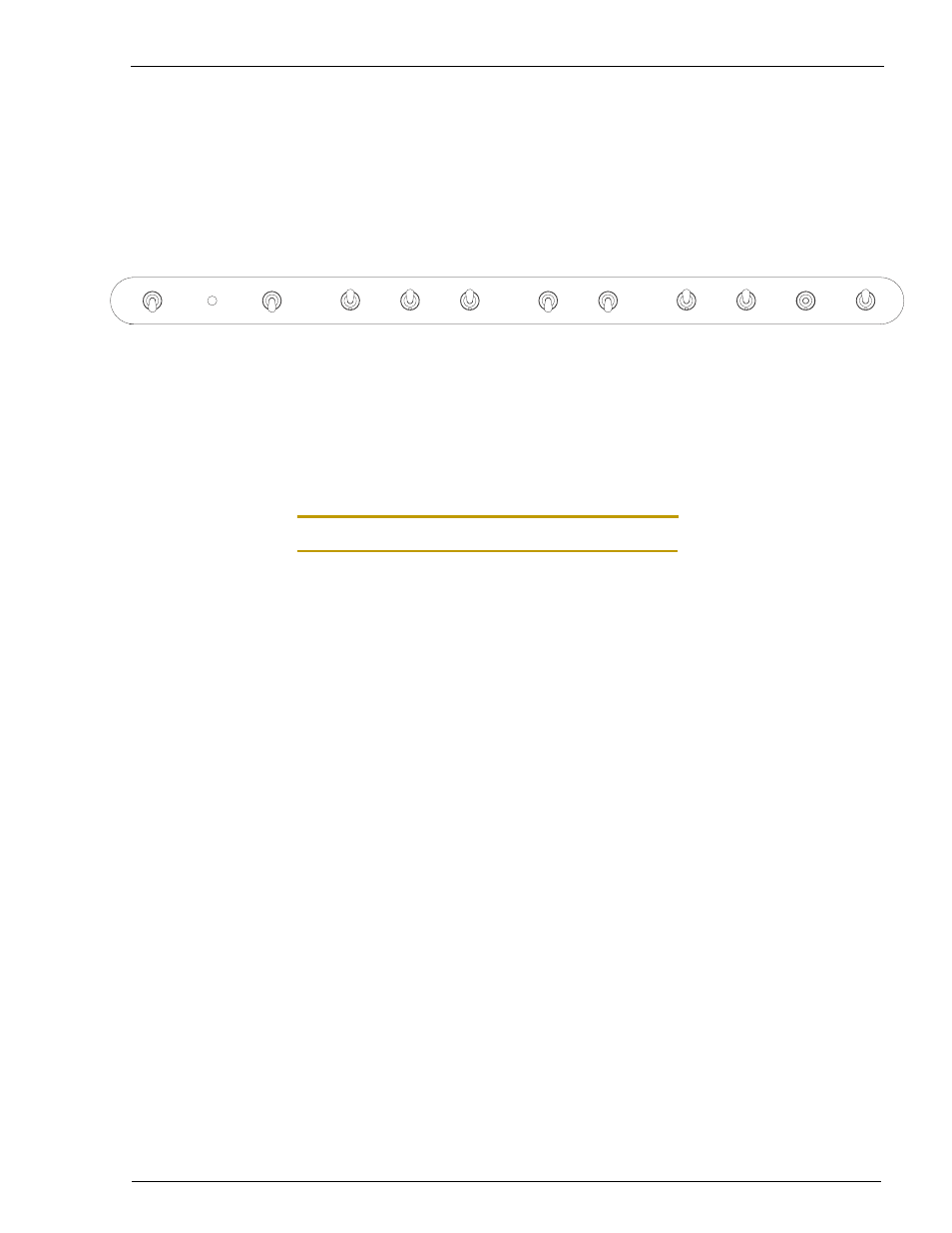

EXTERNAL
LOCK BNC
OPTIC
EXT
INT
CLOCK
BASE PCM OVERS.
128
64
2 FS
1 FS
48
44.1
SAMPLE RATE
DATA-DIR
IN
OUT
BNC
OPTIC
PCM OUT OPTIC BNC
RAW DSD
SDIF-3 PCM
DSD
2 24 BIT
16 BIT
INTERFACE FORMAT DIGITAL AUDIO IN
