-4-

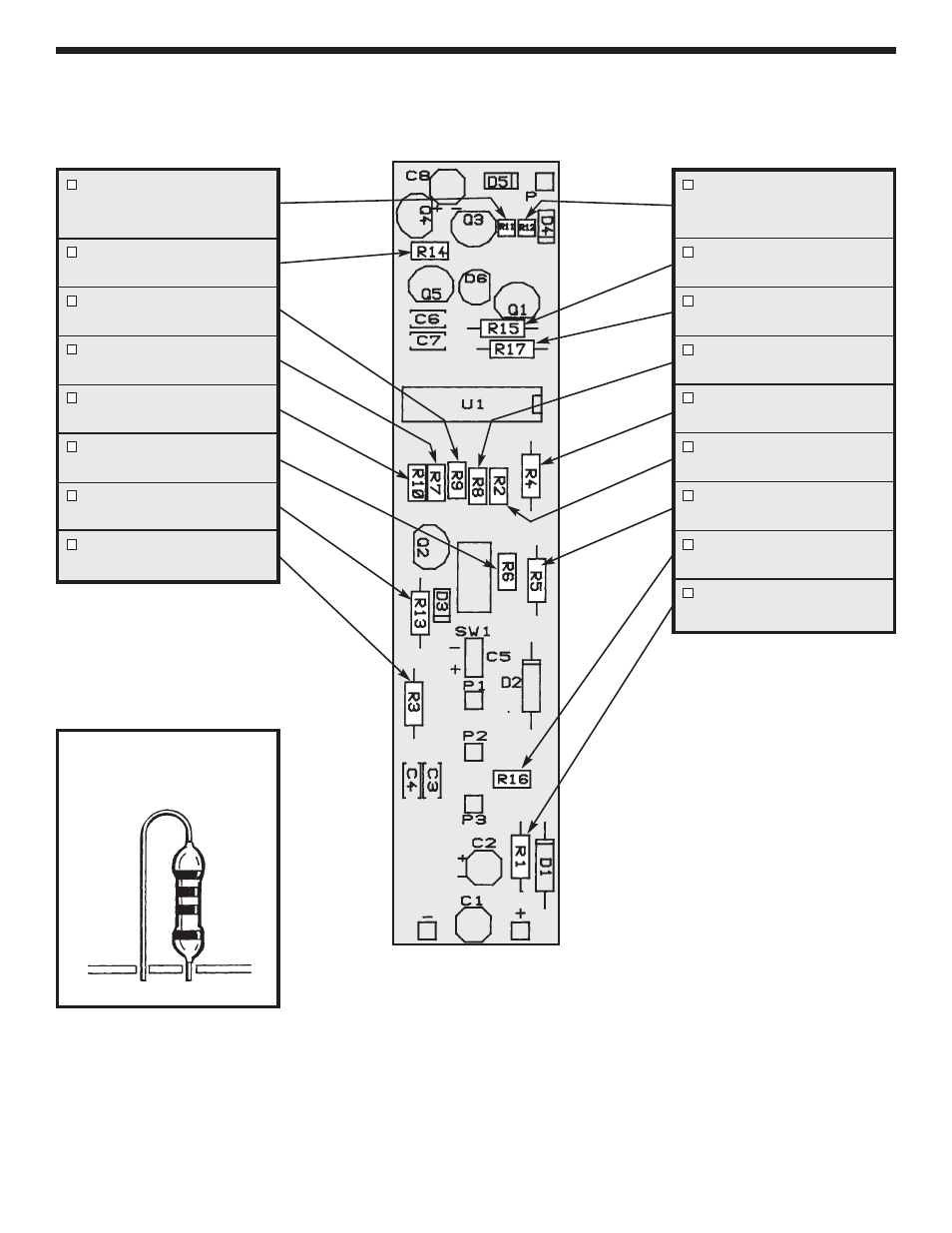

ASSEMBLE COMPONENTS TO THE PC BOARD
Refer to the top legend on the PC board, install and solder the following resistors. All are 1/4 watt, 5% tolerance.
(Resistors R11 and R12 install vertical).
R11 - 2k
W
Resistor
(red-black-red-gold)
(see Figure 1)
R14 - 20k
W
Resistor
(red-black-orange-gold)
R9 - 100k
W
Resistor
(brown-black-yellow-gold)
R7 - 100k
W
Resistor
(brown-black-yellow-gold)
R10 - 100k
W
Resistor
(brown-black-yellow-gold)
R6 - 1.8M
W
Resistor
(brown-gray-green-gold)
R13 - 2k
W
Resistor
(red-black-red-gold)
R3 - 1.8M
W
Resistor
(brown-gray-green-gold)
R12 - 20k
W
Resistor
(red-black-orange-gold)
(see Figure 1)
R15 - 20k
W
Resistor
(red-black-orange-gold)
R17 - 470
W
Resistor
(yellow-violet-brown-gold)
R8 - 68k
W
Resistor
(blue-gray-orange-gold)
R4 - 10M
W
Resistor
(brown-black-blue-gold)
R2 - 100k
W
Resistor
(brown-black-yellow-gold)
R5 - 1M
W
Resistor
(brown-black-green-gold)
R16 - 100
W
Resistor
(brown-black-brown-gold)
R1 - 100
W
Resistor
(brown-black-brown-gold)
Stand resistor on end.
Figure 1
